Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

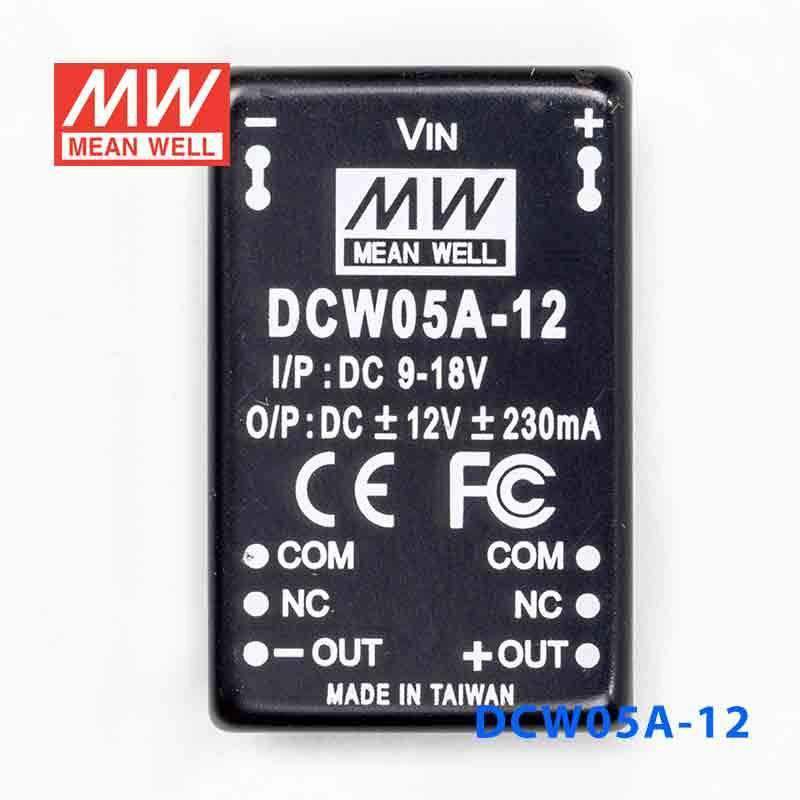

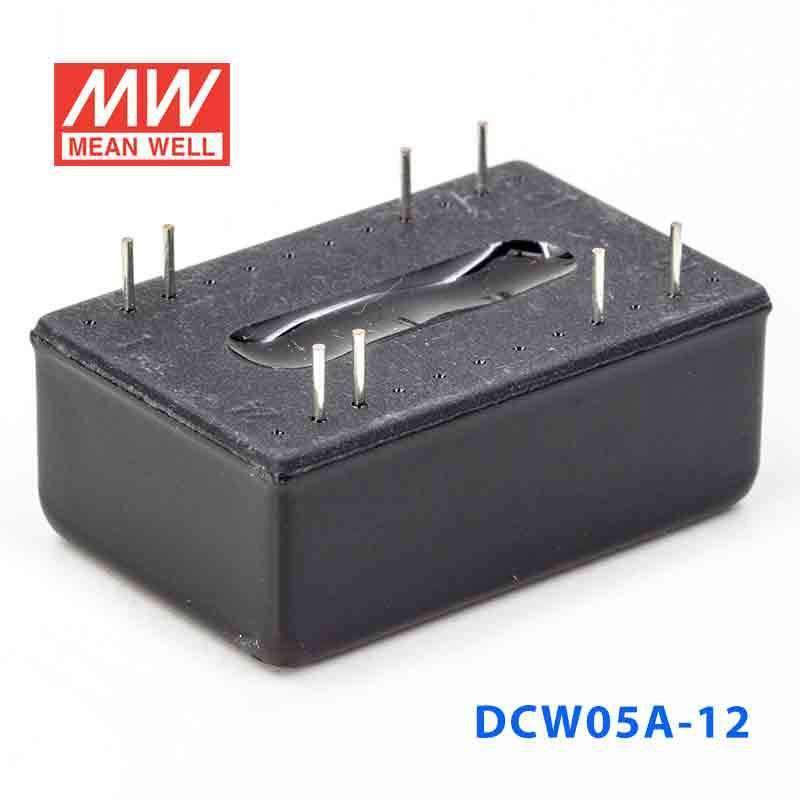

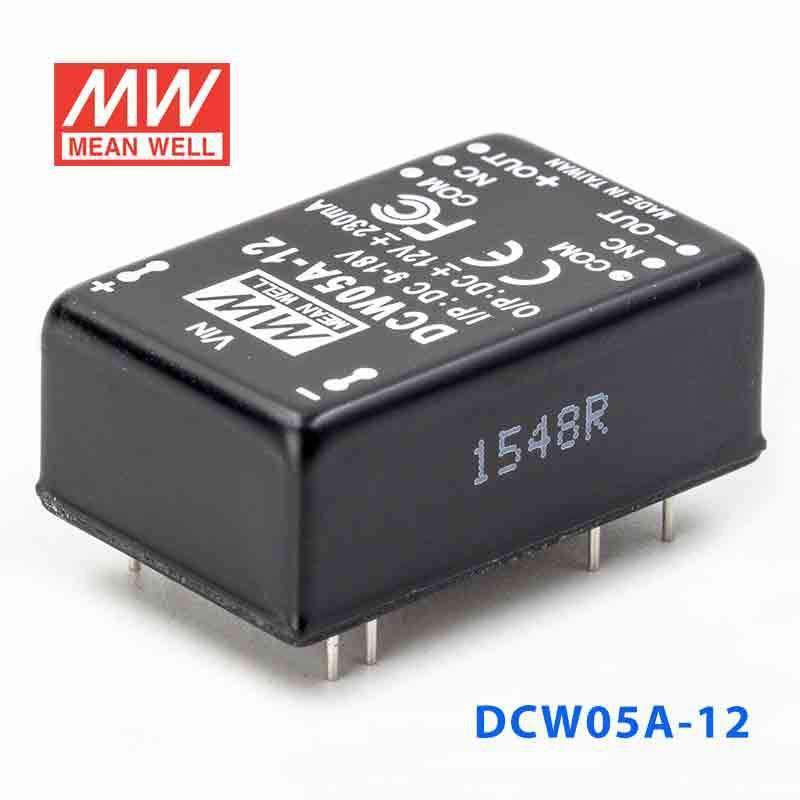

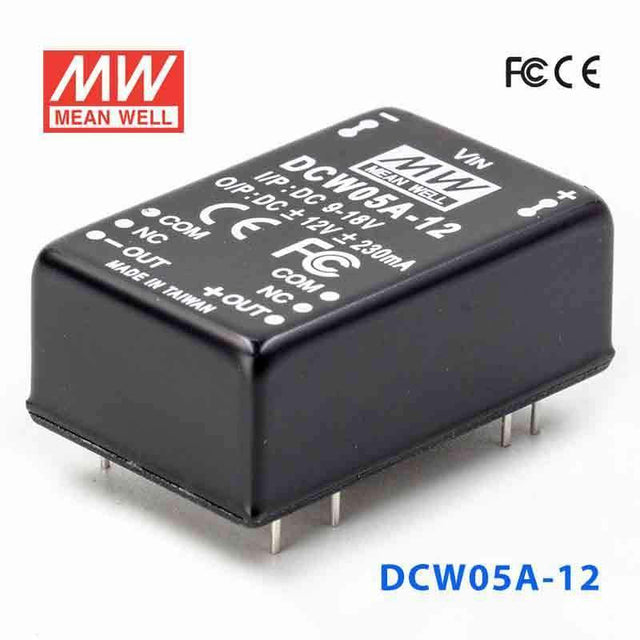

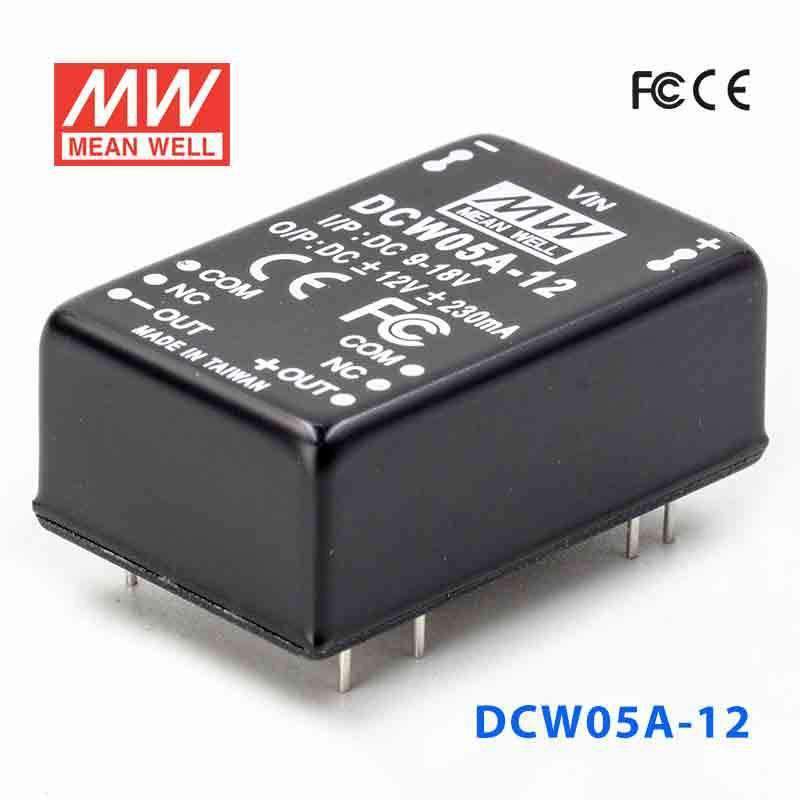

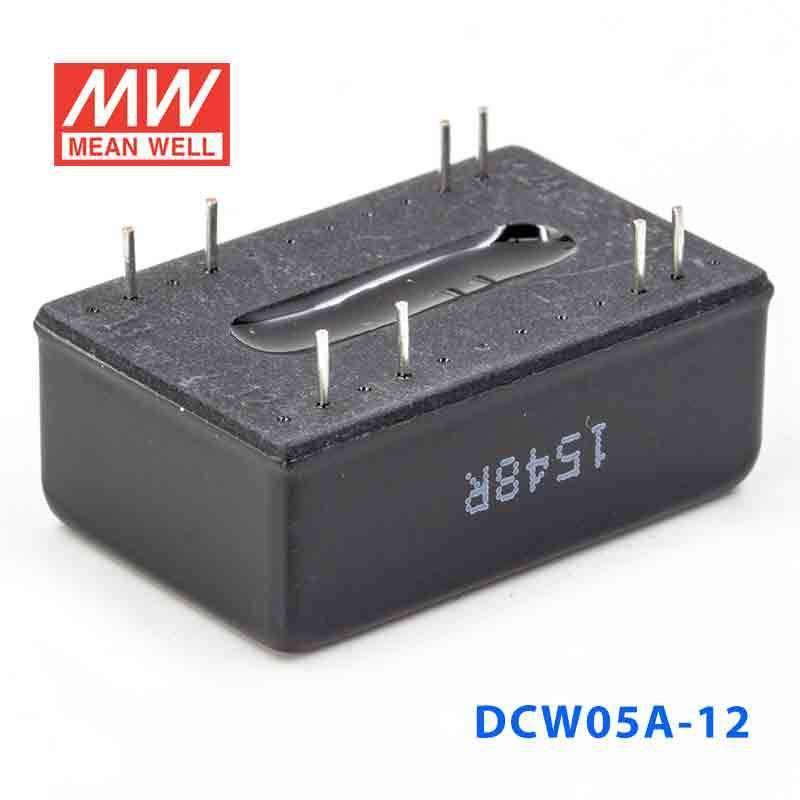

Mean Well DCW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out

SKU:

DCW05A-12

$16.76 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The DCW05A is a 5W Mean Well. power converter. operating from -40~+71℃.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+71℃
✓ Protections: Short circuit / Overload
✓ Safety approvals: ℃ -40 ~ +105 ± ℃ , 10 ~ 95% RH ℃ (0 ~ 50 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Input Voltage

9V~18V
Dimming Control

None
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb
