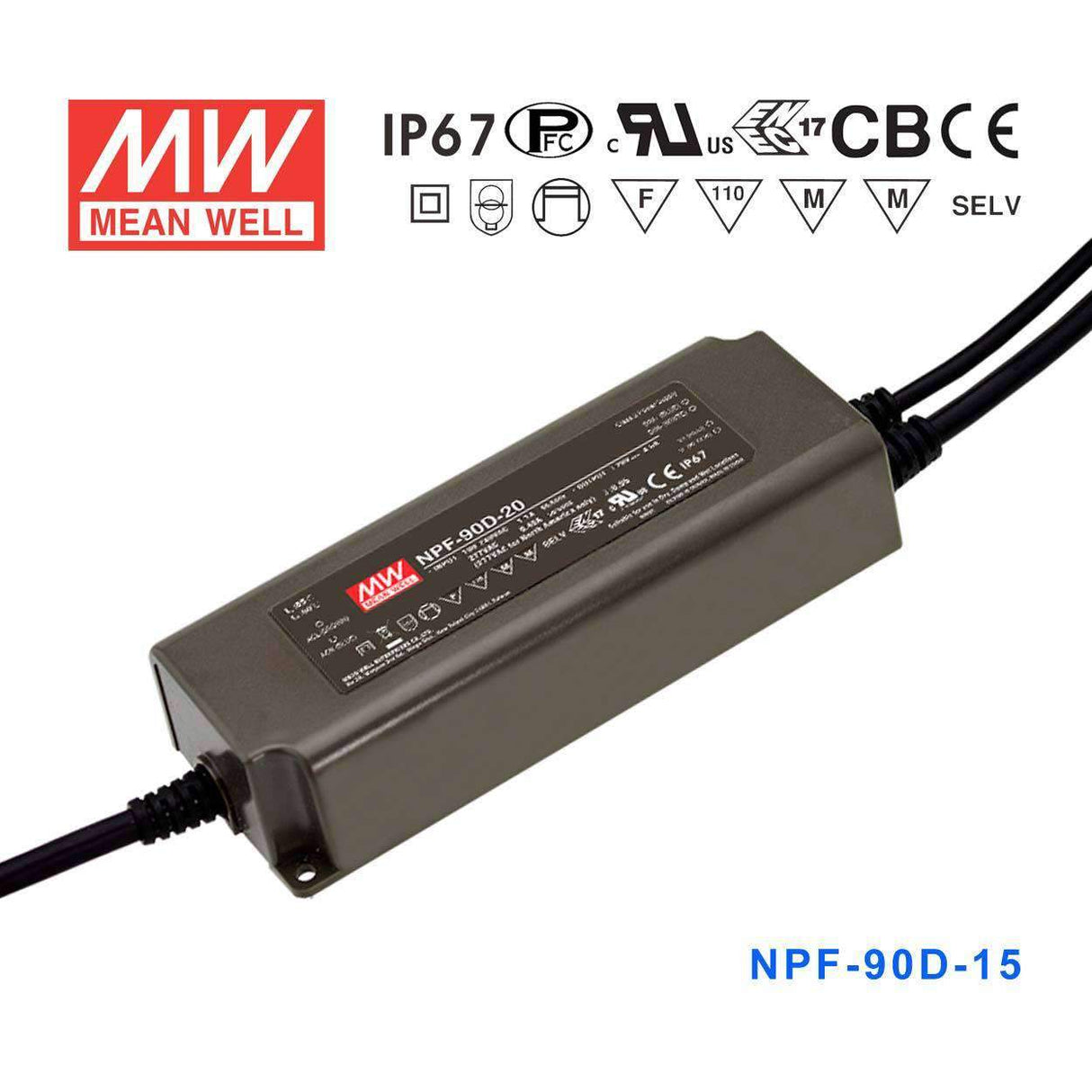

Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable
The NPF-90D is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
What dimming methods are built into the NPF-90D-15?
The NPF-90D-15 has built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control. All three methods are natively supported without additional hardware.
Can the NPF-90D-15 drive dimmable 15V LED modules in a commercial aquarium display?
The NPF-90D-15 delivers 90W at 15V with a constant current of 6A and a CC range of 9–15V, suitable for 15V LED modules used in commercial aquarium or vivarium displays where adjustable light intensity is needed. Its IP67 rating handles the high-humidity aquarium environment.
How does the NPF-90D-15 compare to the NPF-90D-12 and NPF-90D-20?
All three are 90W dimmable IP67 drivers with 3-in-1 dimming and the same 171.0 × 63.0 × 37.5 mm dimensions. They differ in output voltage and current: NPF-90D-12 is 12V at 7.5A, NPF-90D-15 is 15V at 6A, and NPF-90D-20 is 20V at 4.5A. Match the model to your LED module’s rated voltage.
Is the NPF-90D-15 rated for outdoor wet locations?
Yes. The NPF-90D-15 carries IP67 protection against dust and temporary water immersion and operates from -40°C to +85°C, making it suitable for direct outdoor wet location installation.
What certifications does the NPF-90D-15 carry?
The NPF-90D-15 holds CB, CCC, CE, EAC, ENEC, and UL certifications and includes a 5-year manufacturer warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $44.69 | View |
| Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $44.69 | View |
| Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $44.69 | View |
| Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $42.58 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $46.11 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | $44.69 | View |
