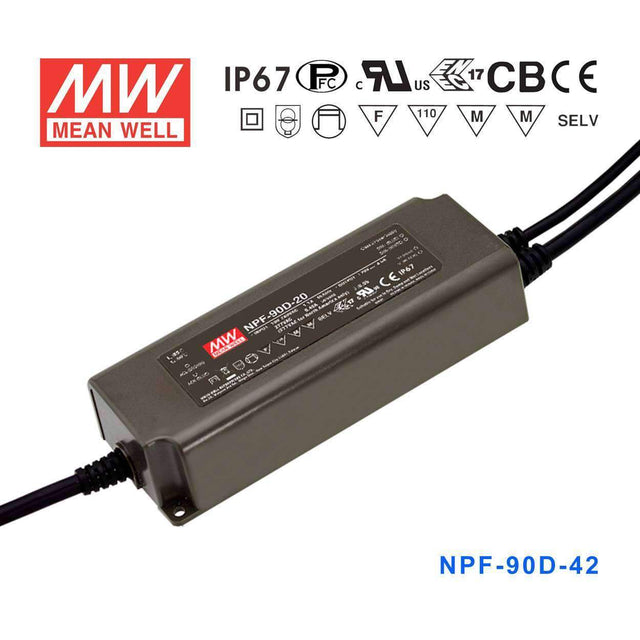

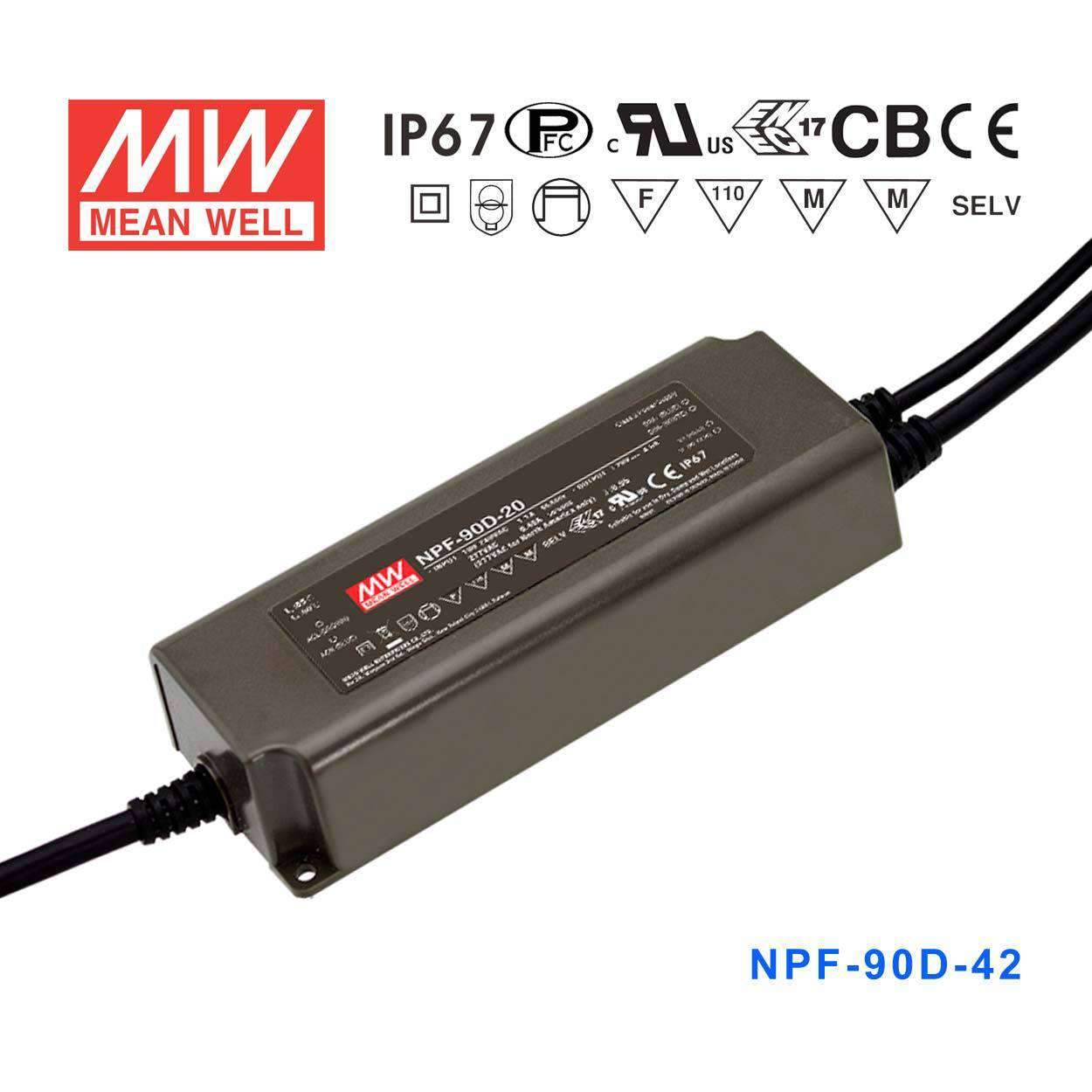

Mean Well NPF-90D-42 Power Supply 90W 42V

Name: Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable 2.15A
Brand: Mean Well
SKU: NPF-90D-42
Price: 44.69 USD
Availability: InStock

Overview

NPF-90D-42 is the model of this series: rated current 2.15A, rated power 90.3W, typical efficiency 90%.

NPF-90D series is a 90W AC/DC LED driver featuring the constant current mode output. NPF-90D operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40~+85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. NPF-90D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

Plastic housing with class II design
Built-in active PFC function
Class 2 power unit (except NPF-90D-12/15)
Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function: 3 in 1 dimming (dim-to-off)
Typical lifettime >50000hours
5 years warranty

Specifications

NPF-90D-42Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 2.15A
RATED POWER: 90.3W
CONSTANT CURRENT REGION: 25.2 ~ 42V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.3: 500ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.): 90%
AC CURRENT (Typ.): 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
STANDBY POWER CONSUMPTION: <0.5W

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 46 ~ 54V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved ;Design refer to BS EN/EN60335-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV);EAC TP TC 020

OTHERS

MTBF: 2749.1K hrs min. Telcordia SR-332 (Bellcore) ; 231.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*63*37.5mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.82CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The standby power consumption is specified for 230VAC.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

NPF-90D-42 BLOCK DIAGRAM — BLOCK DIAGRAM

NPF-90D-42 DIMMING OPERATION — DIMMING OPERATION

NPF-90D-42 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

NPF-90D-42 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

NPF-90D-42 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

NPF-90D-42 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NPF-90D-42 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Certificates6

UL Certificate (NPF-90D)(EN) PDF Download

CB Certificate (NPF-90D)(EN) PDF Download

EMC Certificate (NPF-90D)(EN) PDF Download

ENEC Certificate (NPF-90D)(EN) PDF Download

ErP Certificate(NPF-90D)(EN) PDF Download

CCC Certificate(NPF-90D)(CN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What dimming signals are supported by the NPF-90D-42?

The NPF-90D-42 has built-in 3-in-1 dimming that accepts a 10V PWM signal, 0–10VDC, or resistance between DIM+ and DIM-, all natively integrated without external dimming accessories.

Can the NPF-90D-42 power dimmable 42V LED fixtures in outdoor architectural lighting of a commercial building facade?

The NPF-90D-42 delivers 90.3W at 42V with a constant current of 2.15A and a CC voltage range of 25.2–42V, making it appropriate for 42V LED facade lighting modules where dimming for evening scenes or energy management is needed. Its IP67 rating supports direct outdoor mounting.

How does the NPF-90D-42 compare to the NPF-90D-36 and NPF-90D-48?

All three are 90W dimmable IP67 drivers with 3-in-1 dimming and the same 171.0 × 63.0 × 37.5 mm form factor, differing in output voltage: NPF-90D-36 is 36V at 2.5A (CC range 21.6–36V), NPF-90D-42 is 42V at 2.15A (CC range 25.2–42V), and NPF-90D-48 is 48V at 1.88A (CC range 28.8–48V).

Is the NPF-90D-42 appropriate for outdoor use in high-rainfall regions?

Yes. The NPF-90D-42 is IP67 approved for dust protection and resistance to temporary water immersion, and works at a case temperature (Tcase) of -40°C to +85°C with load derating at higher temperatures, covering humid, high-rainfall outdoor environments.

Does the NPF-90D-42 require an earth ground connection?

No. The NPF-90D-42's input cable has only two conductors, AC/L (brown) and AC/N (blue), with no earth (FG) wire, so there is no ground connection to make.
