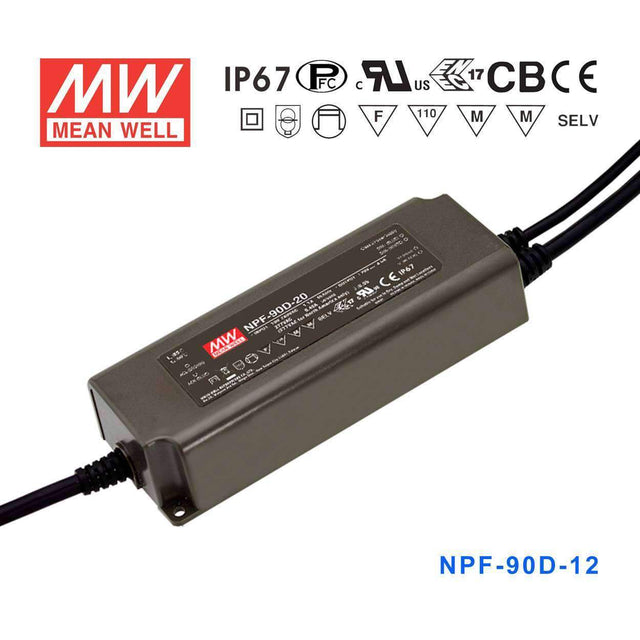

Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours

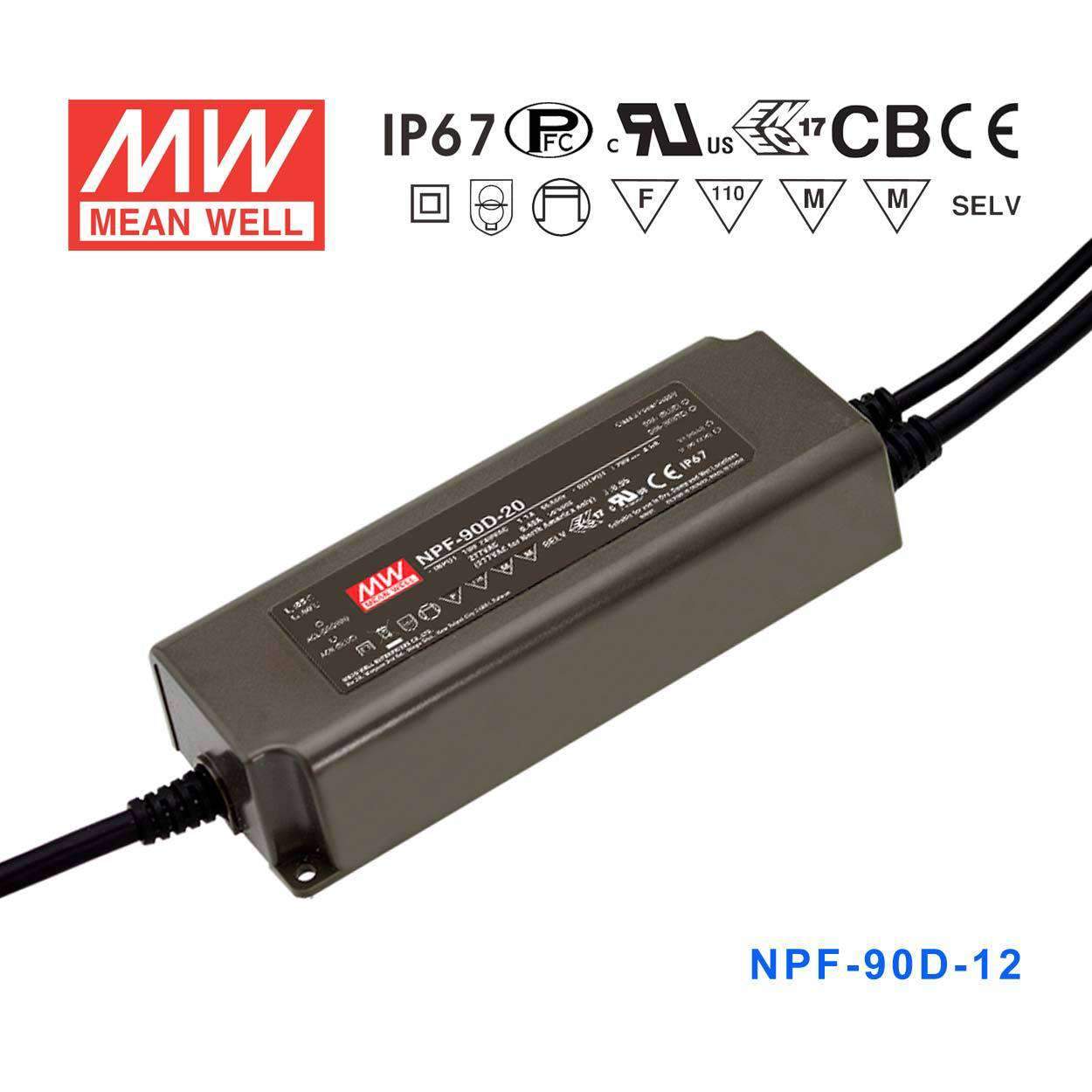

Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable
Description
Description
Features
| Fully isolated plastic case with IP67 level |
| Built-in active PFC function |
| Class 2 power unit [except for NPF-90(D)-12/15 & NPF-120(D)] |
| Standby power consu,ption <0.5W |
| Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance) for D type |
| Typical lifetime >50000hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | COLD START 60A(twidth=550 s measured at 50% Ipeak) at 230V μ AC; Per NEMA 410 |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Over temp. protection | Shut down output voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refers to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | NPF-90: SJTW 16AWGx2C (30cm) NPF-90D: SJTW 16AWGx2C (30cm)+ UL2464 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171 x 63 x 37.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage12 Volt
-
Rated Current7.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming signals does the NPF-90D-12 support?
The NPF-90D-12 includes built-in 3-in-1 dimming, accepting PWM signal, 0–10V analog, and resistance (potentiometer) control simultaneously, without requiring any external dimmer module.
Can the NPF-90D-12 power dimmable 12V LED arrays in a large-format retail illuminated ceiling?
Yes. The NPF-90D-12 delivers 90W at 12V with a constant current of 7.5A, which is sufficient for driving large-area 12V LED panel arrays in commercial retail ceiling applications. Built-in dimming allows integration with building lighting control systems.
How does the NPF-90D-12 differ from the NPF-60D-12 and NPF-120D-12?
All three are dimmable 12V IP67 drivers with built-in 3-in-1 dimming, but differ in power: NPF-60D-12 is 60W at 5A (150.0 × 53.0 × 35.0 mm), NPF-90D-12 is 90W at 7.5A (171.0 × 63.0 × 37.5 mm), and NPF-120D-12 is 120W at 10A. Select the wattage matching your LED load.
Is the NPF-90D-12 suitable for outdoor dimmable landscape lighting that must handle freezing temperatures?
Yes. The NPF-90D-12 is rated IP67 and operates from -40°C to +85°C, covering outdoor landscape installations in regions with hard freezes. Its dimming capability also allows integration with astronomical or occupancy-based outdoor control systems.
Does the NPF-90D-12 need a protective earth ground?
No. The NPF-90D-12 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal, so no earth grounding is required.
