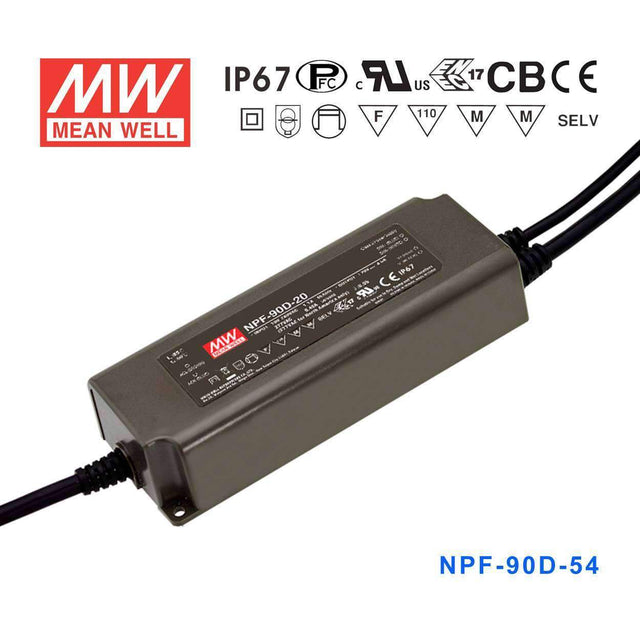

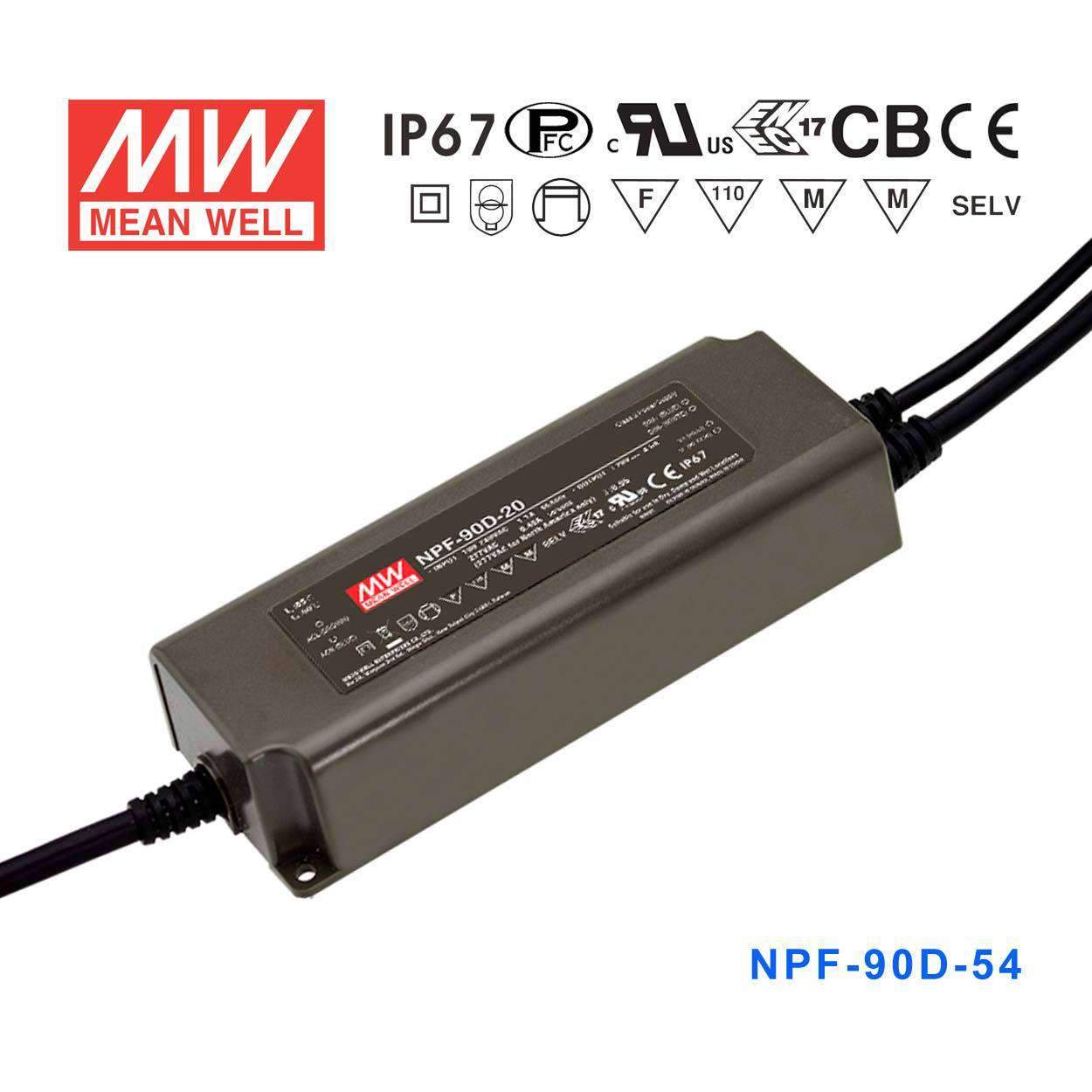

Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit (except NPF-90D-12/15) |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90.18 Watt
-
Output Voltage54 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming signals does the NPF-90D-54 accept?
The NPF-90D-54 integrates built-in 3-in-1 dimming, natively supporting PWM signal, 0–10V analog, and resistance control without external dimming accessories.
Can the NPF-90D-54 drive dimmable 54V LED modules in large outdoor high-mast lighting?
Yes. The NPF-90D-54 delivers 90.18W at 54V with a constant current of 1.67A and a CC voltage range of 32–54V, suitable for 54V constant-current LED modules used in high-mast or large-area outdoor lighting where dimming for energy savings or scene control is required. IP67 rating supports direct outdoor pole or fixture mounting.
How does the NPF-90D-54 compare to the NPF-90D-48 and NPF-90D-42?
All three are 90W dimmable IP67 drivers with built-in 3-in-1 dimming and a 171.0 × 63.0 × 37.5 mm form factor, differing only in output voltage and current: NPF-90D-42 is 42V at 2.15A, NPF-90D-48 is 48V at 1.88A, and NPF-90D-54 is 54V at 1.67A. Match the model to the LED string’s rated forward voltage.
Is the NPF-90D-54 suitable for outdoor installation in cold northern climates?
Yes. The NPF-90D-54 operates from -40°C to +85°C and carries IP67 waterproof protection, making it appropriate for direct outdoor installation in cold northern climates with heavy snow and sub-zero temperatures.
Does the NPF-90D-54 require a protective earth ground?
No. The NPF-90D-54 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal, so no protective earth connection is needed.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $44.69 | View |
| Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $44.69 | View |
| Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $42.58 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $46.11 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable | 90W | 15V | 6A | IP67 | $44.69 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | $44.69 | View |
