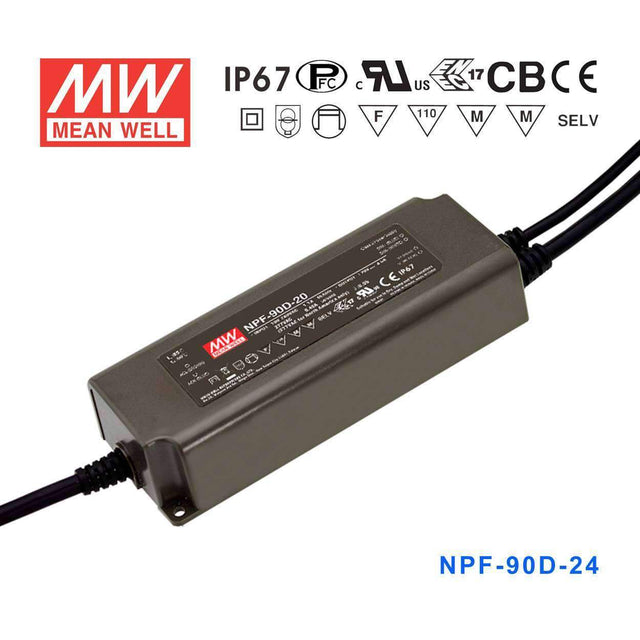

Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit (except NPF-90D-12/15) |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming signals does the NPF-90D-24 support?
The NPF-90D-24 features built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control simultaneously, enabling direct integration with most commercial lighting control platforms.
Can the NPF-90D-24 drive dimmable 24V LED high-bay fixtures in a large retail warehouse?
The NPF-90D-24 delivers 90W at 24V with a constant current of 3.75A and a CC range of 14–24V. Its built-in dimming makes it suitable for 24V LED high-bay fixtures where energy-saving dimming schedules are required, and its IP67 rating supports dusty warehouse environments.
What is the difference between the NPF-90D-24 and the NPF-90-24?
The NPF-90D-24 and NPF-90-24 share identical output (90W, 24V, 3.75A), IP67 rating, dimensions (171.0 × 63.0 × 37.5 mm), and weight (0.77 kg). The NPF-90D-24 adds built-in 3-in-1 dimming; the NPF-90-24 is fixed-output.
Is the NPF-90D-24 rated for outdoor installation in tropical climates with high humidity?
Yes. The NPF-90D-24 is IP67-rated for full dust and temporary water immersion protection, and its -40°C to +85°C operating range covers the high ambient temperatures common in tropical climates.
How many 24V, 30W LED modules can the NPF-90D-24 supply?
The NPF-90D-24 provides 90W total at 3.75A output current. It can supply three 30W modules (3 × 30W = 90W) as long as each module’s forward voltage is within the 14–24V CC range and the combined current does not exceed 3.75A.
