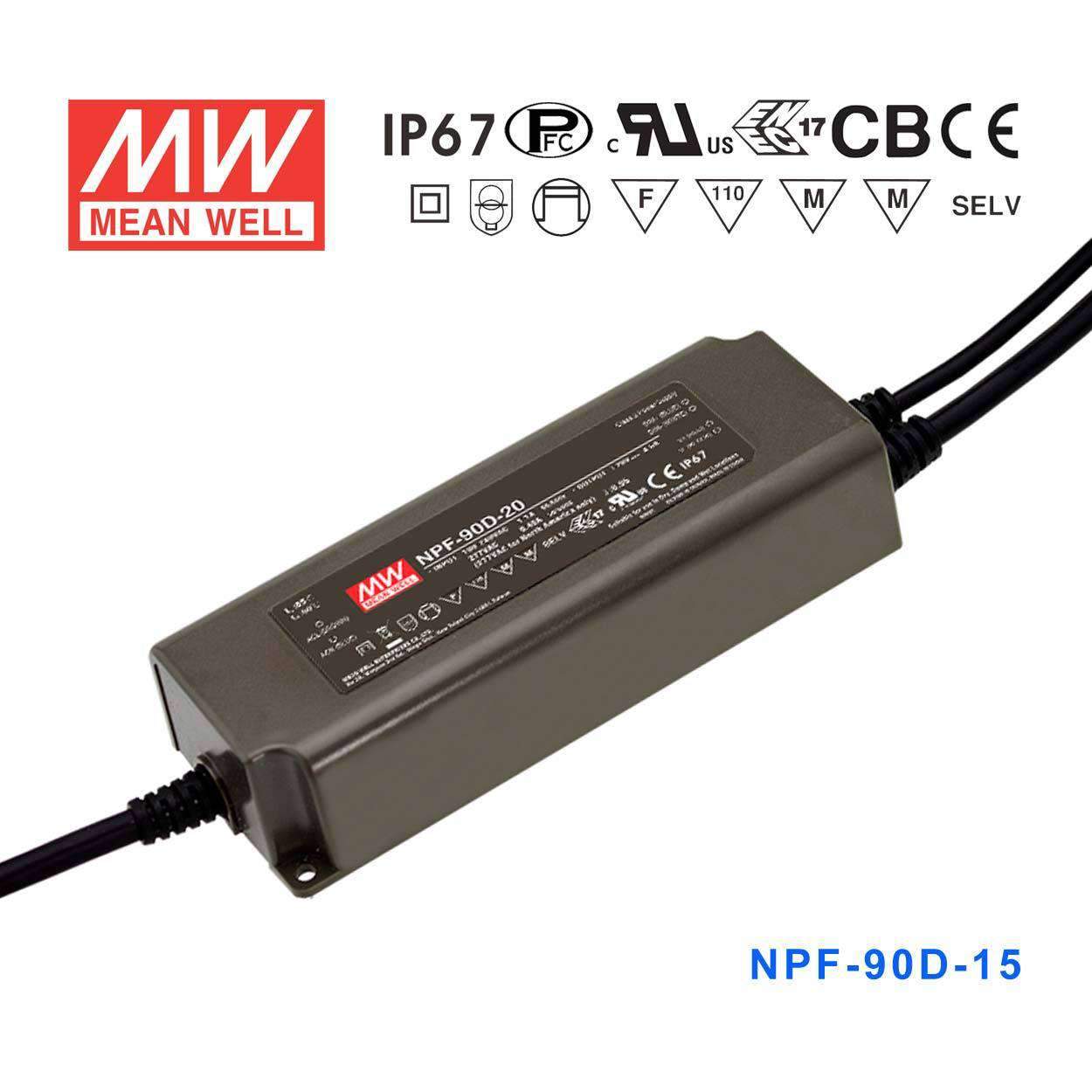

Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit (except NPF-90D-12/15) |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming methods are built into the NPF-90D-15?
The NPF-90D-15 has built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control. All three methods are natively supported without additional hardware.
Can the NPF-90D-15 drive dimmable 15V LED modules in a commercial aquarium display?
The NPF-90D-15 delivers 90W at 15V with a constant current of 6A and a CC range of 9–15V, suitable for 15V LED modules used in commercial aquarium or vivarium displays where adjustable light intensity is needed. Its IP67 rating handles the high-humidity aquarium environment.
How does the NPF-90D-15 compare to the NPF-90D-12 and NPF-90D-20?
All three are 90W dimmable IP67 drivers with 3-in-1 dimming and the same 171.0 × 63.0 × 37.5 mm dimensions. They differ in output voltage and current: NPF-90D-12 is 12V at 7.5A, NPF-90D-15 is 15V at 6A, and NPF-90D-20 is 20V at 4.5A. Match the model to your LED module’s rated voltage.
Is the NPF-90D-15 rated for outdoor wet locations?
Yes. The NPF-90D-15 carries IP67 protection against dust and temporary water immersion and operates from -40°C to +85°C, making it suitable for direct outdoor wet location installation.
What certifications does the NPF-90D-15 carry?
The NPF-90D-15 holds CB, CCC, CE, EAC, ENEC, and UL certifications and includes a 5-year manufacturer warranty.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $44.69 | View |
| Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable | 90.24W | 48V | 1.88A | IP67 | $44.69 | View |
| Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $44.69 | View |
| Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $42.58 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $46.11 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | $44.69 | View |
