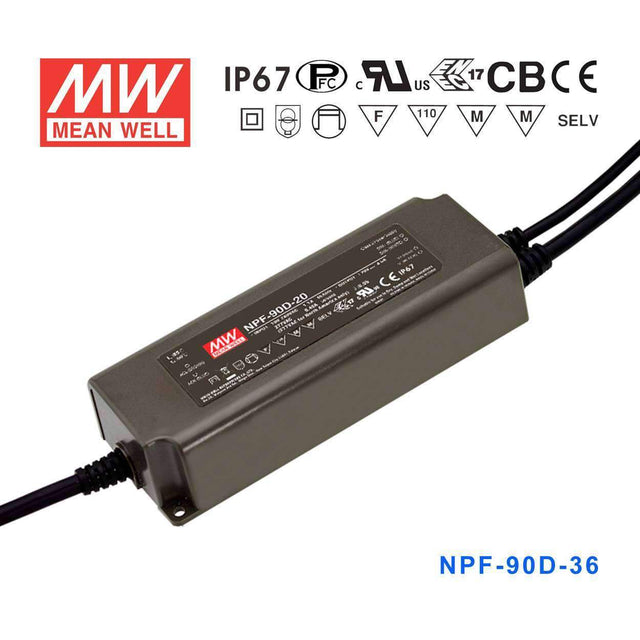

Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit (except NPF-90D-12/15) |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming inputs does the NPF-90D-36 accept?
The NPF-90D-36 features built-in 3-in-1 dimming supporting PWM signal, 0–10V analog, and resistance control, all integrated without external hardware.
Is the NPF-90D-36 suitable for dimmable 36V LED modules in outdoor sports stadium lighting?
The NPF-90D-36 delivers 90W at 36V with a constant current of 2.5A and a CC voltage range of 21–36V, which covers 36V LED modules used in outdoor sports field and stadium fixtures. Built-in dimming allows intensity control for different event lighting requirements, and IP67 protects against weather exposure.
How does the NPF-90D-36 compare to the NPF-60D-36 and NPF-90-36?
The NPF-60D-36 is a dimmable 36V driver at 60.12W and 1.67A in a 150.0 × 53.0 × 35.0 mm body. The NPF-90D-36 is the dimmable 36V version at 90W and 2.5A in a 171.0 × 63.0 × 37.5 mm body. The NPF-90-36 matches the 90D-36 electrically but lacks built-in dimming.
Can the NPF-90D-36 be installed in an outdoor wall-mounted fixture without additional weather sealing?
Yes. With an IP67 waterproof rating and a -40°C to +85°C operating range, the NPF-90D-36 can be installed directly in outdoor wall-mounted fixtures exposed to rain and temperature extremes.
What certifications does the NPF-90D-36 carry?
The NPF-90D-36 is certified to CB, CCC, CE, EAC, ENEC, and UL standards and includes a 5-year manufacturer warranty.
