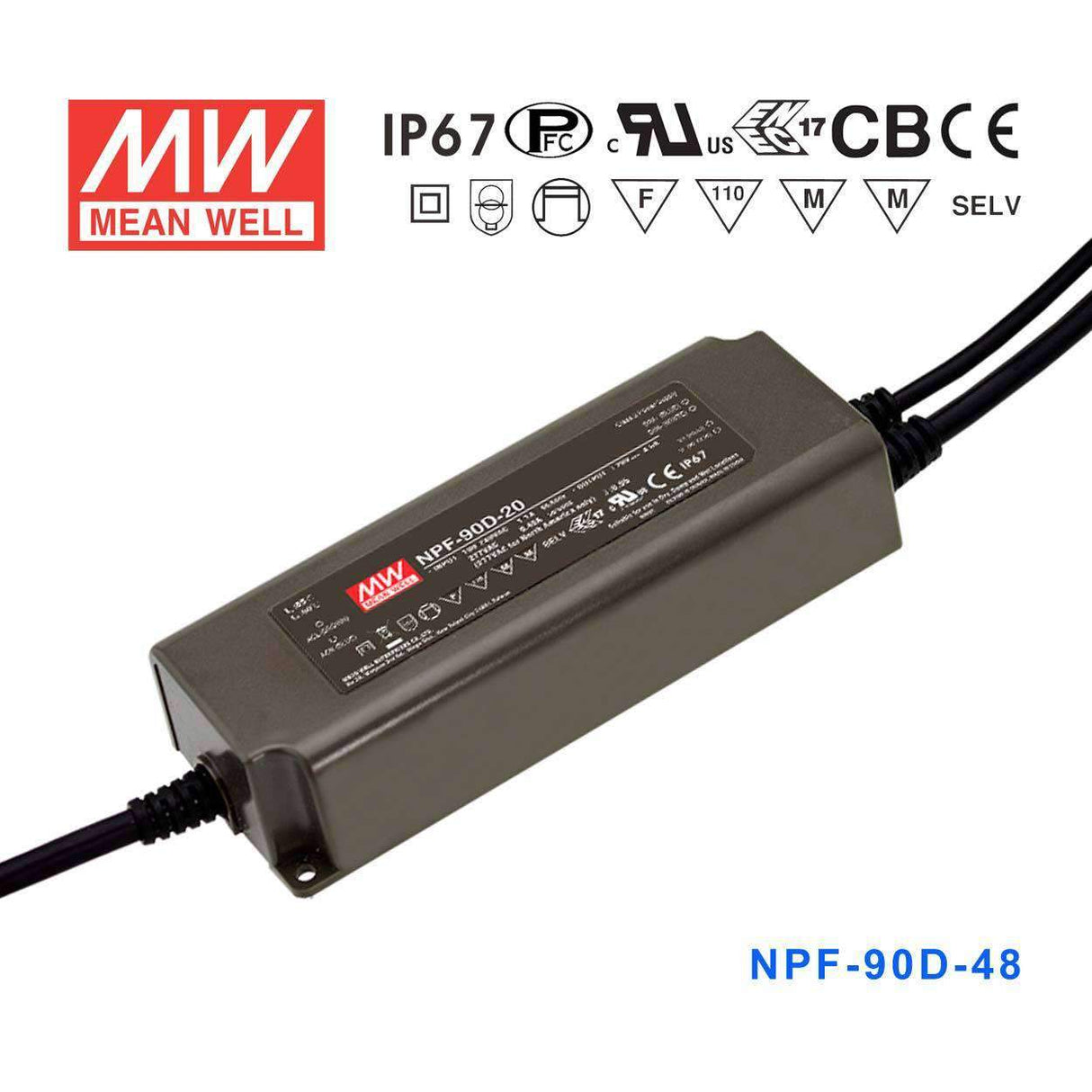

Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours

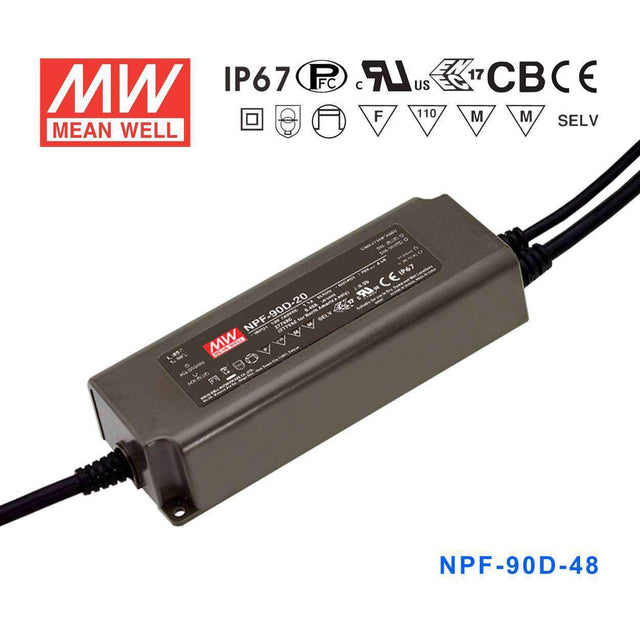

Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit (except NPF-90D-12/15) |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90.24 Watt
-
Output Voltage48 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming methods does the NPF-90D-48 support?
The NPF-90D-48 includes built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control, all natively integrated without requiring an external dimmer.
Is the NPF-90D-48 suitable for driving dimmable 48V LED modules in outdoor tunnel lighting?
The NPF-90D-48 delivers 90.24W at 48V with a constant current of 1.88A and a CC voltage range of 28–48V, which covers many 48V LED tunnel or underpass lighting modules. Its IP67 rating and -40°C to +85°C range suit the damp, variable-temperature conditions inside road tunnels.
How does the NPF-90D-48 compare to the NPF-90D-54 and the NPF-60D-48?
NPF-60D-48 is a dimmable 48V, 60W, 1.25A driver in a 150.0 × 53.0 × 35.0 mm body. NPF-90D-48 is the 90W, 1.88A version at 171.0 × 63.0 × 37.5 mm. NPF-90D-54 is the higher-voltage sibling at 54V and 1.67A with the same 90W power and body size as the NPF-90D-48.
Can the NPF-90D-48 be used outdoors in a freeze-thaw climate without additional weatherproofing?
Yes. With IP67 waterproof protection and a -40°C to +85°C operating range, the NPF-90D-48 handles outdoor freeze-thaw cycles and precipitation without a secondary enclosure.
What certifications apply to the NPF-90D-48?
The NPF-90D-48 holds CB, CCC, CE, EAC, ENEC, and UL certifications and comes with a 5-year manufacturer warranty.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $44.69 | View |
| Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $44.69 | View |
| Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $42.58 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $46.11 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable | 90W | 15V | 6A | IP67 | $44.69 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | $44.69 | View |
