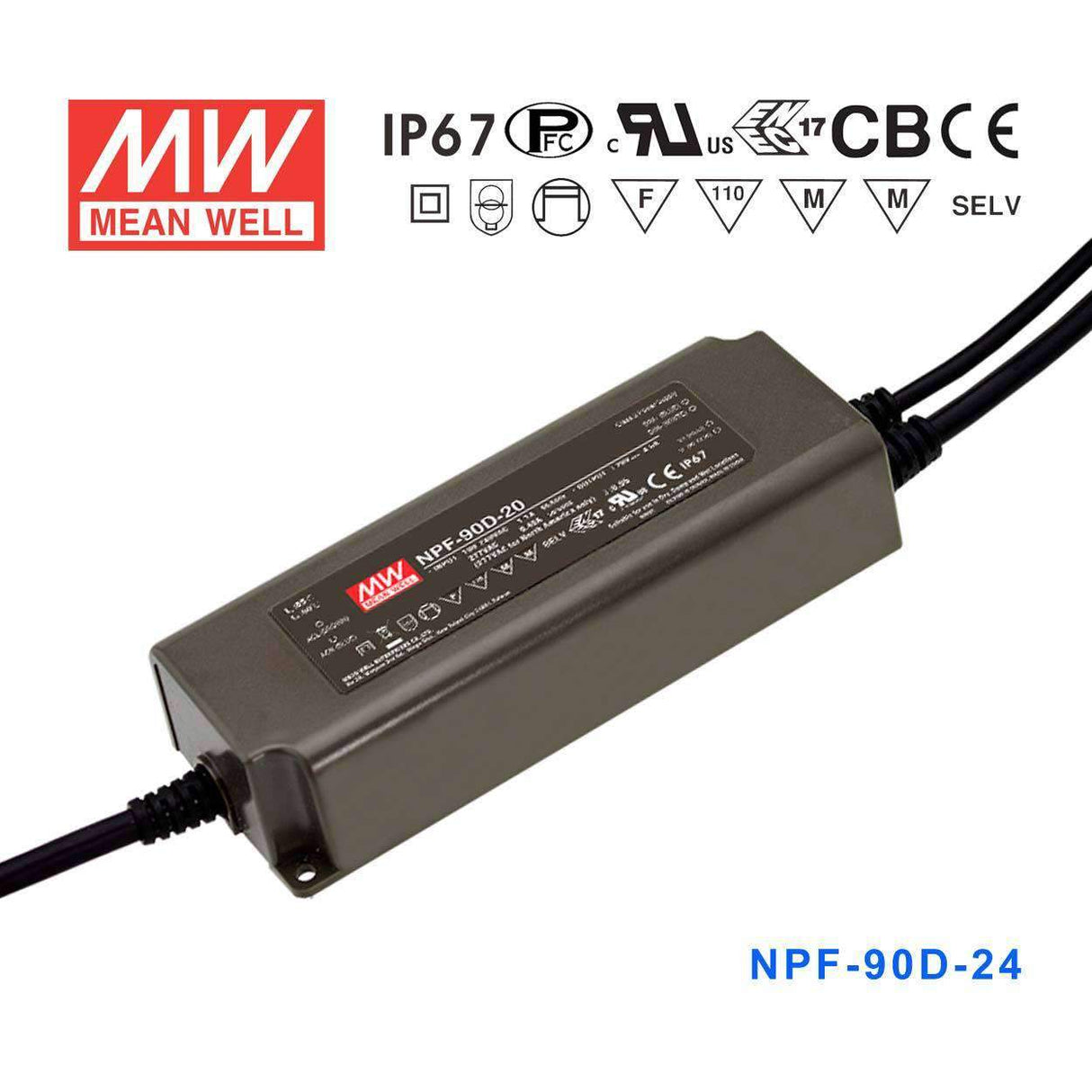

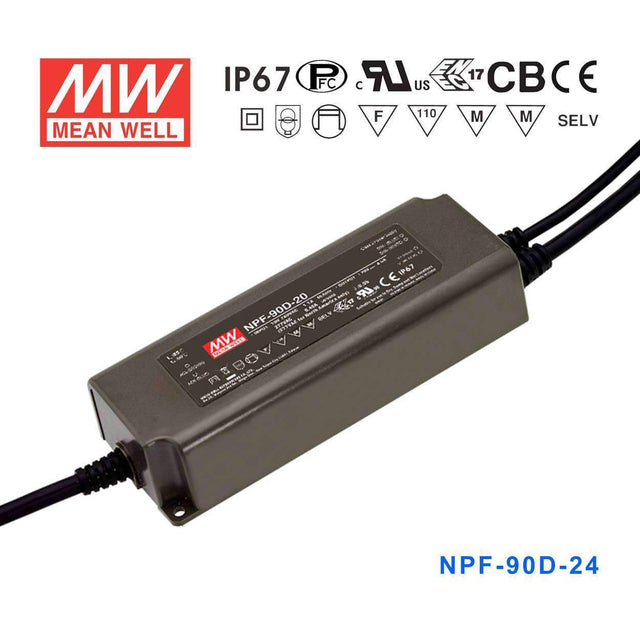

Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable
The NPF-90D is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
What dimming signals does the NPF-90D-24 support?
The NPF-90D-24 features built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control simultaneously, enabling direct integration with most commercial lighting control platforms.
Can the NPF-90D-24 drive dimmable 24V LED high-bay fixtures in a large retail warehouse?
The NPF-90D-24 delivers 90W at 24V with a constant current of 3.75A and a CC range of 14–24V. Its built-in dimming makes it suitable for 24V LED high-bay fixtures where energy-saving dimming schedules are required, and its IP67 rating supports dusty warehouse environments.
What is the difference between the NPF-90D-24 and the NPF-90-24?
The NPF-90D-24 and NPF-90-24 share identical output (90W, 24V, 3.75A), IP67 rating, dimensions (171.0 × 63.0 × 37.5 mm), and weight (0.77 kg). The NPF-90D-24 adds built-in 3-in-1 dimming; the NPF-90-24 is fixed-output.
Is the NPF-90D-24 rated for outdoor installation in tropical climates with high humidity?
Yes. The NPF-90D-24 is IP67-rated for full dust and temporary water immersion protection, and its -40°C to +85°C operating range covers the high ambient temperatures common in tropical climates.
How many 24V, 30W LED modules can the NPF-90D-24 supply?
The NPF-90D-24 provides 90W total at 3.75A output current. It can supply three 30W modules (3 × 30W = 90W) as long as each module’s forward voltage is within the 14–24V CC range and the combined current does not exceed 3.75A.
