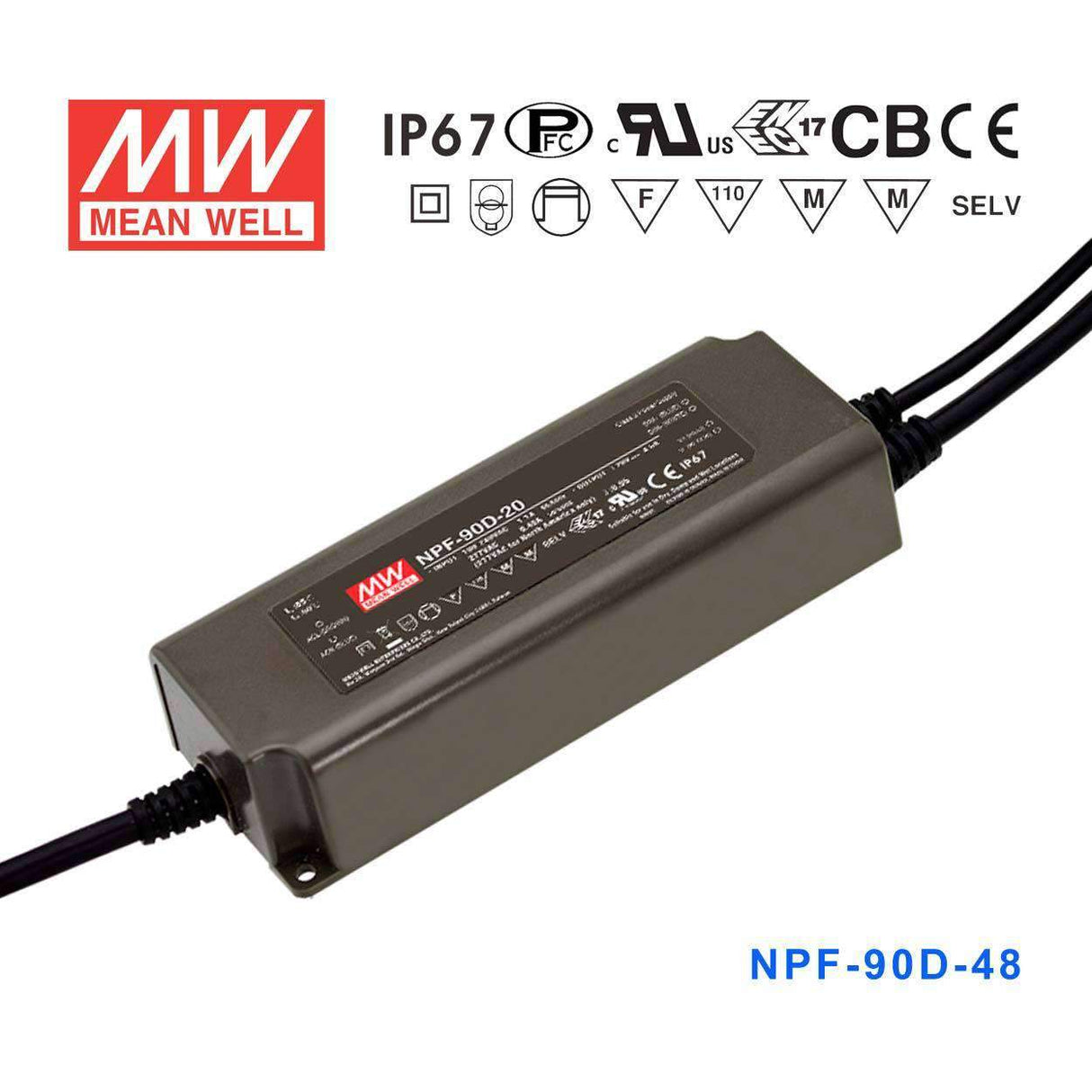

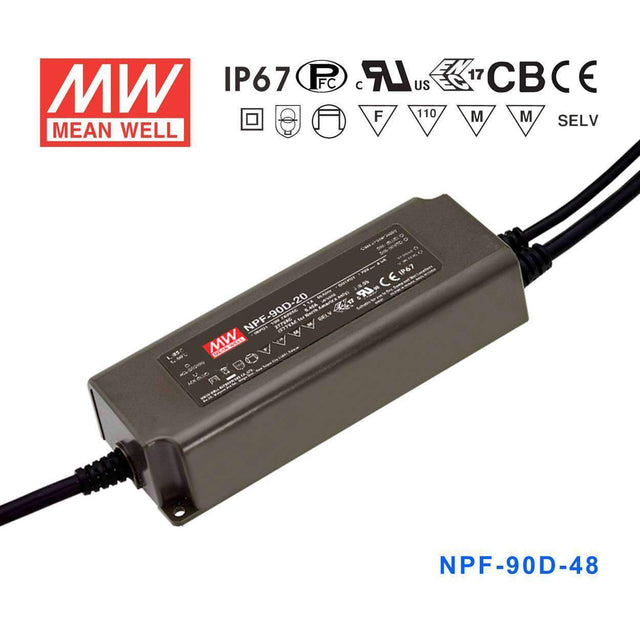

Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-90D-48 Power Supply 90W 48V - Dimmable
The NPF-90D is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90.24 Watt
-
Output Voltage48 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
What dimming methods does the NPF-90D-48 support?
The NPF-90D-48 includes built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control, all natively integrated without requiring an external dimmer.
Is the NPF-90D-48 suitable for driving dimmable 48V LED modules in outdoor tunnel lighting?
The NPF-90D-48 delivers 90.24W at 48V with a constant current of 1.88A and a CC voltage range of 28–48V, which covers many 48V LED tunnel or underpass lighting modules. Its IP67 rating and -40°C to +85°C range suit the damp, variable-temperature conditions inside road tunnels.
How does the NPF-90D-48 compare to the NPF-90D-54 and the NPF-60D-48?
NPF-60D-48 is a dimmable 48V, 60W, 1.25A driver in a 150.0 × 53.0 × 35.0 mm body. NPF-90D-48 is the 90W, 1.88A version at 171.0 × 63.0 × 37.5 mm. NPF-90D-54 is the higher-voltage sibling at 54V and 1.67A with the same 90W power and body size as the NPF-90D-48.
Can the NPF-90D-48 be used outdoors in a freeze-thaw climate without additional weatherproofing?
Yes. With IP67 waterproof protection and a -40°C to +85°C operating range, the NPF-90D-48 handles outdoor freeze-thaw cycles and precipitation without a secondary enclosure.
What certifications apply to the NPF-90D-48?
The NPF-90D-48 holds CB, CCC, CE, EAC, ENEC, and UL certifications and comes with a 5-year manufacturer warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-90D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-90D-54 Power Supply 90W 54V - Dimmable | 90.18W | 54V | 1.67A | IP67 | $44.69 | View |
| Mean Well NPF-90D-42 Power Supply 90W 42V - Dimmable | 90.3W | 42V | 2.15A | IP67 | $44.69 | View |
| Mean Well NPF-90D-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-30 Power Supply 90W 30V - Dimmable | 90W | 30V | 3A | IP67 | $42.58 | View |
| Mean Well NPF-90D-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $46.11 | View |
| Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable | 90W | 20V | 4.5A | IP67 | $44.69 | View |
| Mean Well NPF-90D-15 Power Supply 90W 15V - Dimmable | 90W | 15V | 6A | IP67 | $44.69 | View |
| Mean Well NPF-90D-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | $44.69 | View |
