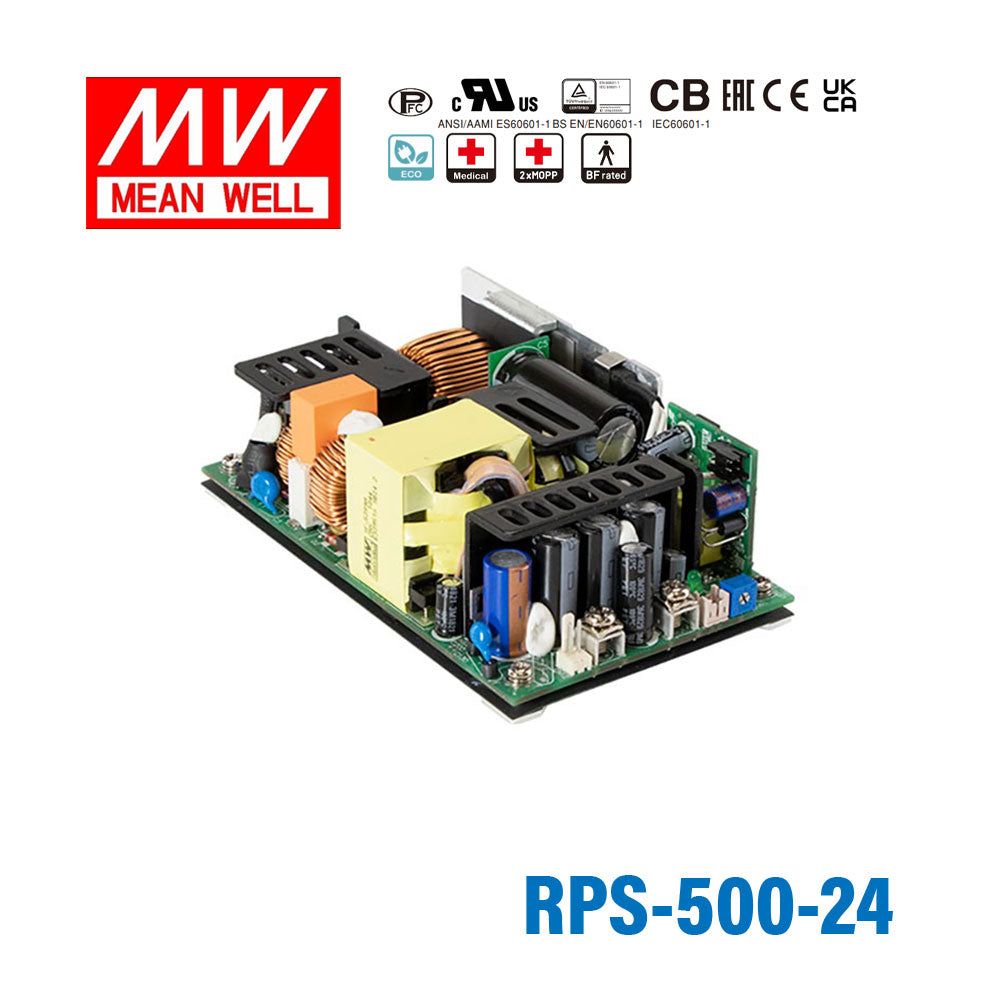

Mean Well RPS-500-24 Green Power Supply W 24V 13.4A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-24 Green Power Supply W 24V 13.4A - Medical Power...
The RPS-500 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating321.6 Watt
-
Output Voltage24 Volt
-
Rated Current13.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-24 for a 24V PLC or industrial automation panel?
Yes, it is a constant-voltage 24V supply rated for 13.4A and 321.6W. It suits 24V automation panels, PLC systems, and control assemblies whose total load stays within those output ratings.
Is the RPS-500-24 a good fit for 24V machine controls and sensors?
It can support 24V machine-control hardware, distributed sensors, and related industrial electronics when the full system current does not exceed 13.4A. The 321.6W capacity gives more headroom than lower-wattage 24V models in the same series.
Can this model be used in medical or diagnostic equipment that runs on 24V?
Yes, the unit is identified as a medical power supply and lists medical safety approval with extreme low leakage current. For equipment requiring a 24V constant-voltage source, it provides up to 13.4A and 321.6W.
Is the RPS-500-24 meant for indoor or outdoor conditions?
The specified operating temperature range is -30°C to +70°C, so it covers a wide temperature span. However, no IP rating is listed, so the specs do not confirm suitability for exposed outdoor, washdown, or weather-contact use.
What are the main 24V options around the RPS-500-24 in this series?
The listed 24V siblings include RPS-120-24 and RPS-120-24-C at 84W, 5A; RPS-120S-24 at 120W, 5A; RPS-160-24 at 113.4W, 4.6A; RPS-200-24 and RPS-200-24-C at 141.6W, 5.9A; RPS-300-24 and RPS-300-24-C at 200W, 8.33A; RPS-400-24, RPS-400-24-C, RPS-400-24-SF, and RPS-400-24-TF at 252W, 10.5A; RPS-500-24-C at 309.6W, 12.9A; and RPS-500-24-SF and RPS-500-24-TF at 499.2W, 20.8A. The RPS-500-24 sits between the 252W 10.5A 24V group and the 499.2W 20.8A 24V group.
