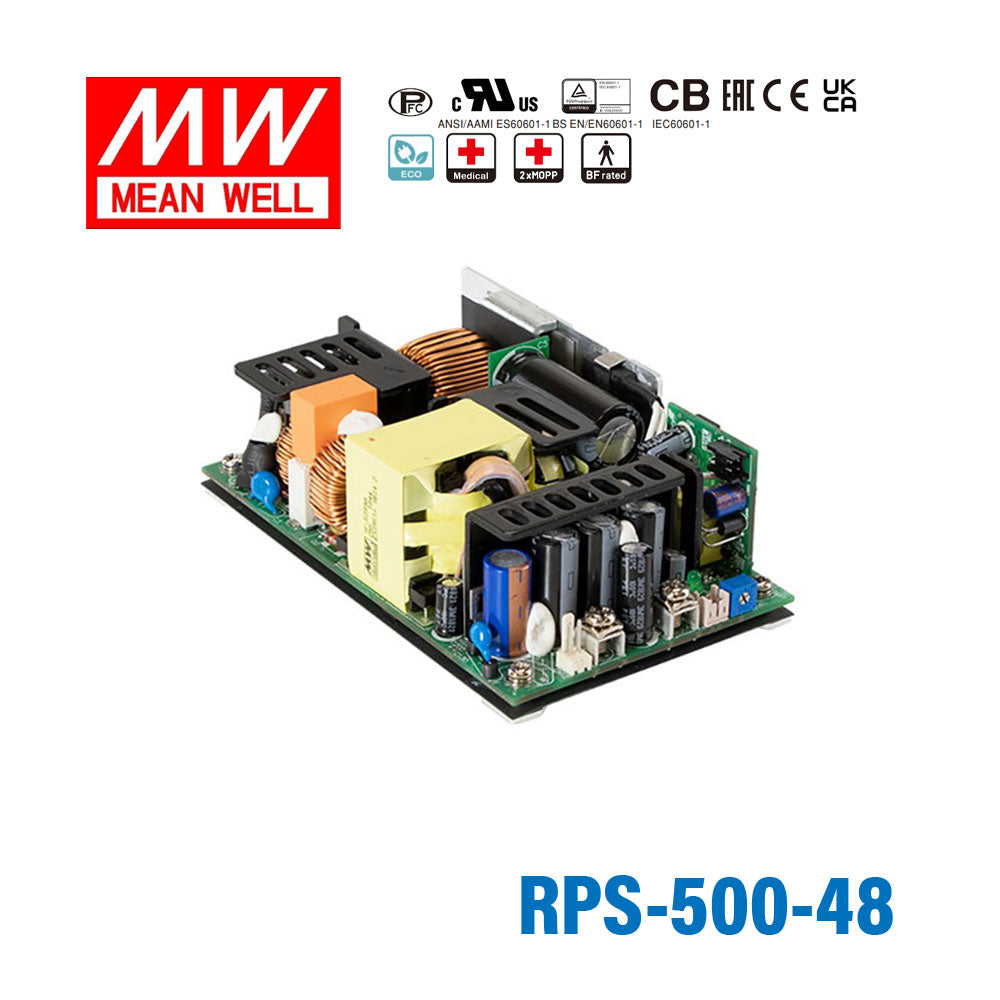

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well RPS-500-48 Green Power Supply W 48V 6.7A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-48 Green Power Supply W 48V 6.7A - Medical Power ...
The RPS-500 is a 321.6W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 48V
- ✓ Rated output current: 6.7A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CE, cUL, EAC, SHIDE
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating321.6 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-48 for a 48V industrial control or automation system?
Yes, this is a constant voltage 48V supply rated for 6.7A and 321.6W. It is suitable for 48V industrial, automation, or embedded systems that need a regulated 48V DC source within that load range.
Is the RPS-500-48 suitable for 48V telecom or network equipment?
It can be used where the equipment requires 48V DC and the load stays within 6.7A and 321.6W. The wide 80-264VAC input range is useful for deployment across sites with different AC supply conditions.
Can this power supply support a 48V medical or laboratory device?
Yes, if the device needs constant 48V output and does not exceed 6.7A or 321.6W. The product is listed as medical safety approved and includes extreme low leakage current among its features.
Would the RPS-500-48 work in a compact OEM or embedded enclosure?
Yes, for 48V systems that fit within its 321.6W and 6.7A rating. Its compact dimensions of 127.0 x 76.2 x 41.0 mm and weight of 0.46 kg help where space and weight are constrained.
How does the RPS-500-48 compare with the other 48V versions in the same family?
The RPS-500-48 is rated at 321.6W and 6.7A, the RPS-500-48-C is 312W and 6.5A, and the RPS-500-48-SF and RPS-500-48-TF are 499.2W and 10.4A. This model measures 127.0 x 76.2 x 41.0 mm, while the C version is 130.0 x 86.0 x 43.0 mm.
Can the RPS-500-48 be used in outdoor or washdown environments?
Its operating temperature range is -30°C to +70°C, so it can handle broad indoor ambient conditions. No IP rating is listed, so it is better suited to protected indoor enclosures than exposed outdoor or washdown locations.
