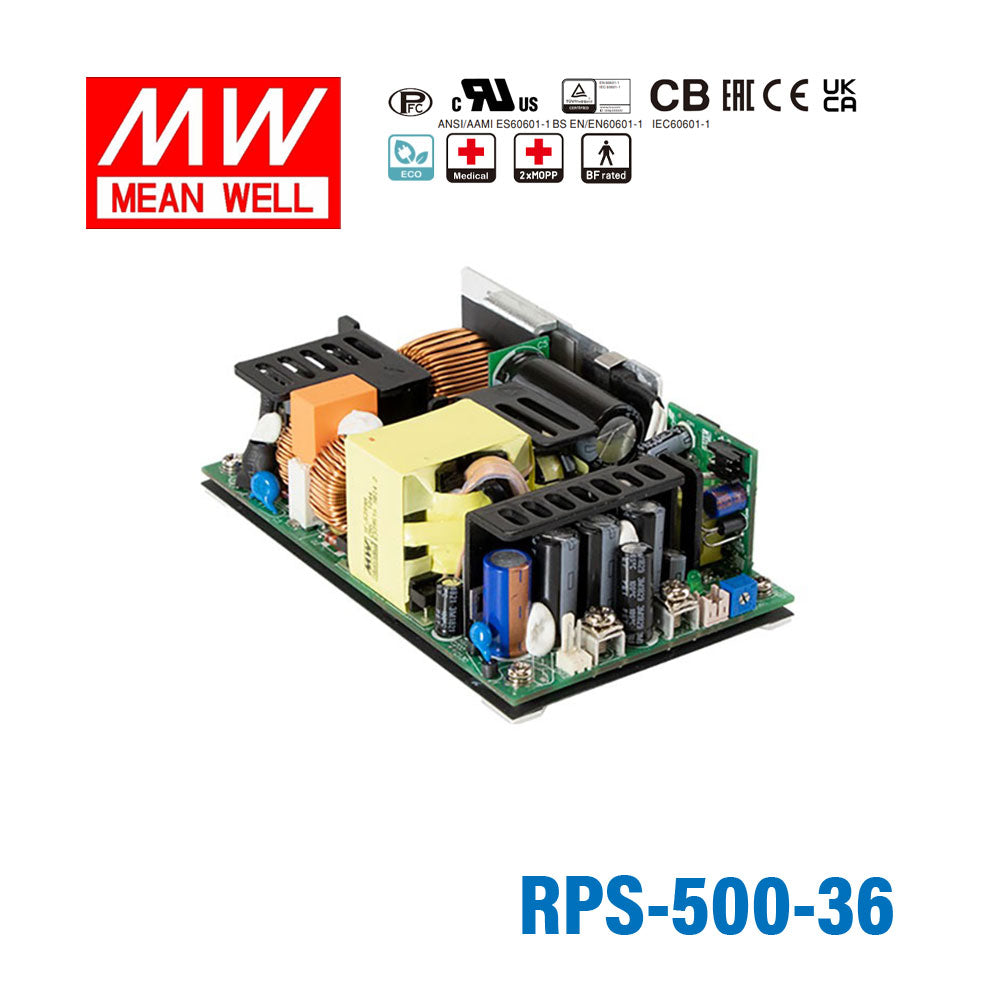

Mean Well RPS-500-36 Green Power Supply W 36V 8.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-36 Green Power Supply W 36V 8.9A - Medical Power ...
The RPS-500 is a 320.4W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 36V
- ✓ Rated output current: 8.9A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CE, cUL, EAC, SHIDE
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating320.4 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-36 for a 36V medical device or lab instrument?
Yes, if the equipment needs a constant 36V output and draws no more than 8.9A. This model is rated for 320.4W and is listed as medical safety approved with extreme low leakage current.
Is the RPS-500-36 suitable for 36V industrial automation or control equipment?
It can be used in industrial electronics that require a constant 36V DC source up to 8.9A. The 320.4W rating makes it appropriate for mid-power 36V assemblies rather than lighter-duty 36V loads.
Can this power supply support a 36V embedded system with multiple loads?
Yes, as long as the combined 36V load remains within 8.9A. It is a constant-voltage design, so it fits embedded platforms built around a stable 36V rail.
Is the RPS-500-36 a good fit for compact OEM equipment that uses 36V DC?
It is well suited to compact OEM designs, with dimensions of 127.0 x 76.2 x 41.0 mm and a weight of 0.46 kg. Those physical specs help when a 36V, 320.4W supply needs to fit into a tighter product enclosure.
How does the RPS-500-36 compare with the other 36V RPS-500 versions?
In the 36V RPS-500 group, the RPS-500-36 is 320.4W at 8.9A, the RPS-500-36-C is 309.6W at 8.6A, and the RPS-500-36-SF and RPS-500-36-TF are both 500.4W at 13.9A. The standard RPS-500-36 is also the most compact and lightest of those four at 127.0 x 76.2 x 41.0 mm and 0.46 kg.
Can the RPS-500-36 be used in outdoor equipment or demanding ambient temperatures?
The published operating range is -30C to +70C, so it supports a broad temperature window. No IP rating is listed in the provided specs, so it is best used in protected indoor equipment or within an enclosure rather than in exposed outdoor conditions.
