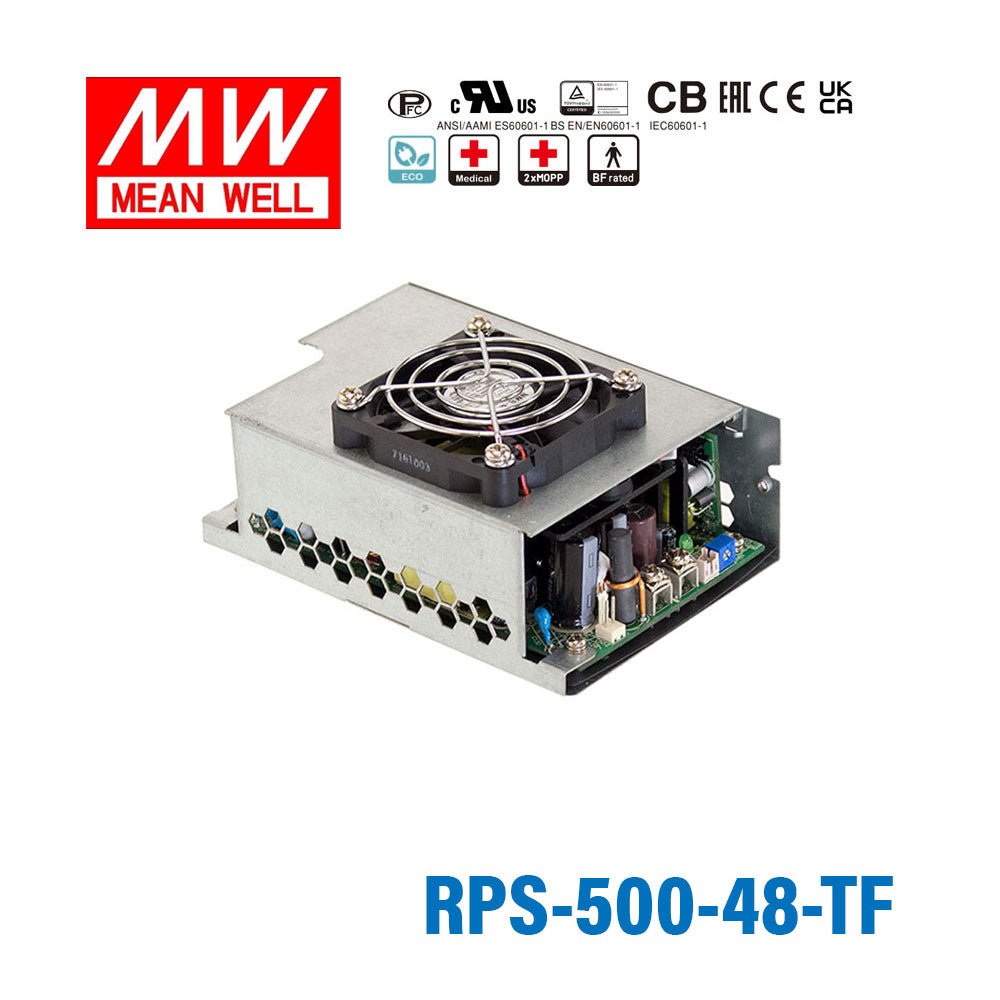

Mean Well RPS-500-48-TF Green Power Supply W 48V 10.4A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-48-TF Green Power Supply W 48V 10.4A - Medical Po...
The RPS-500-48 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.2 Watt
-
Output Voltage48 Volt
-
Rated Current10.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the RPS-500-48-TF power a 48V industrial PC, controller, or automation subsystem?
It can be used for 48V equipment when the total demand does not exceed 10.4A and 499.2W. As a constant voltage supply, it is intended for 48V loads rather than applications that require a different output voltage.
Is this model a fit for high-power 48V embedded or communications hardware?
Yes, it is a 48V constant voltage power supply rated for up to 10.4A. That gives it 499.2W of available output for embedded, communications, or control hardware built around a 48V input rail.
Can I use the RPS-500-48-TF in a medical electronics platform that needs 48V output?
This model is medical safety approved and is specified with extreme low leakage current. It is intended for 48V medical electronics or related equipment as long as the load remains within 10.4A and 499.2W.
Is the RPS-500-48-TF okay for outdoor cabinets or exposed factory areas?
The provided specs do not list an IP rating, so it is better treated as an indoor or enclosed-unit power supply rather than one for exposed outdoor service. Its operating temperature range is -30°C to +70°C, but that does not replace a stated ingress-protection rating.
Why would someone choose the RPS-500-48-TF over another 48V 500W form factor?
A key selection point is its smaller footprint of 130.0 × 86.0 × 66.5 mm and lower weight of 0.58 kg while still providing 48V, 10.4A, and 499.2W. It also supports a wide 80-264VAC input range and carries a 3 year warranty.
