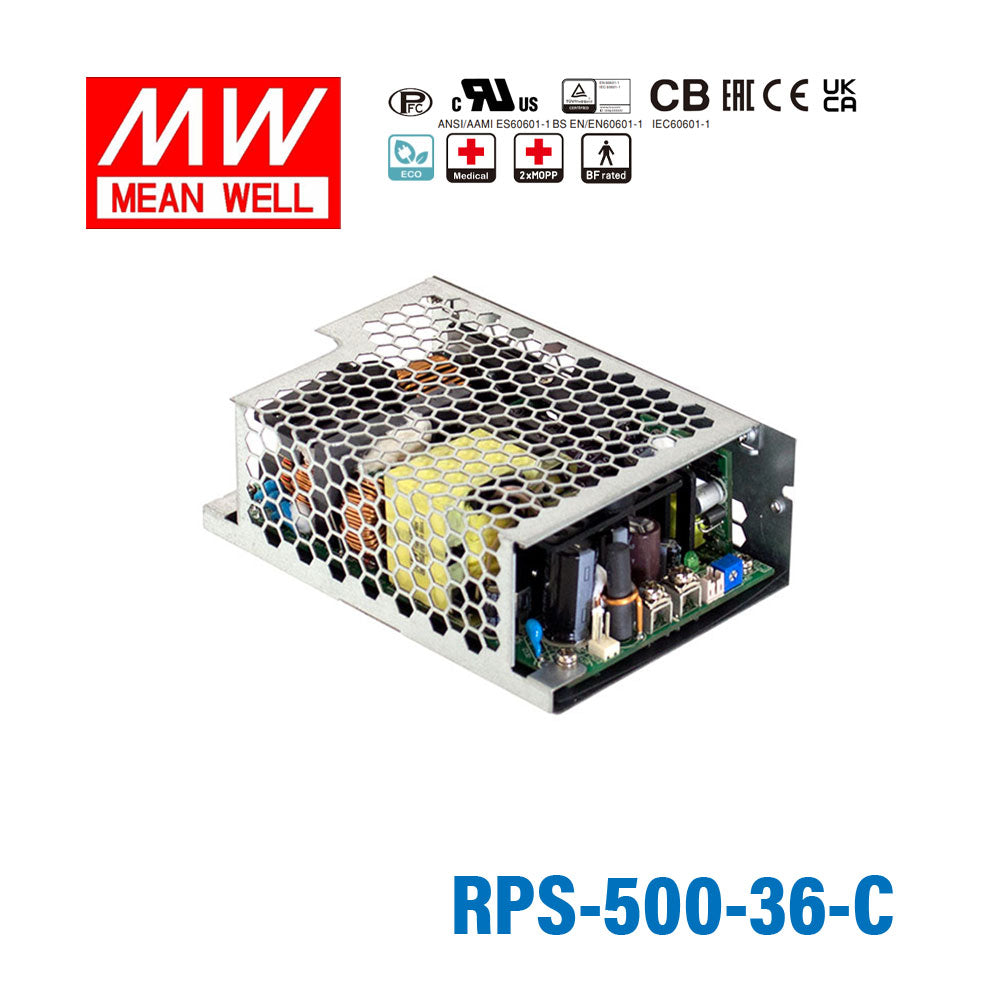

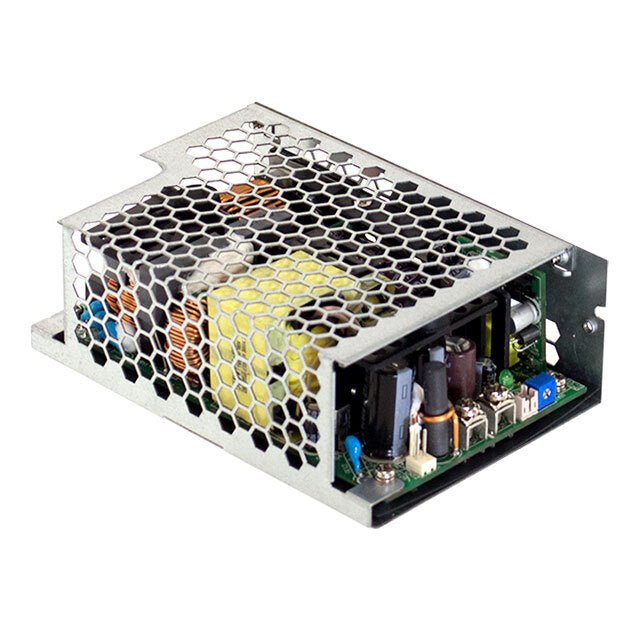

Mean Well RPS-500-36-C Green Power Supply W 36V 8.6A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-36-C Green Power Supply W 36V 8.6A - Medical Powe...
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating309.6 Watt
-
Output Voltage36 Volt
-
Rated Current8.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.19 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-500-36-C for a 36V industrial control cabinet?
Yes, this model is a constant voltage 36V power supply rated for 8.6A and 309.6W. That makes it appropriate for 36V industrial control, automation, or embedded systems that need a regulated 36V DC source within that power range.
Is this power supply suitable for 36V medical or lab equipment?
It can be used where a 36V DC output is required and the load stays within 8.6A and 309.6W. The listed features include medical safety approval and extreme low leakage current, which are relevant for medical and laboratory equipment designs.
Can the RPS-500-36-C power a 36V embedded or OEM system with multiple DC loads?
Yes, if the combined load requires 36V constant voltage and does not exceed 8.6A or 309.6W. Its 130.0 x 86.0 x 43.0 mm size also fits compact embedded and OEM assemblies where board space matters.
Will this work for 36V automation equipment in facilities with different AC mains?
Yes, the input range is 80-264VAC, so it is suited to automation equipment deployed across sites with different AC supply standards. The output remains 36V constant voltage with up to 8.6A available on the DC side.
What is the difference between the RPS-500-36-C, RPS-500-36, and RPS-500-36-SF/TF?
Within the 36V RPS-500 family, the RPS-500-36-C is rated at 309.6W and 8.6A, the RPS-500-36 is 320.4W and 8.9A, and the RPS-500-36-SF and RPS-500-36-TF are 500.4W and 13.9A. The RPS-500-36-C measures 130.0 x 86.0 x 43.0 mm, while the TF version is 130.0 x 86.0 x 66.5 mm and the SF version is 160.0 x 86.0 x 43.0 mm.
Is the RPS-500-36-C suitable for outdoor or harsh ambient use?
The operating temperature range is -30°C to +70°C, so it supports demanding indoor temperature conditions. No IP rating is listed, so it is better suited to protected indoor enclosures rather than exposed outdoor locations.
