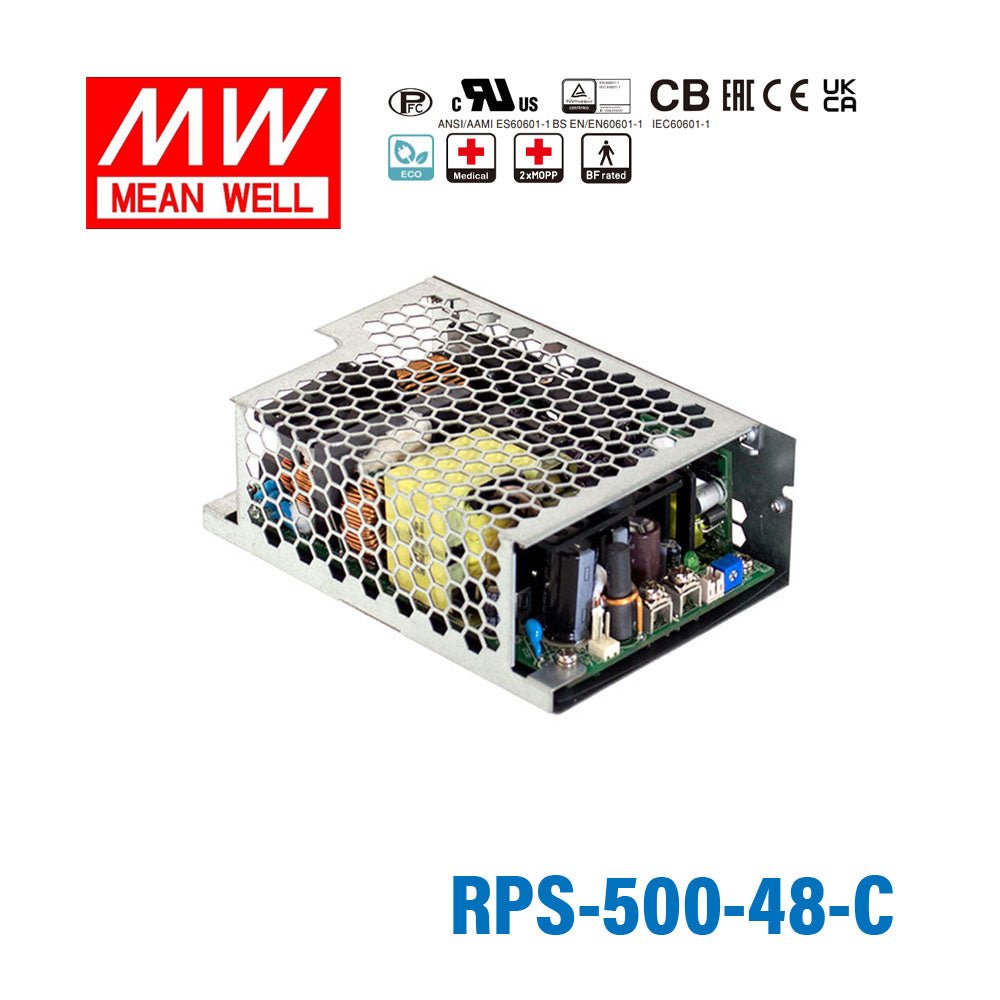

Mean Well RPS-500-48-C Green Power Supply W 48V 6.5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-48-C Green Power Supply W 48V 6.5A - Medical Powe...
The RPS-500-48 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating312 Watt
-
Output Voltage48 Volt
-
Rated Current6.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-48-C for a 48V PLC, controller, or automation cabinet?
Yes, this model provides constant 48V output up to 6.5A with 312W total power. It is appropriate for 48V automation and control applications that need a regulated DC source within that rating.
Is the RPS-500-48-C suitable for 48V medical or diagnostic equipment?
It can be used where the equipment requires 48V DC and stays within 6.5A and 312W. The listed features include medical safety approval and extreme low leakage current, which are relevant for medical device power design.
Can this model power 48V embedded or OEM systems with several loads on one DC bus?
Yes, provided the combined 48V demand does not exceed 6.5A or 312W. Its 130.0 x 86.0 x 43.0 mm form factor also supports compact OEM packaging.
Would the RPS-500-48-C work for 48V equipment sold internationally?
Yes, the 80-264VAC input range supports use across regions with different AC mains standards. The output remains constant at 48V for loads up to 6.5A.
What is the difference between the RPS-500-48-C and other 48V RPS-500 models?
The RPS-500-48-C is rated at 312W and 6.5A, while the RPS-500-48 is 321.6W and 6.7A and the RPS-500-48-SF and RPS-500-48-TF are 499.2W and 10.4A. The RPS-500-48-C dimensions are 130.0 x 86.0 x 43.0 mm.
Is this power supply appropriate for outdoor control boxes?
The operating temperature range is -30°C to +70°C, which supports a wide range of indoor ambient conditions. No IP rating is listed, so it should be used in a protected enclosure rather than in direct outdoor exposure.
