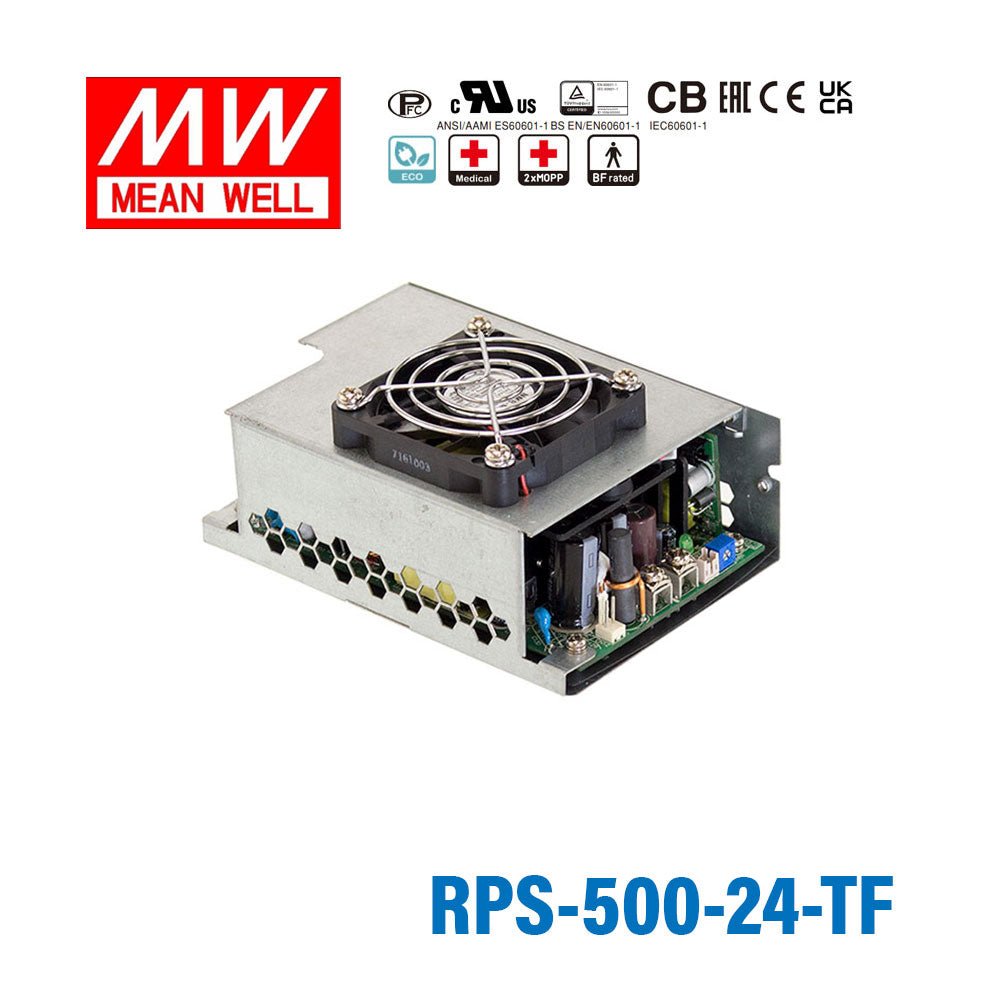

Mean Well RPS-500-24-TF Green Power Supply W 24V 20.8A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-24-TF Green Power Supply W 24V 20.8A - Medical Po...
The RPS-500-24 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.2 Watt
-
Output Voltage24 Volt
-
Rated Current20.8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the RPS-500-24-TF power a 24V industrial PC or embedded system with high current demand?
Yes, it provides a constant 24V output rated for 20.8A and 499.2W. That makes it suitable for 24V industrial PCs, embedded platforms, and control hardware with heavier current requirements.
Is this a suitable 24V supply for machine vision, inspection, or automation equipment?
It can be used where the equipment requires a regulated 24V supply and the total load stays within 20.8A and 499.2W. The higher current capacity makes it better suited to larger 24V automation assemblies than the 321.6W and 309.6W versions.
Can the RPS-500-24-TF be used in medical carts or diagnostic systems that run on 24V?
Yes, the listed features include medical safety approval and extreme low leakage current. For 24V medical or diagnostic equipment, it provides up to 20.8A and 499.2W from a constant-voltage output.
Is the RPS-500-24-TF rated for outdoor use?
The operating temperature range is -30°C to +70°C, so the temperature rating is broad. However, no IP rating is provided in the specs, so the product data does not confirm suitability for exposed outdoor environments.
How does the RPS-500-24-TF compare with the other 24V versions in this family?
The listed 24V versions around it are RPS-500-24 at 321.6W and 13.4A, RPS-500-24-C at 309.6W and 12.9A, and RPS-500-24-SF at 499.2W and 20.8A. The RPS-500-24-TF matches the highest listed 24V output in this subgroup at 499.2W and 20.8A.
