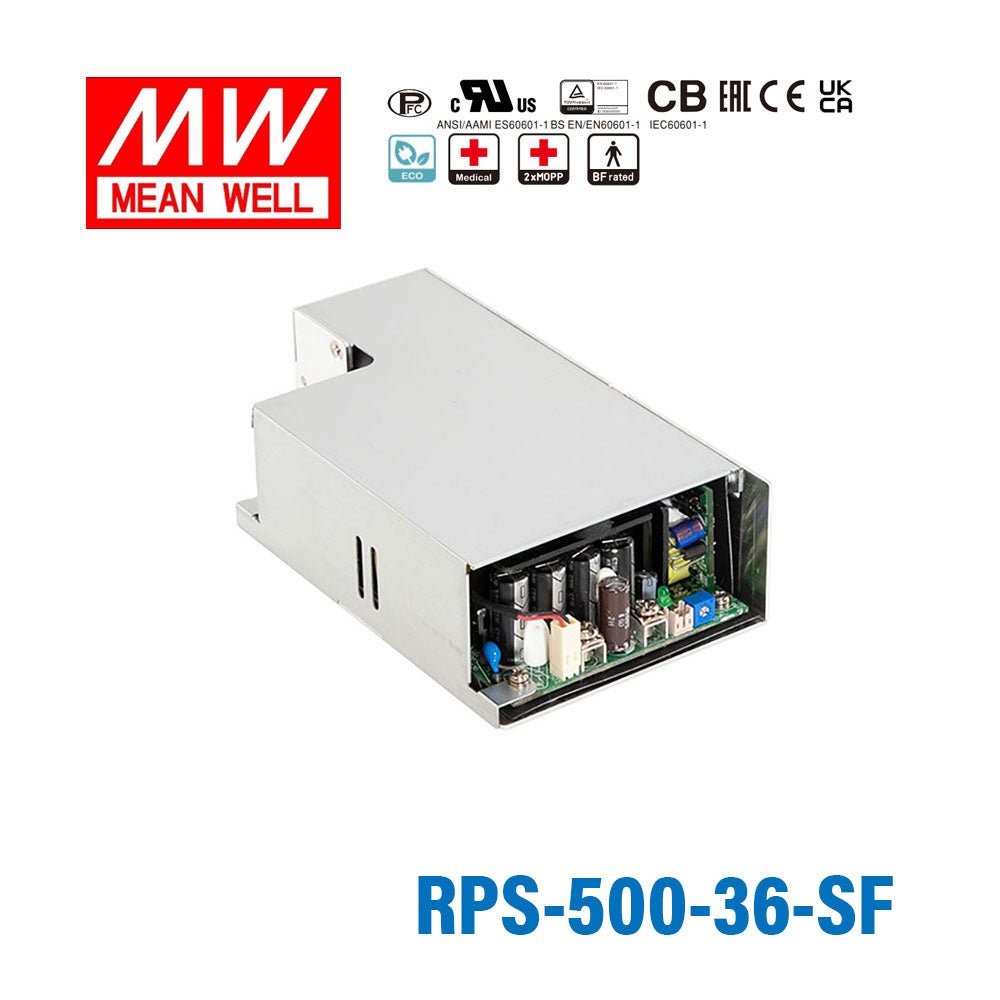

Mean Well RPS-500-36-SF Green Power Supply W 36V 13.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-36-SF Green Power Supply W 36V 13.9A - Medical Po...
The RPS-500-36 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating500.4 Watt
-
Output Voltage36 Volt
-
Rated Current13.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.3 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.41 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-36-SF for a higher-load 36V automation system?
Yes, this model provides 36V constant voltage at up to 13.9A with 500.4W total output power. That makes it a fit for larger 36V automation assemblies that need more current than lower-power 36V RPS variants.
Is the RPS-500-36-SF a good choice for 36V medical equipment builds?
It can be used in 36V medical equipment designs when the load requires up to 13.9A and 500.4W. The product is listed as medical safety approved and includes extreme low leakage current in its feature set.
Can this model power a 36V industrial PC, controller, or embedded platform with multiple peripherals?
Yes, as long as the total 36V load stays within 13.9A and 500.4W. The wide 80-264VAC input also supports deployment in facilities using different AC mains conditions.
Would the RPS-500-36-SF work for a 36V test bench or lab rack system?
Yes, it is suitable where a regulated 36V constant voltage source is needed up to 13.9A. Its medical approval and low leakage positioning can also matter in lab and instrument environments.
How does the RPS-500-36-SF compare with the other 36V RPS-500 models?
The RPS-500-36-SF is rated at 500.4W and 13.9A, while the RPS-500-36 is 320.4W and 8.9A, the RPS-500-36-C is 309.6W and 8.6A, and the RPS-500-36-TF is also 500.4W and 13.9A. This SF version measures 160.0 x 86.0 x 43.0 mm, compared with 130.0 x 86.0 x 43.0 mm for the standard and C versions, and 130.0 x 86.0 x 66.5 mm for the TF version.
Can this power supply be used in cold or hot indoor industrial environments?
The specified operating range is -30°C to +70°C, which supports broad indoor environmental conditions. No IP rating is listed, so it is best used inside a protected enclosure rather than in direct outdoor exposure.
