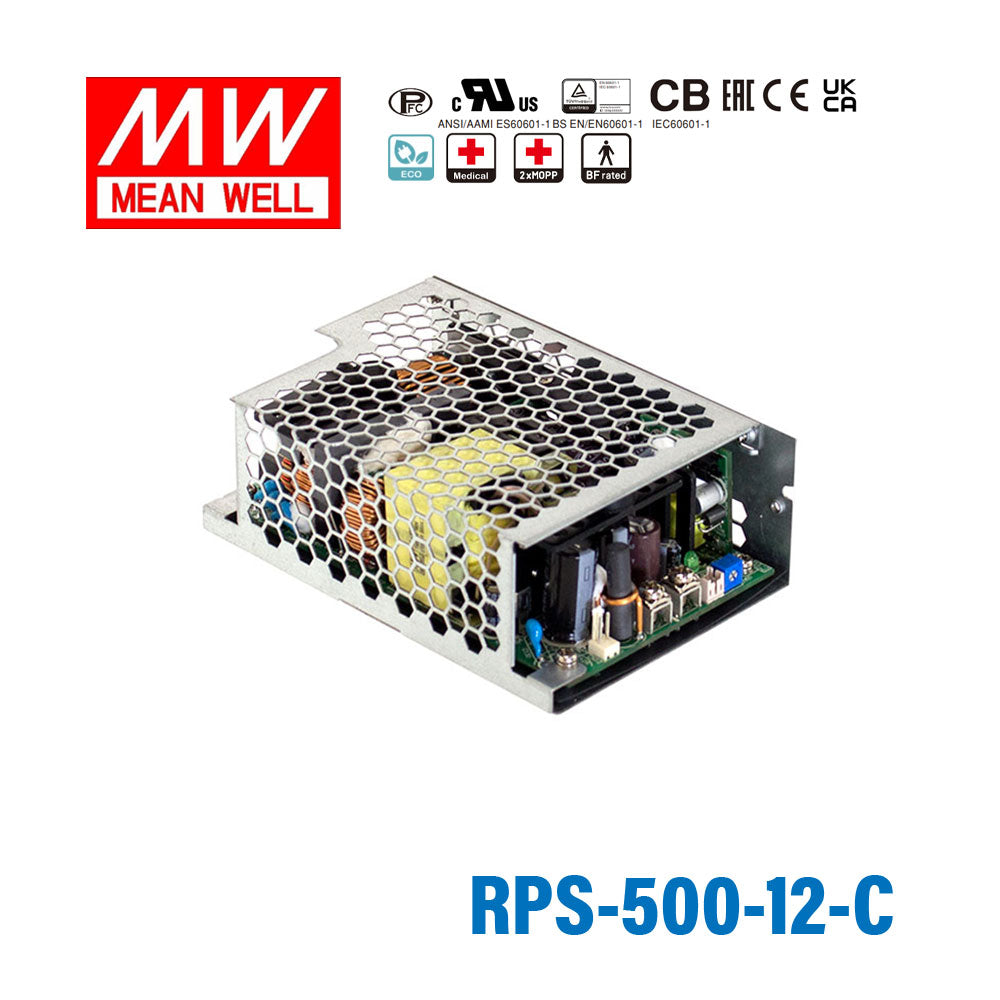

Mean Well RPS-500-12-C Green Power Supply W 12V 25.8A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-12-C Green Power Supply W 12V 25.8A - Medical Pow...
The RPS-500-12 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating309.6 Watt
-
Output Voltage12 Volt
-
Rated Current25.8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-12-C for a 12V industrial PC or embedded controller system?
Yes, this model is a constant-voltage 12V power supply rated for 25.8A and 309.6W. It fits 12V industrial PC, embedded controller, or edge-computing loads that need higher current capacity while staying within those output limits.
Is the RPS-500-12-C suitable for 12V medical electronics inside a larger device?
It is built for 12V constant-voltage output and is medical safety approved, with extreme low leakage current listed as a feature. That makes it relevant for medical device subsystems that require 12V power up to 25.8A and 309.6W.
Can this power supply run a 12V automation panel with multiple control loads?
It can support 12V automation equipment when the combined load stays within 25.8A and 309.6W. For control panels with several 12V devices, the available current is much higher than smaller 12V RPS models in the series.
Is the RPS-500-12-C appropriate for outdoor or harsh exposed locations?
The operating temperature range is -30°C to +70°C, so the temperature span is broad. However, no IP rating is listed in the provided specs, so it is better suited to protected indoor equipment than exposed outdoor conditions.
How does the RPS-500-12-C compare with other 12V models in the RPS series?
Within the 12V RPS range, listed outputs include 30W 2.5A, 45.6W 3.8A, 60W 5A, 65W 5.42A, 75.6W 6.3A, 84W 10A, 112.2W 9.1A, 114W 9.5A, 140.4W 11.7A, 200W 16.67A, 249.6W 20.8A, 309.6W 25.8A, 320.4W 26.7A, and 499.2W 41.6A. The RPS-500-12-C sits near the top of that 12V range at 309.6W and 25.8A, below the 320.4W 26.7A and 499.2W 41.6A versions.
