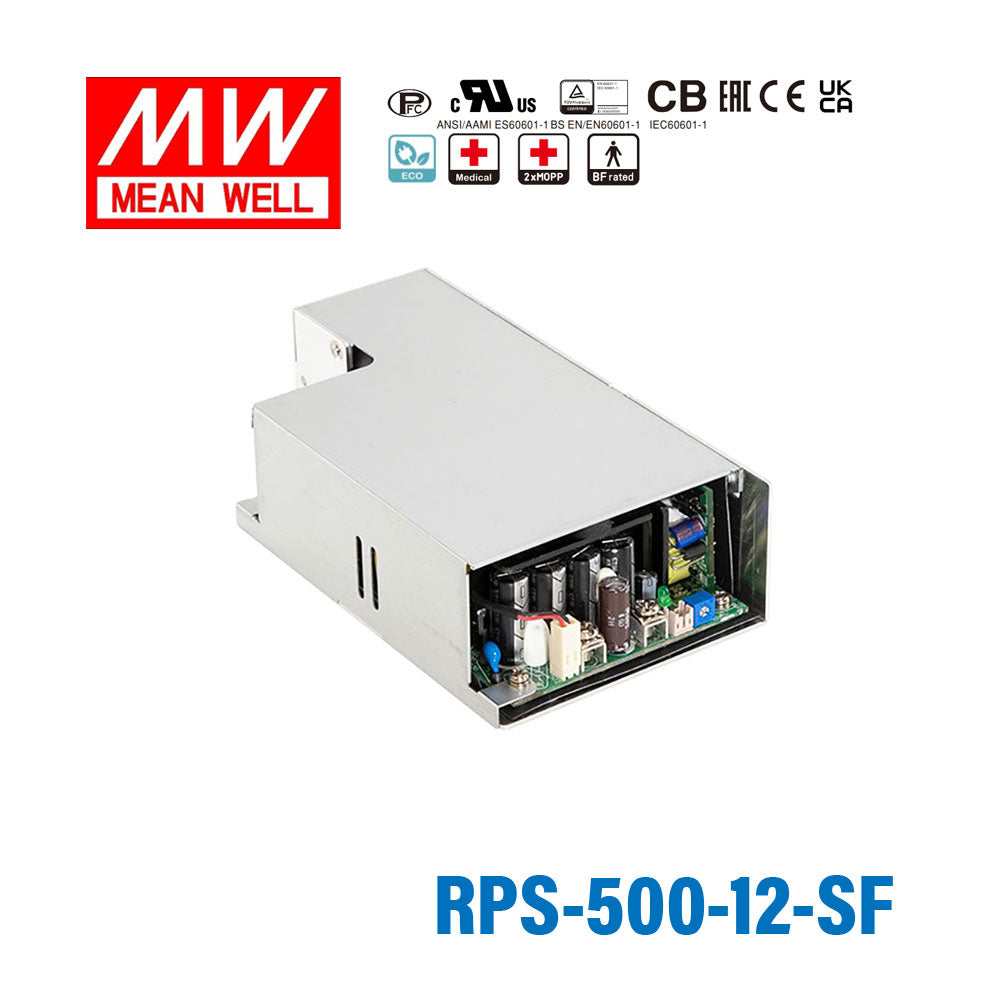

Mean Well RPS-500-12-SF Green Power Supply W 12V 41.6A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-12-SF Green Power Supply W 12V 41.6A - Medical Po...
The RPS-500-12 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.2 Watt
-
Output Voltage12 Volt
-
Rated Current41.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.3 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.41 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-12-SF for a high-current 12V industrial control system?
Yes, this unit provides constant-voltage 12V output at up to 41.6A and 499.2W. It is suited to larger 12V industrial control loads that need substantially more current than mid-power 12V RPS models.
Is the RPS-500-12-SF a fit for 12V embedded computing or edge hardware with many peripherals?
It can be a fit when the full 12V system remains within 41.6A and 499.2W. That makes it more appropriate for dense 12V embedded or edge platforms than 12V models rated at 25.8A, 26.7A, or 20.8A.
Can this model support 12V medical equipment with higher power demand?
The RPS-500-12-SF is medical safety approved and provides 12V constant-voltage output up to 41.6A and 499.2W. It is appropriate for medical device subsystems that need a higher-capacity 12V supply and benefit from the listed extreme low leakage current feature.
Is the RPS-500-12-SF suitable for outdoor cabinets or unprotected environments?
Its operating temperature range is -30°C to +70°C, so it covers a wide ambient range. The provided specs do not list an IP rating, so it is best used in protected indoor or enclosed equipment environments rather than exposed outdoor locations.
How does the RPS-500-12-SF compare with other 12V RPS power supplies?
The listed 12V RPS outputs are 30W 2.5A, 45.6W 3.8A, 60W 5A, 65W 5.42A, 75.6W 6.3A, 84W 10A, 112.2W 9.1A, 114W 9.5A, 140.4W 11.7A, 200W 16.67A, 249.6W 20.8A, 309.6W 25.8A, 320.4W 26.7A, and 499.2W 41.6A. This model is the top-capacity 12V option shown, matched only by the 499.2W 41.6A TF version.
