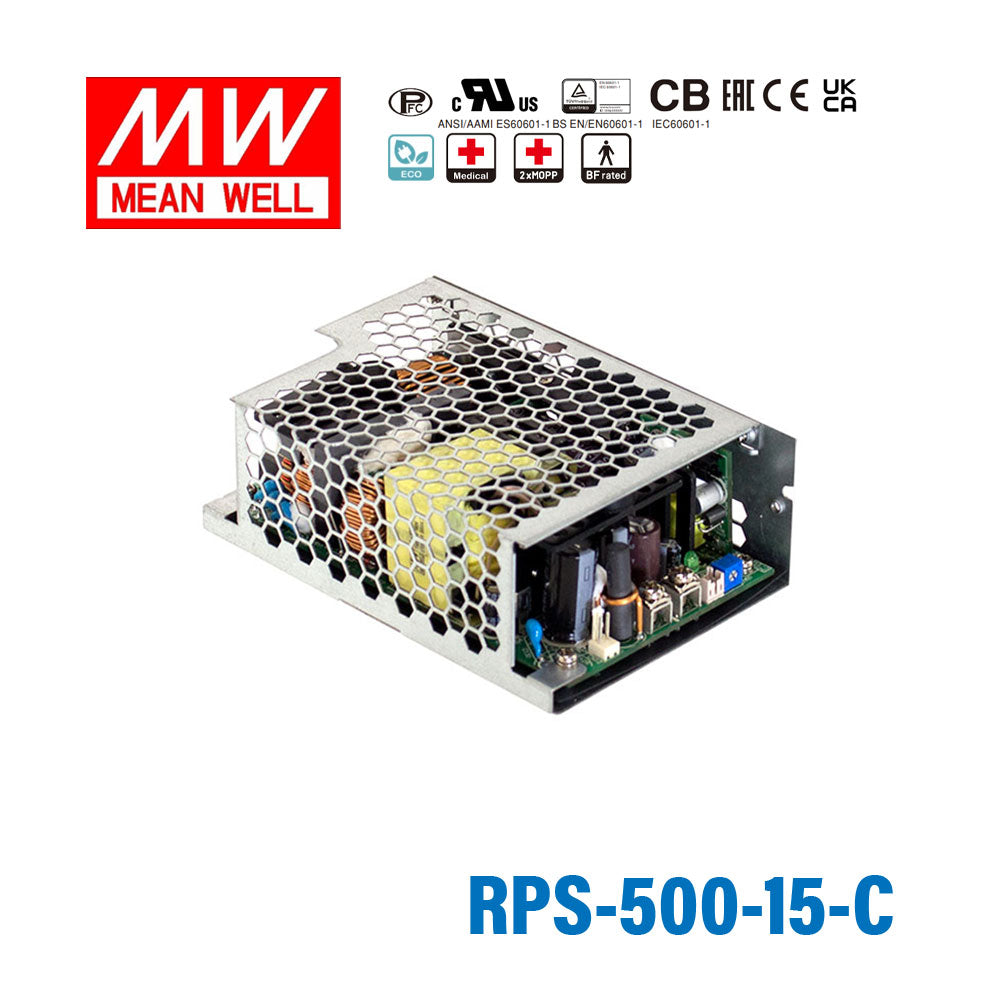

Mean Well RPS-500-15-C Green Power Supply W 15V 20.7A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-15-C Green Power Supply W 15V 20.7A - Medical Pow...
The RPS-500-15 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating310.5 Watt
-
Output Voltage15 Volt
-
Rated Current20.7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can the RPS-500-15-C be used for 15V automation equipment in a compact enclosure?
Yes, it provides constant-voltage 15V output at 20.7A and 310.5W in a 130.0 × 86.0 × 43.0 mm package. It is appropriate for 15V automation equipment that needs substantial power without moving to the larger 499.5W class.
Is this power supply appropriate for 15V medical subsystems?
This model is medical safety approved and rated for 15V, 20.7A, and 310.5W. It fits medical device subsystems that use a 15V rail and need the listed extreme low leakage current characteristic.
Can I use the RPS-500-15-C for 15V industrial test or embedded equipment?
It can be used where the equipment needs constant 15V output and the load stays within 20.7A and 310.5W. That makes it a practical fit for higher-demand 15V industrial test, embedded, or control systems.
Will the RPS-500-15-C handle wide temperature conditions?
The specified operating temperature range is -30°C to +70°C, so it is designed for broad ambient conditions. No IP rating is listed in the provided specs, so that does not indicate suitability for exposed outdoor use.
How does the RPS-500-15-C compare with other 15V models in the series?
Within the 15V RPS lineup, listed outputs are 30W 2A, 45W 3A, 60W 4A, 65.1W 4.34A, 75W 5A, 84W 8A, 112.5W 7.3A, 114W 7.6A, 141W 9.4A, 200W 13.33A, 250.5W 16.7A, 310.5W 20.7A, 319.5W 21.3A, and 499.5W 33.3A. The RPS-500-15-C is slightly below the 319.5W 21.3A version and well below the 499.5W 33.3A SF and TF models.
