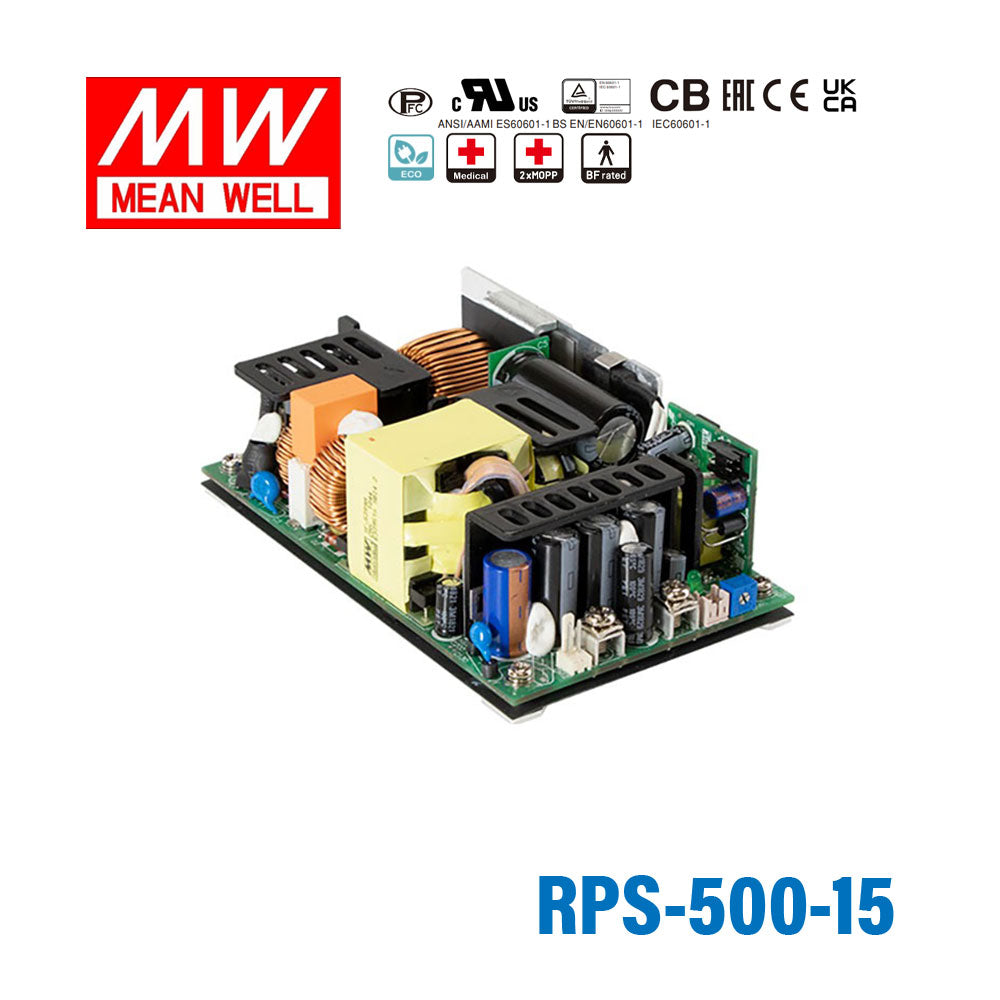

Mean Well RPS-500-15 Green Power Supply W 15V 21.3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-15 Green Power Supply W 15V 21.3A - Medical Power...
The RPS-500 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating319.5 Watt
-
Output Voltage15 Volt
-
Rated Current21.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-15 for a 15V industrial control or instrumentation system?
Yes, this is a constant-voltage 15V model rated for 21.3A and 319.5W. It is suited to 15V industrial control or instrumentation loads that need more output than lower-power 15V RPS units.
Is the RPS-500-15 suitable for 15V medical electronics inside diagnostic or monitoring equipment?
The unit is medical safety approved and provides 15V output up to 21.3A and 319.5W. That makes it relevant for medical equipment subsystems that require a 15V rail and benefit from the listed extreme low leakage current feature.
Can this model support a 15V embedded or automation platform with several DC loads?
It can support a 15V embedded or automation platform if the combined demand stays within 21.3A and 319.5W. Within the RPS family, that places it above 15V models rated at 16.7A, 13.33A, 9.4A, 8A, 7.6A, and 7.3A.
Is the RPS-500-15 meant for outdoor use?
The operating temperature range is -30°C to +70°C, which supports a wide range of equipment environments. The provided specs do not show an IP rating, so it is better matched to protected indoor or enclosed use rather than exposed outdoor mounting.
How does the RPS-500-15 compare with other 15V RPS models?
The listed 15V RPS outputs are 30W 2A, 45W 3A, 60W 4A, 65.1W 4.34A, 75W 5A, 84W 8A, 112.5W 7.3A, 114W 7.6A, 141W 9.4A, 200W 13.33A, 250.5W 16.7A, 310.5W 20.7A, 319.5W 21.3A, and 499.5W 33.3A. This model is one of the higher-output 15V options, sitting above 310.5W 20.7A and below the 499.5W 33.3A SF and TF versions.
