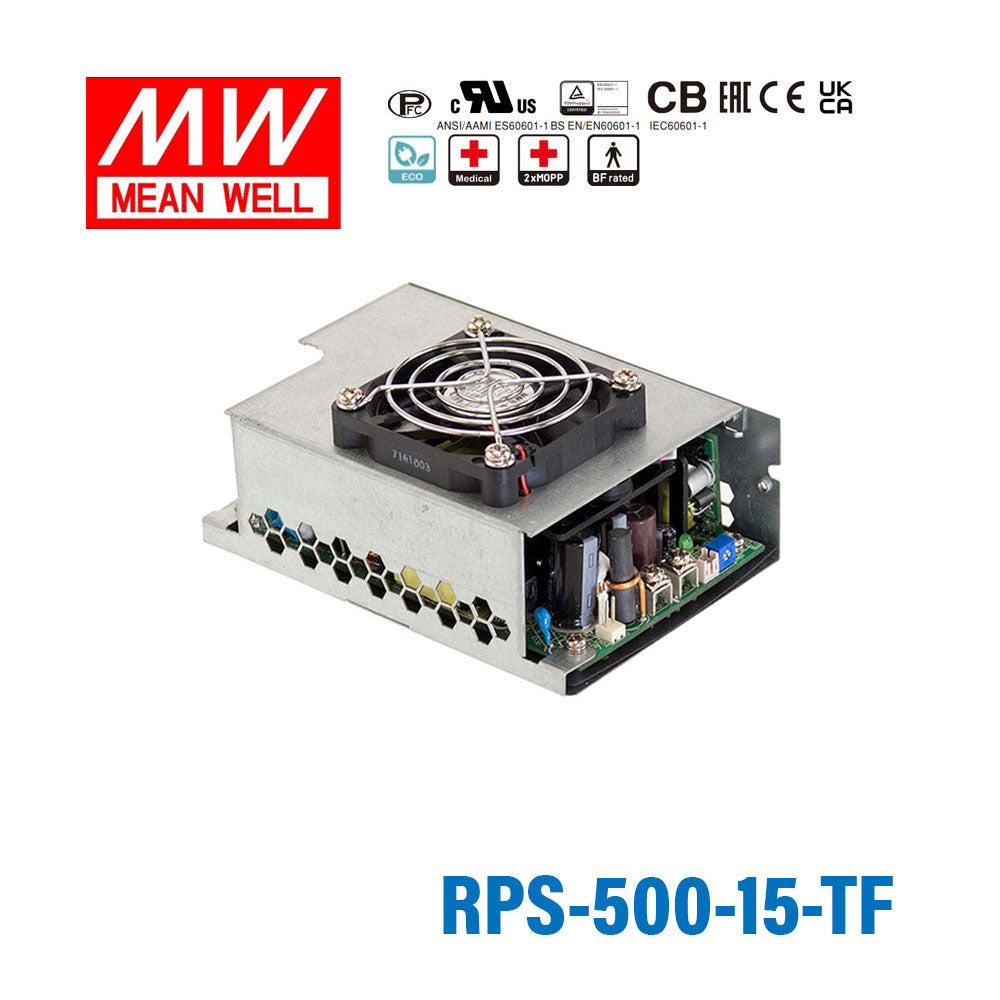

Mean Well RPS-500-15-TF Green Power Supply W 15V 33.3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-15-TF Green Power Supply W 15V 33.3A - Medical Po...
The RPS-500-15 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.5 Watt
-
Output Voltage15 Volt
-
Rated Current33.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the RPS-500-15-TF be used for a 15V industrial motion or control subsystem with higher current demand?
Yes, if the subsystem is built for a 15V constant-voltage source and its demand stays within 33.3A and 499.5W. The 80-264VAC input also supports use across a broad AC input range.
Is this a good fit for a 15V embedded compute or edge device power stage?
It can be, when the equipment specifically requires 15V DC and needs up to 33.3A available. The constant-voltage operating mode means it is intended for loads designed around a fixed 15V bus.
Can I use this for a 15V medical analyzer or diagnostic platform?
It is suited to 15V systems where medical safety approval and extreme low leakage current are relevant. The load still needs to stay within 499.5W and 33.3A, and the device must be designed for a 15V constant-voltage supply.
Would this model work in a compact industrial enclosure that still needs close to 500W at 15V?
It may suit that type of build because it provides 499.5W at 15V with up to 33.3A output. Its listed size is 130.0 x 86.0 x 66.5 mm, which differs from other 15V RPS-500 variants and may affect mechanical fit.
What is the difference between the RPS-500-15, RPS-500-15-C, RPS-500-15-SF, and RPS-500-15-TF?
The listed 15V RPS-500 variants are RPS-500-15 at 319.5W and 21.3A, RPS-500-15-C at 310.5W and 20.7A, and both RPS-500-15-SF and RPS-500-15-TF at 499.5W and 33.3A. For the TF version specifically, the dimensions are 130.0 x 86.0 x 66.5 mm and the weight is 0.58 kg.
Can the RPS-500-15-TF be used where ambient temperatures swing widely?
The specified operating range is -30°C to +70°C, so it covers a wide temperature span. No IP rating is listed in the provided data, so the specs do not establish outdoor exposure protection.
