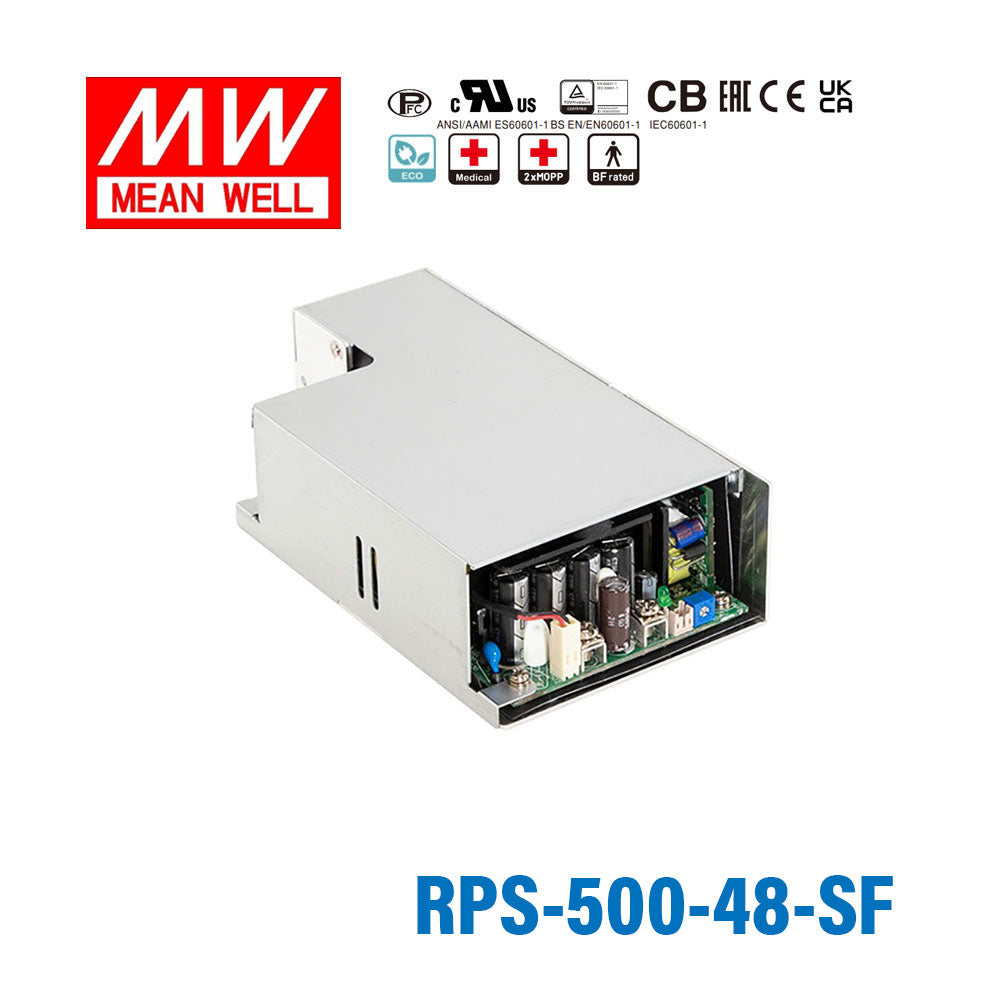

Mean Well RPS-500-48-SF Green Power Supply W 48V 10.4A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-48-SF Green Power Supply W 48V 10.4A - Medical Po...
The RPS-500-48 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.2 Watt
-
Output Voltage48 Volt
-
Rated Current10.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.3 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.41 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-48-SF for a 48V industrial control cabinet with multiple loads?
It can fit a 48V control cabinet when the combined load stays within 10.4A and 499.2W. Because it is a constant voltage model, it is intended for 48V equipment rather than mixed-voltage loads.
Is this power supply suitable for 48V automation equipment or embedded systems that need higher power?
Yes, it is aimed at 48V applications that need more capacity than lower-power medical open-frame supplies. The output is 48V at up to 10.4A, which gives a maximum of 499.2W.
Can I use this for a 48V medical or laboratory device power stage?
This model is medical safety approved and is described as having extreme low leakage current. That makes it relevant for medical or lab equipment designs that need a 48V constant voltage supply up to 10.4A and 499.2W.
Is the RPS-500-48-SF appropriate for outdoor or washdown environments?
No IP rating is listed in the provided specs, so it is better suited to indoor equipment or use inside an enclosure than exposed outdoor or washdown locations. Its operating temperature range is -30°C to +70°C, so temperature tolerance is broad, but environmental sealing is not specified.
When does the compact size of the RPS-500-48-SF matter in equipment selection?
This version measures 160.0 × 86.0 × 43.0 mm and weighs 0.64 kg, so it is typically considered when a 499.2W 48V supply must fit into a relatively compact internal space. It also accepts 80-264VAC input, which helps in equipment designed for wide AC input ranges.
