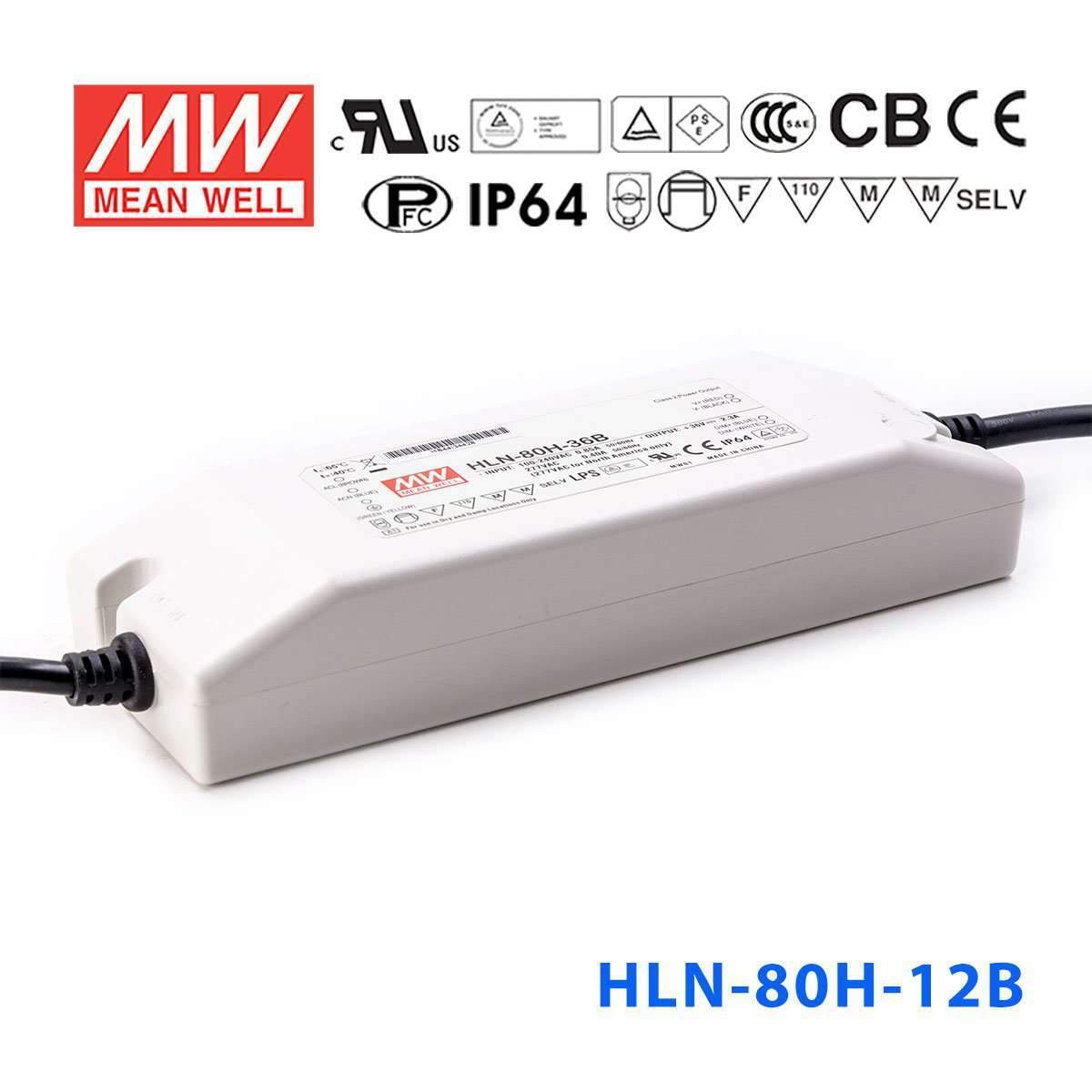

Mean Well HLN-80H-12B Power Supply 60W 12V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-12B Power Supply 60W 12V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-12B for dimmable 12V LED strip runs?
Yes, if the total strip load stays within 60W and 5A and the strip is compatible with the driver's 7-12V constant-current range. This B-version is the dimmable 12V option in the HLN-80H family.
Is the HLN-80H-12B a good fit for 12V sign lighting with brightness control?
It can fit 12V sign lighting that needs dimming, as long as the load does not exceed 60W or 5A. The IP64 enclosure and signage-oriented series design also suit signs used in dusty or splash-prone locations.
Can this driver power 12V decorative lighting in patios or covered outdoor spaces?
It can be used for 12V decorative lighting assemblies where the load matches 7-12V constant current and stays within 60W. IP64 protection and an operating range of -40°C to +50°C make it suitable for covered outdoor spaces exposed to weather splash and dust.
What is the maximum LED strip length estimate for the HLN-80H-12B?
Calculate it from power: maximum strip length = 60W divided by the strip's rated watts per meter. Check your strip rated power per meter, and verify that the strip is intended to work with a 12V constant-current driver before using that estimate.
Is the HLN-80H-12B suitable for wet or outdoor locations?
Its IP64 rating means the enclosure is designed to resist dust and splashing water, so it is appropriate for many outdoor or damp-location lighting uses. That rating does not indicate submersion protection, so it is for splash exposure rather than fully wet immersion conditions.
