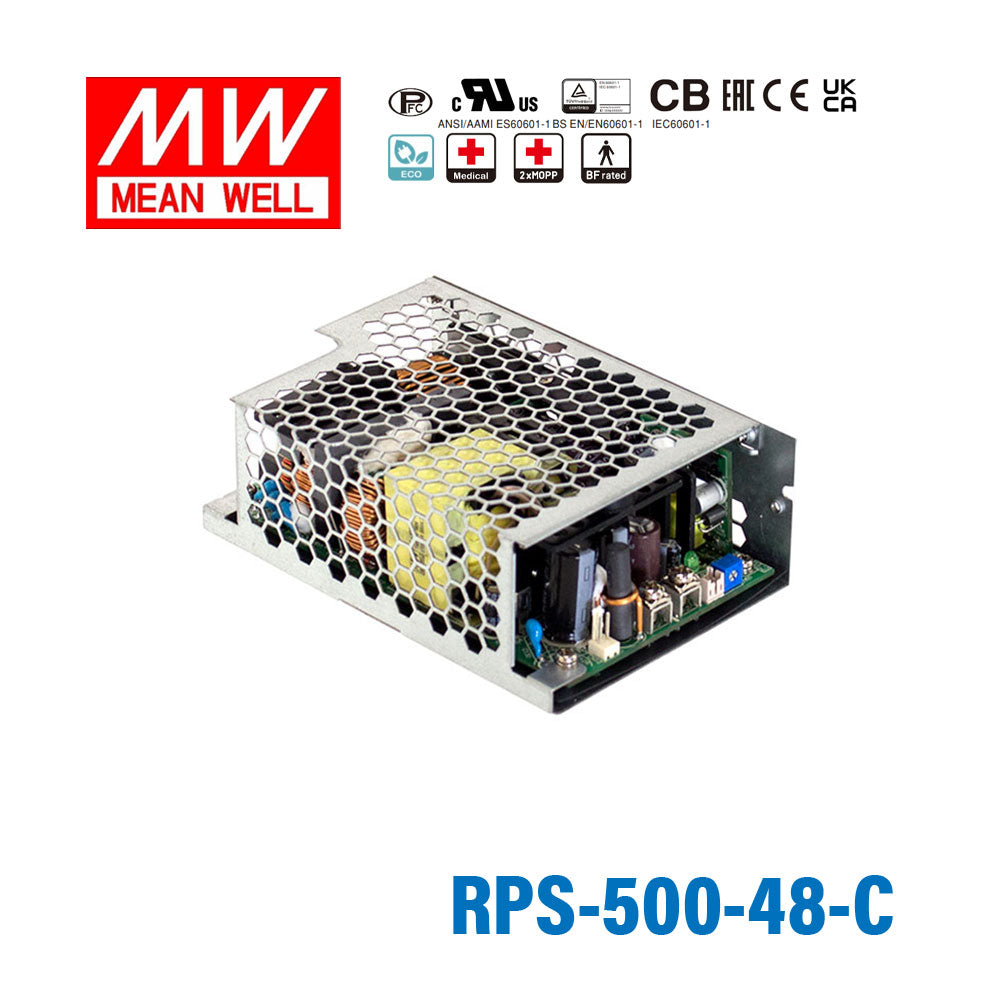

Mean Well RPS-500-48-C Green Power Supply W 48V 6.5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-48-C Green Power Supply W 48V 6.5A - Medical Powe...
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating312 Watt
-
Output Voltage48 Volt
-
Rated Current6.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.19 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-500-48-C for a 48V PLC, controller, or automation cabinet?
Yes, this model provides constant 48V output up to 6.5A with 312W total power. It is appropriate for 48V automation and control applications that need a regulated DC source within that rating.
Is the RPS-500-48-C suitable for 48V medical or diagnostic equipment?
It can be used where the equipment requires 48V DC and stays within 6.5A and 312W. The listed features include medical safety approval and extreme low leakage current, which are relevant for medical device power design.
Can this model power 48V embedded or OEM systems with several loads on one DC bus?
Yes, provided the combined 48V demand does not exceed 6.5A or 312W. Its 130.0 x 86.0 x 43.0 mm form factor also supports compact OEM packaging.
Would the RPS-500-48-C work for 48V equipment sold internationally?
Yes, the 80-264VAC input range supports use across regions with different AC mains standards. The output remains constant at 48V for loads up to 6.5A.
What is the difference between the RPS-500-48-C and other 48V RPS-500 models?
The RPS-500-48-C is rated at 312W and 6.5A, while the RPS-500-48 is 321.6W and 6.7A and the RPS-500-48-SF and RPS-500-48-TF are 499.2W and 10.4A. The RPS-500-48-C dimensions are 130.0 x 86.0 x 43.0 mm.
Is this power supply appropriate for outdoor control boxes?
The operating temperature range is -30°C to +70°C, which supports a wide range of indoor ambient conditions. No IP rating is listed, so it should be used in a protected enclosure rather than in direct outdoor exposure.
