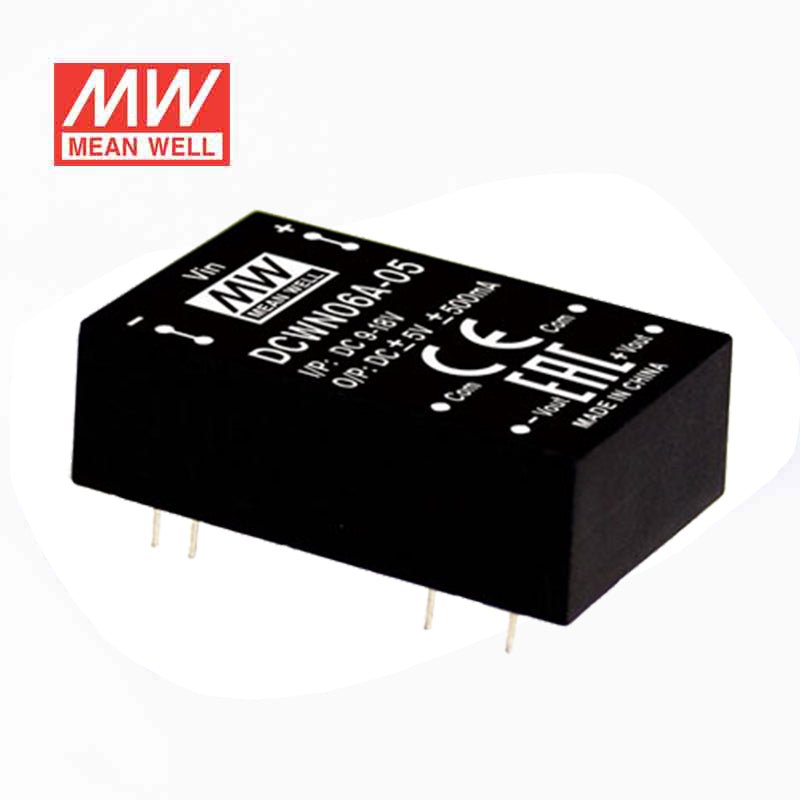

Mean Well DCWN06A-05 DC-DC Converter - 6W 9~18V DC in 5V out
Description
Description
The DCWN06A is a 6W Mean Well. power converter. and an input range of 9~18Vdc.
Key Features
- ✓ Input voltage range: 9~18Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+100℃
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.5 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN06A-05 typically used for?
The Mean Well DCWN06A-05 is typically used as a compact isolated DC-DC converter for stepping a 9-18V DC input down to a regulated 5V output. With 6W rated power and 0.5A output current, it is suited to low-power embedded, control, and interface electronics that need more output headroom than a 3W converter.
Is the DCWN06A-05 a good fit for low-power 5V circuits from a 12V-class DC source?
Yes. The DCWN06A-05 is designed around a 9-18V input range and provides a 5V output at up to 0.5A, making it well suited to low-power 5V rails derived from 12V-class DC systems.
Why choose the DCWN06A-05 over a smaller 3W DCWN model?
The main advantage is output capacity. At 6W and 0.5A, the DCWN06A-05 offers more headroom for 5V loads than 3W alternatives such as the DCWN03A-05 or DCWN03E-05, while keeping the same compact isolated module style.
Is the DCWN06A-05 suitable for wide operating temperatures?
Yes. The published working temperature range is -40°C to +90°C, supporting use in a wide range of industrial and embedded environments when the converter is used within its electrical limits.
How does the DCWN06A-05 compare with other DCWN06A models?
The DCWN06A-05 is the 5V output version in the 6W 06A group, while the DCWN06A-12 and DCWN06A-15 provide 12V and 15V outputs from the same 9-18V input class. The main difference is the output voltage required by the downstream electronics.
