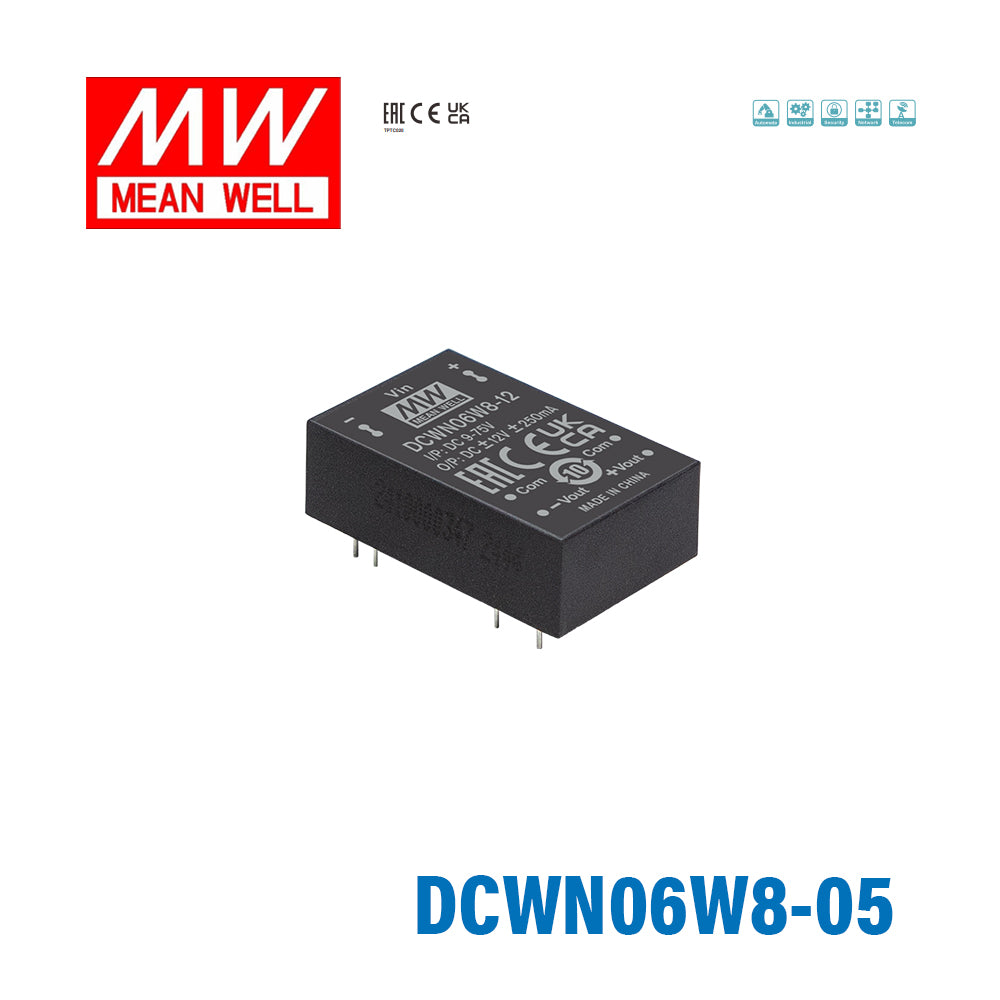

Mean Well DCWN06W8-05 DC-DC Converter - 6W 9~75V DC in ±5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DCWN06W8-05 DC-DC Converter - 6W 9~75V DC in ±5V out
The DCWN06W8 is a 6W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+95℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE (Typ.) EMC EMISSION EMC IMMUNITY OTHERS MTBF (Typ.) DIMENSION (L*W*H) CASE MATERIAL PACKING 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
What applications is the Mean Well DCWN06W8-05 suited for?
This model is a 6W isolated DC-DC converter designed for systems that need a regulated ±5V output from a very wide DC input range. It is a practical fit for industrial, control, telecom, and mobile power environments where input voltage can vary significantly between 9V and 75V DC. Its compact DIP24 form factor also makes it suitable where board space is limited.
What input voltage range does the DCWN06W8-05 support?
The DCWN06W8-05 has an 8:1 ultra-wide input range of 9V to 75V DC. Mean Well lists nominal input points of 12V, 24V, 36V, 48V, and 72V within that range. It also includes under-voltage lockout, with startup at 8.8V DC and shutdown at 8V DC.
What output does this DC-DC converter provide?
This version provides a ±5V DC output and is rated at 6W. It is intended for applications that require a dual-output supply rather than a single positive rail. The converter also operates without a minimum load requirement.
Is the DCWN06W8-05 suitable for harsh temperature environments?
Yes, this model is specified for operation from -40°C to +95°C. That wide temperature range makes it suitable for demanding indoor equipment and many industrial environments, provided the application follows the product's derating guidance. Buyers needing extended environmental tolerance will usually view this as a stronger option than basic commercial-grade converters.
What protection and isolation features does the DCWN06W8-05 include?
The DCWN06W8-05 includes continuous short-circuit protection with automatic recovery, overload protection, over-voltage protection, and under-voltage lockout. It also provides 3KV DC input-to-output isolation. These features help support use in systems where input instability and fault protection are important selection factors.
How does the DCWN06W8-05 differ from narrower-input DC-DC converters?
A key difference is its 8:1 input range, which lets one model cover a much broader span of DC source voltages than converters designed for a narrow nominal input. This can simplify product selection in fleets or equipment platforms that may use different DC buses. It also offers up to 86% efficiency and Class B radiated compliance to EN55032 without additional components.
What compliance and warranty details are provided for this model?
Mean Well specifies EAC TP TC 020/2011 approval for this converter. The product is also backed by a 3-year warranty. For buyers comparing industrial power modules, those details can be useful when evaluating long-term support and compliance needs.
