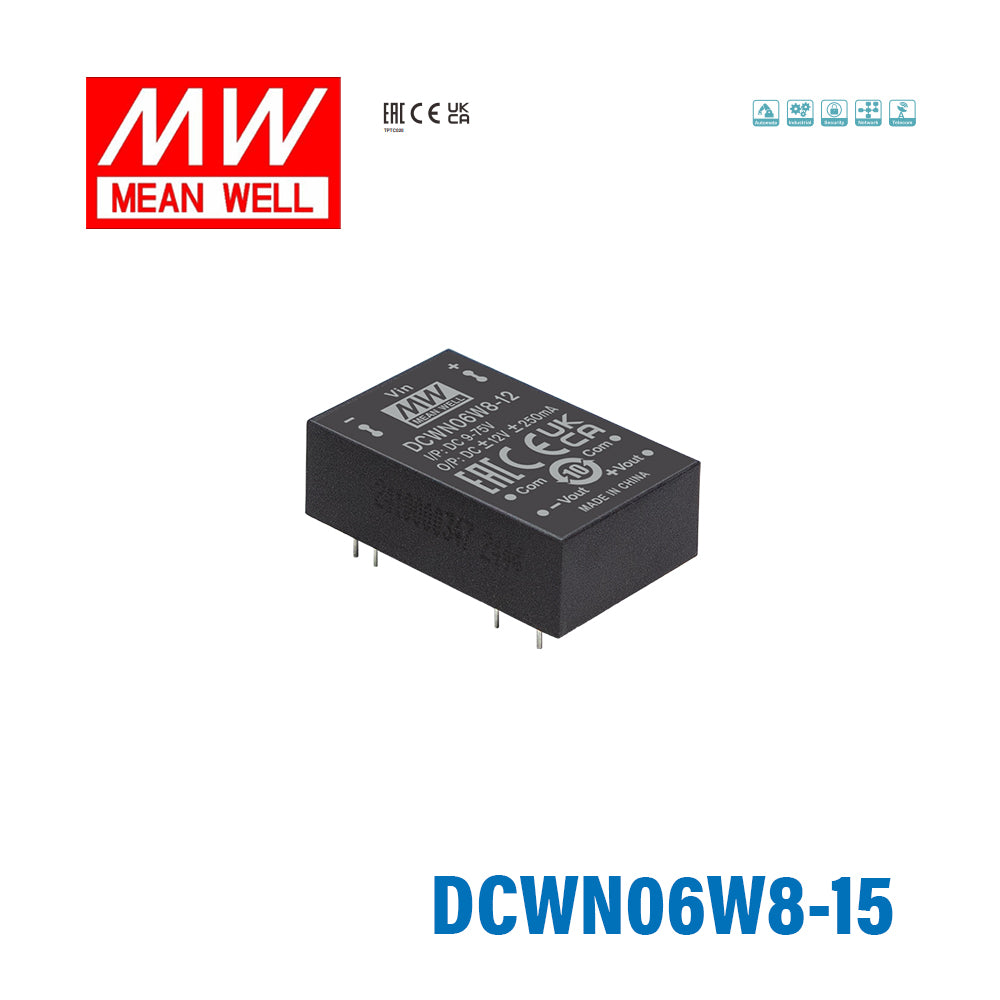

Mean Well DCWN06W8-15 DC-DC Converter - 6W 9~75V DC in ±15V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DCWN06W8-15 DC-DC Converter - 6W 9~75V DC in ±15V out
The DCWN06W8 is a 6W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+95℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE (Typ.) EMC EMISSION EMC IMMUNITY OTHERS MTBF (Typ.) DIMENSION (L*W*H) CASE MATERIAL PACKING 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
What is the input and output range of the Mean Well DCWN06W8-15?
This DC-DC converter accepts an ultra-wide 9 to 75V DC input range. It provides a regulated ±15V DC output and is rated for 6W total output power. That wide input range makes it useful in systems with varying nominal DC bus voltages.
What types of applications is the DCWN06W8-15 designed for?
The DCWN06W8-15 is suited to embedded and industrial DC power applications that need compact isolated power conversion in a DIP24 form factor. Its 8:1 input range and 3KVdc input-to-output isolation make it a practical choice for equipment operating across multiple DC supply standards. It is especially relevant where stable bipolar output rails are needed from a wide DC source.
Can this converter handle harsh temperature conditions?
Yes. The DCWN06W8-15 has an operating temperature range of -40 to +95 degrees C, which supports use in demanding industrial environments. Buyers should still review derating requirements at higher temperatures because the specification notes operation should follow the derating curve.
What protection features are included in the DCWN06W8-15?
This model includes short circuit, overload, over voltage, and under voltage lockout protection. Short circuit protection is continuous with automatic recovery, while overload protection uses hiccup mode and recovers after the fault is removed. These built-in protections help support reliability in fault conditions.
Does the DCWN06W8-15 require a minimum load to regulate properly?
No. Mean Well specifies that this model does not require a minimum load. That can simplify product selection in systems where load conditions vary or may be very light during standby operation.
How does the DCWN06W8-15 stand out from narrower-input DC-DC converters?
A key differentiator is its 8:1 ultra-wide 9 to 75V DC input range, which covers several common nominal DC system voltages in one model. It also combines that range with up to 86% efficiency, 3KVdc isolation, and compliance to BS EN/EN55032 radiated Class B without additional components. That can reduce the need to stock multiple input-specific converter variants.
