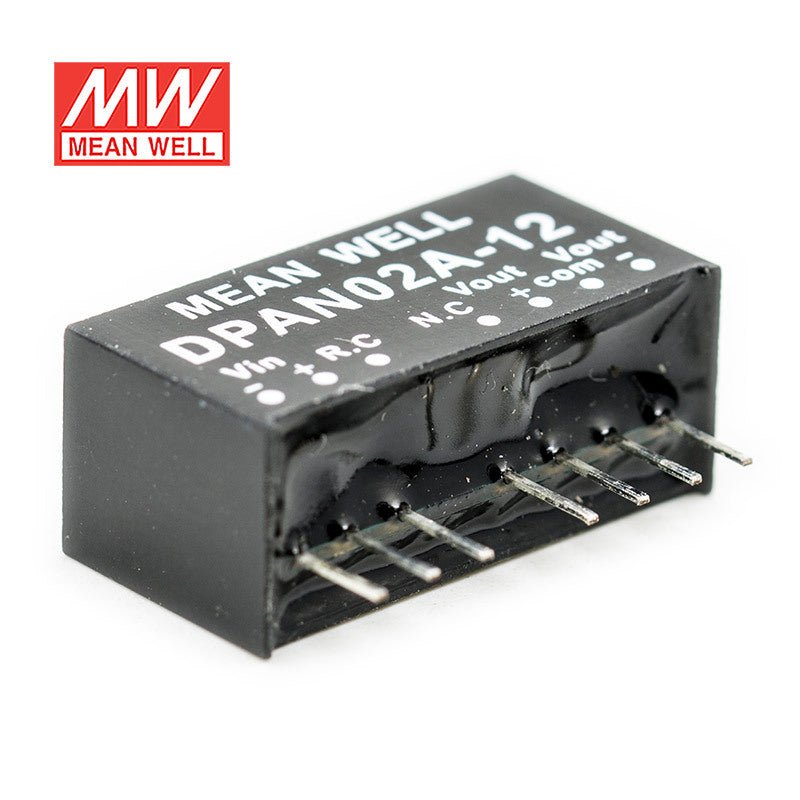

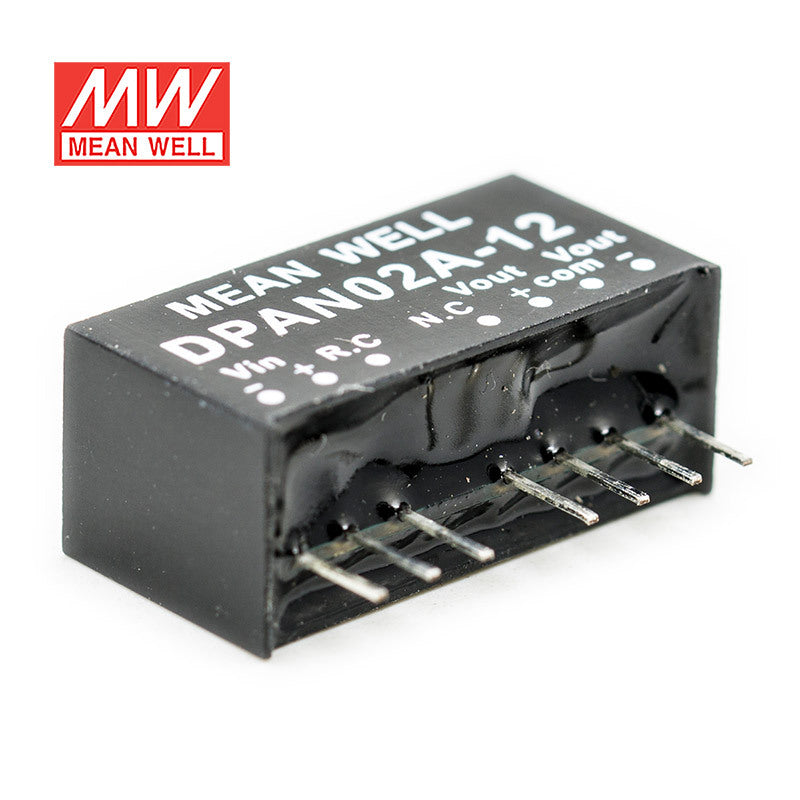

Mean Well DPAN02A-12 DC-DC Converter - 2W - 9~18V in ±12V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02A-12 to power analog signal-conditioning circuits in industrial control equipment?
It can fit low-power analog sections that need a regulated ±12V output and stay within the unit's 2W rating. The converter is specified for 9-18VAC input and 0.08A output current, so it is better suited to small signal-conditioning or interface circuits than higher-load control hardware.
Is the DPAN02A-12 suitable for embedded test or measurement boards that need dual 12V rails?
Yes, this model is aimed at compact low-power designs that need ±12V rails from a 9-18VAC source. With 2W power, 0.08A output current, and a 21.8 × 11.1 × 9.2 mm package, it matches space-constrained embedded measurement or interface boards.
Can the DPAN02A-12 be used in automation panels for isolated low-power interface stages?
It is a reasonable fit for low-power interface or conditioning stages where ±12V constant-voltage output is required. The operating temperature range of -40°C to +90°C also supports use in industrial environments that see wider temperature swings.
What is the difference between the DPAN02A-05, DPAN02A-12, and DPAN02A-15?
All three models are 2W converters with 9-18VAC input in the same 21.8 × 11.1 × 9.2 mm package. The DPAN02A-05 is the 5V version, the DPAN02A-12 provides ±12V with 0.08A output current, and the DPAN02A-15 provides ±15V with 0.07A output current.
Is the DPAN02A-12 suitable for outdoor or harsh-environment use?
The wide -40°C to +90°C operating range supports demanding temperature conditions, but no IP rating is listed in the provided specs. That means temperature capability is defined, while dust and water protection are not, so outdoor exposure would depend on the enclosure used around the converter.
