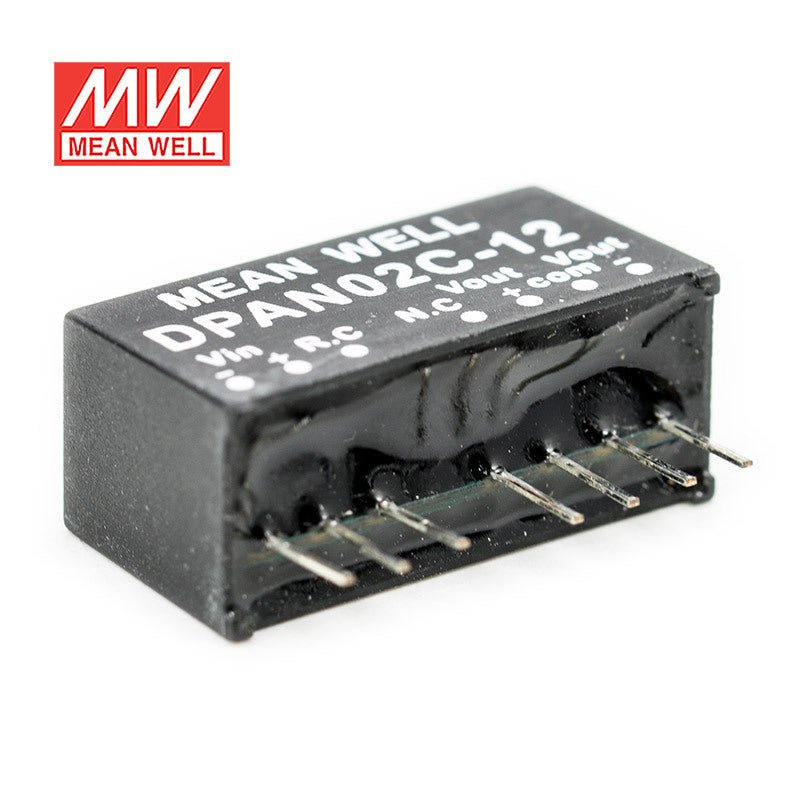

Mean Well DPAN02C-12 DC-DC Converter - 2W - 36~75V in ±12V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02C-12 for a 12V control or interface circuit in industrial equipment?
Yes, it is suited to constant-voltage 12V applications where the source falls within 36-75VAC and the load stays within 2W. That makes it appropriate for low-power control, interface, and signal-handling sections inside industrial equipment.
Is the DPAN02C-12 a good fit for embedded analog or instrumentation sections that run on 12V?
It can be used where an embedded analog or instrumentation stage requires a 12V constant-voltage rail and modest power demand. The 2W rating and 21.8 × 11.1 × 9.2 mm size make it better aligned with compact low-power electronics than with larger 12V loads.
Would the DPAN02C-12 work for low-power automation modules powered from 36-75VAC?
It is intended for low-power automation modules that need 12V output and have an input available in the 36-75VAC range. Because the converter is rated at 2W, it is best used for light electronics rather than power-hungry actuators or larger subsystems.
Can this converter handle cold warehouses or hot electrical enclosures?
The specified operating range is -40°C to +90°C, so the temperature rating covers both cold and hot equipment conditions. The specs do not list an IP rating, so they do not confirm suitability for exposed outdoor mounting.
What is the difference between the DPAN02C-12 and the other DPAN02C models?
The DPAN02C-12, DPAN02C-05, and DPAN02C-15 all share a 2W rating and the same 21.8 × 11.1 × 9.2 mm form factor. The main difference is output: the -05 version is 5V, the -12 version is 12V at 0.08A, and the -15 version is 15V at 0.07A.
