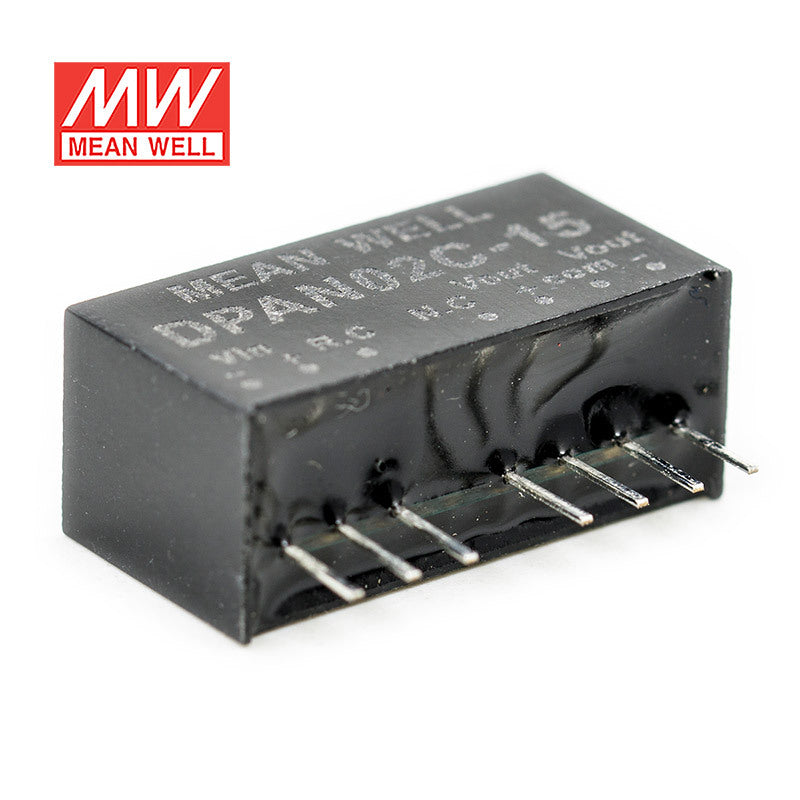

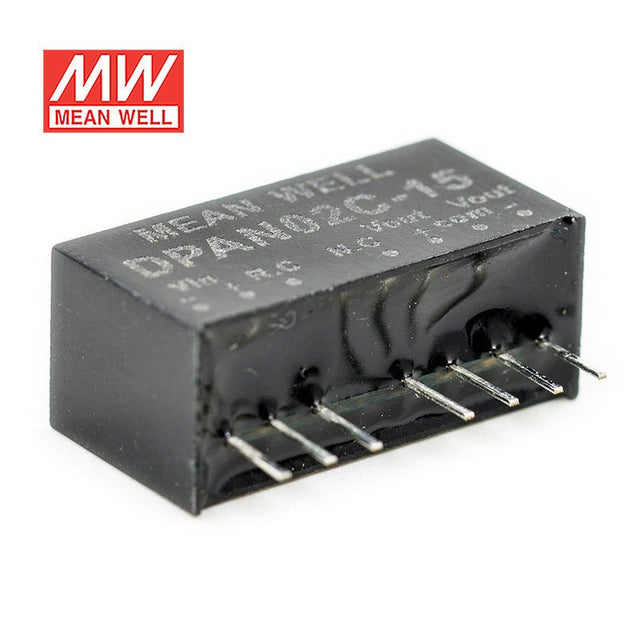

Mean Well DPAN02C-15 DC-DC Converter - 2W - 36~75V in ±15V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the DPAN02C-15 be used for a 15V rail in industrial instrumentation or control electronics?
Yes, it fits low-power instrumentation and control electronics that need a constant 15V output from a 36-75VAC input source. With a 2W rating, it is intended for light electronic loads rather than higher-demand 15V equipment.
Is this 15V converter suitable for embedded analog signal-conditioning circuits?
It can be used in embedded analog or signal-conditioning sections that require a 15V rail and stay within the 2W output rating. The compact 21.8 × 11.1 × 9.2 mm size is also useful where PCB or module space is tight.
Would the DPAN02C-15 make sense in telecom or automation boards with a wide input range?
It is designed for applications that need 15V constant-voltage output and can take advantage of the 36-75VAC input range. That makes it relevant for low-power electronics on automation or communications boards where the available source falls in that range.
Is the DPAN02C-15 rated for outdoor conditions or only controlled enclosures?
Its operating temperature span of -40°C to +90°C supports demanding temperature conditions inside equipment. No IP rating is provided in the listed specs, so outdoor weather exposure is not confirmed by the product data here.
How should I choose between the DPAN02C-15 and its DPAN02C siblings?
All DPAN02C versions listed here are 2W converters in the same 21.8 × 11.1 × 9.2 mm package. The difference is output level: DPAN02C-05 is 5V, DPAN02C-12 is 12V at 0.08A, and DPAN02C-15 is 15V at 0.07A.
