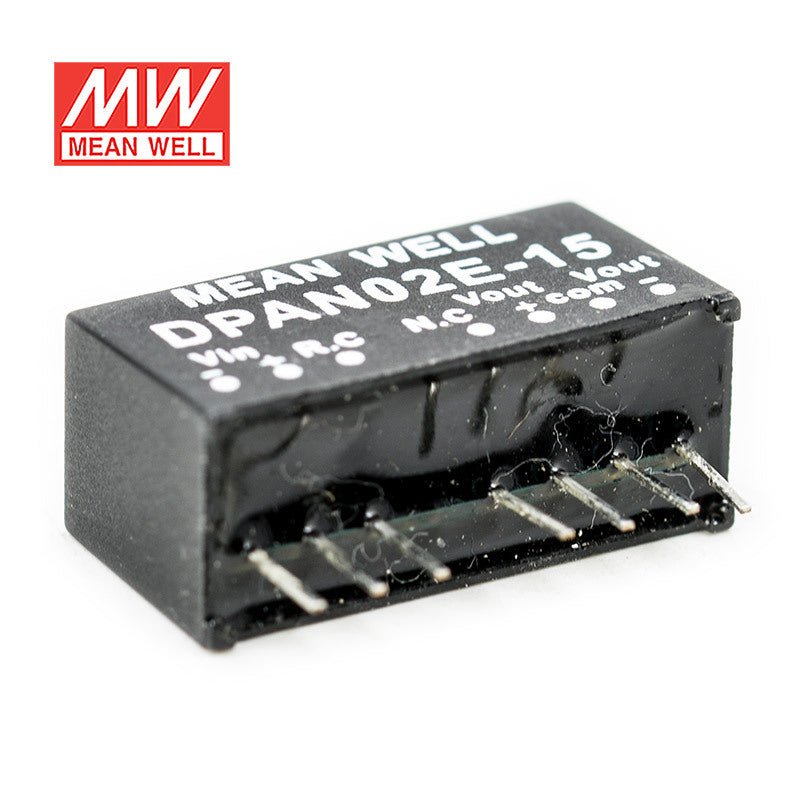

Mean Well DPAN02E-15 DC-DC Converter - 2W - 4.5~9V in ±15V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage4.5V~9V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02E-15 for an embedded analog circuit that needs dual 15V rails from a low-voltage AC source?
Yes. This model accepts 4.5-9VAC input and provides constant-voltage ±15V output at 2W. It is suited to low-power embedded analog sections that need ±15V rails within that input range.
Is the DPAN02E-15 suitable for signal conditioning or measurement boards in industrial equipment?
It can be a fit for low-power signal conditioning or measurement circuits that require ±15V output. The unit is rated for 2W with 0.07A output current and operates from 4.5-9VAC input.
Can this converter be used inside compact automation electronics where board space is limited?
Yes. Its body size is 21.8 × 11.1 × 9.2 mm, which makes it appropriate for compact industrial or embedded assemblies. The converter still provides constant-voltage ±15V output at 2W.
Is the DPAN02E-15 appropriate for outdoor or harsh-temperature equipment?
Its operating temperature range is -40°C to +90°C, so it can handle wide temperature swings in protected equipment. No IP rating is listed in the provided specs, so it is better suited to enclosed or indoor installations rather than exposed outdoor use.
How does the DPAN02E-15 compare with the other DPAN02E models?
The DPAN02E-15, DPAN02E-12, and DPAN02E-05 are all 2W models in the same series. The DPAN02E-15 provides 15V at 0.07A, the DPAN02E-12 provides 12V at 0.08A, and the DPAN02E-05 provides 5V at 200A.
