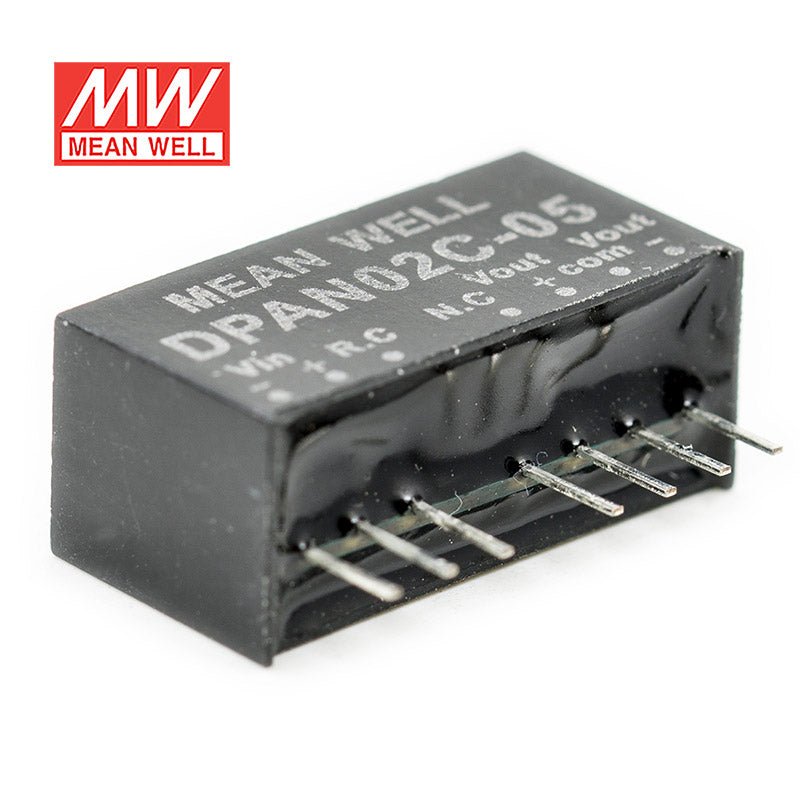

Mean Well DPAN02C-05 DC-DC Converter - 2W - 36~75V in ±5V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02C-05 for a 5V rail in a telecom or industrial control cabinet?
It is intended for constant-voltage 5V output applications where the available input is 36-75VAC and the power demand stays within 2W. That makes it a fit for low-power control, signaling, and interface sections that need a compact converter rather than a higher-power supply.
Is the DPAN02C-05 appropriate for embedded monitoring or sensor interface circuits that need 5V?
Yes, it can serve embedded monitoring or sensor interface circuits that require a constant 5V output and only need up to 2W. The 21.8 × 11.1 × 9.2 mm package also suits dense industrial or embedded assemblies where board space is limited.
Can this 5V model be used in distributed automation electronics with a 36-75VAC source?
It is a better fit for low-power automation electronics that need 5V output from a 36-75VAC input range. Since the unit is rated at 2W, it is best matched to light control and signal-processing loads rather than larger field devices.
Is the DPAN02C-05 suitable for outdoor or harsh-temperature installations?
The operating temperature range is -40°C to +90°C, which supports use across very cold and very hot equipment environments. However, no IP rating is listed, so the provided specs do not establish suitability for direct outdoor exposure or washdown areas.
How does the DPAN02C-05 compare with the other DPAN02C versions?
Within the DPAN02C series, all three models are rated at 2W and share the same 21.8 × 11.1 × 9.2 mm dimensions. The DPAN02C-05 provides 5V output, while the DPAN02C-12 provides 12V at 0.08A and the DPAN02C-15 provides 15V at 0.07A.
