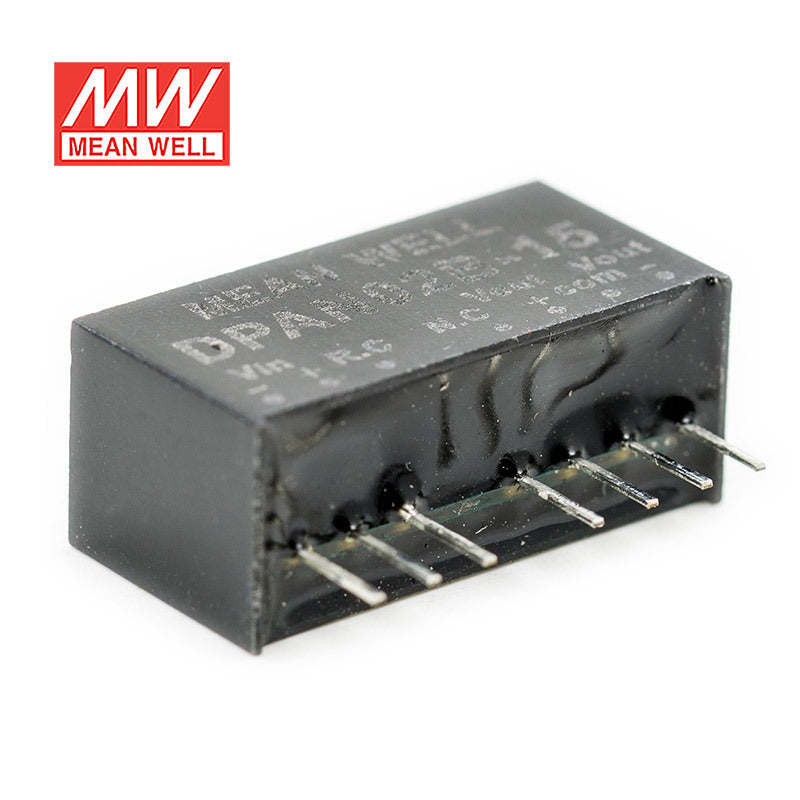

Mean Well DPAN02B-15 DC-DC Converter - 2W - 18~36V in ±15V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02B-15 for low-power instrumentation circuits that need ±15V output?
Yes, this model is suitable for low-power instrumentation and analog support circuits where ±15V output is required from an 18-36VAC input. Its 2W rating and 0.07A output current place it in the small-signal power category.
Is the DPAN02B-15 a good match for compact embedded control hardware with dual 15V rails?
It can fit embedded hardware that needs ±15V constant-voltage output and stays within the converter's 2W capacity. The 21.8 × 11.1 × 9.2 mm form factor supports compact board-level designs.
Can the DPAN02B-15 be used in industrial automation equipment for isolated low-power analog stages?
It is appropriate for low-power analog or conditioning stages that need a regulated ±15V rail from an 18-36VAC source. The -40°C to +90°C operating range also aligns with industrial equipment that sees broader temperature variation.
What are the main differences between the DPAN02B-05, DPAN02B-12, and DPAN02B-15?
These three models share the same 2W power rating, 18-36VAC input range, and 21.8 × 11.1 × 9.2 mm dimensions. The difference is the output version: 5V for DPAN02B-05, ±12V at 0.08A for DPAN02B-12, and ±15V at 0.07A for DPAN02B-15.
Is the DPAN02B-15 suitable for outdoor installations?
The converter is specified for -40°C to +90°C operation, so it can handle a wide temperature span. However, no IP rating is listed, so the specs do not define resistance to rain, washdown, or dust without additional enclosure protection.
