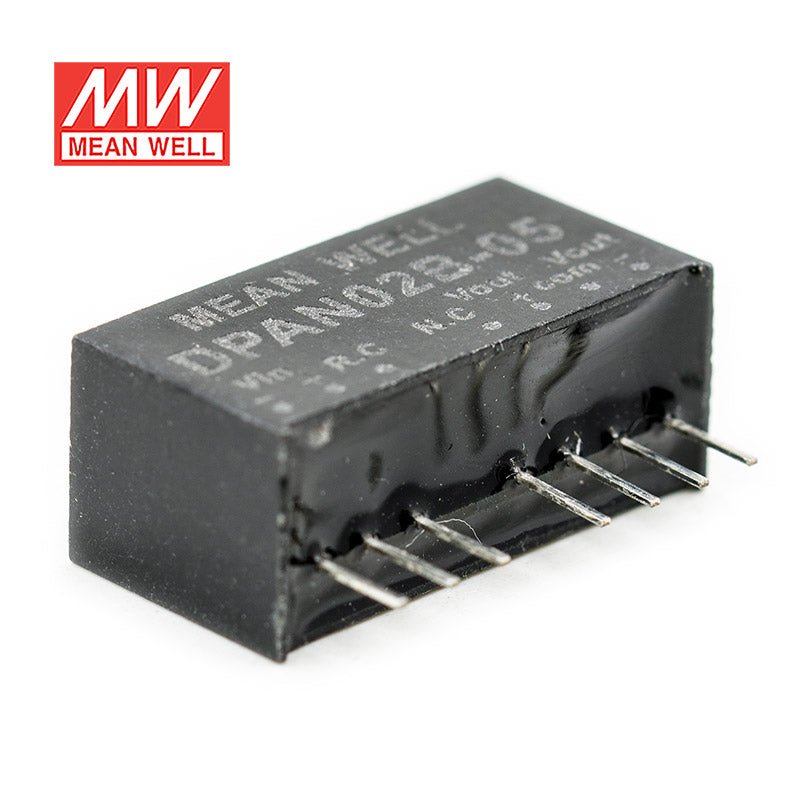

Mean Well DPAN02B-05 DC-DC Converter - 2W - 18~36V in ±5V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02B-05 to power 5V logic in industrial or embedded equipment from an 18-36VAC source?
Yes, this model is intended for low-power 5V rails where the available input is 18-36VAC. Its 2W constant-voltage design is a better fit for logic, control, or interface circuits than for loads that need more output power.
Is the DPAN02B-05 suitable for powering microcontroller or communication interface boards?
It can suit compact embedded or communication boards that need a regulated 5V output and have an 18-36VAC source available. The small 21.8 × 11.1 × 9.2 mm package also helps in tightly packed control assemblies.
Can the DPAN02B-05 be used in automation systems for low-power digital control sections?
Yes, for low-power digital sections that need 5V constant-voltage output, this converter is within the right class. The 2W rating keeps it in the low-power category, and the -40°C to +90°C operating range supports industrial temperature conditions.
What is the difference between the DPAN02B-05, DPAN02B-12, and DPAN02B-15?
All three are 2W converters with 18-36VAC input, CE and EAC certification, and the same 21.8 × 11.1 × 9.2 mm dimensions. The DPAN02B-05 is the 5V version, the DPAN02B-12 provides ±12V with 0.08A output current, and the DPAN02B-15 provides ±15V with 0.07A output current.
Is the DPAN02B-05 suitable for outdoor equipment or washdown areas?
The operating temperature range is -40°C to +90°C, so it is rated for wide temperature exposure. However, no IP rating is listed, so the product specs do not define water or dust protection for direct outdoor or washdown exposure.
