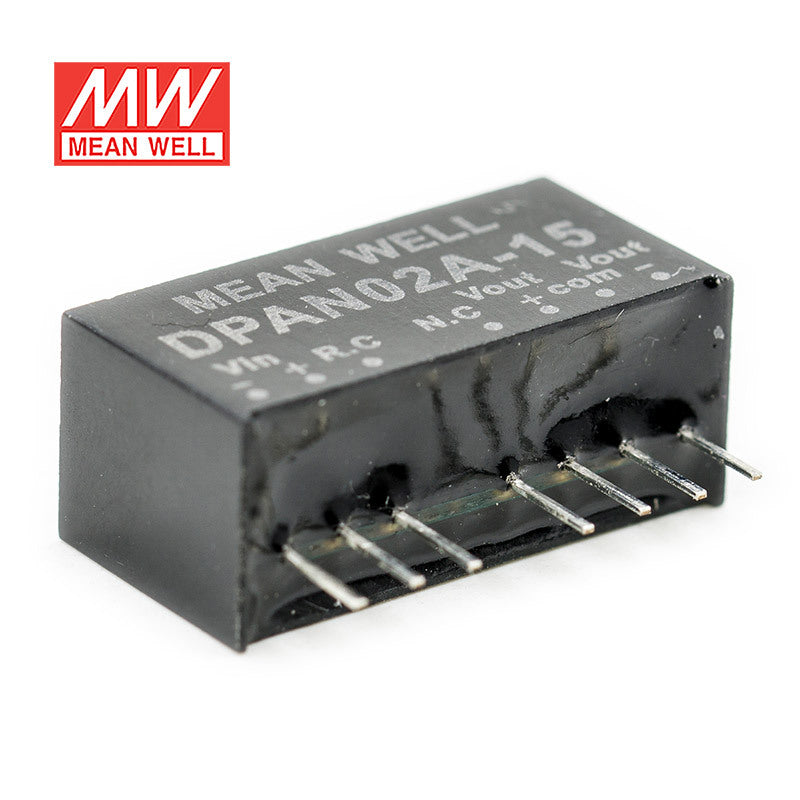

Mean Well DPAN02A-15 DC-DC Converter - 2W - 9~18V in ±15V out
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDPAN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPAN02A-15 for op-amp and instrumentation circuits that need ±15V rails?
Yes, it is suited to low-power analog and instrumentation sections that require ±15V output from a 9-18VAC input. Its 2W rating and 0.07A output current make it a better match for signal-level circuitry than for heavier control loads.
Is the DPAN02A-15 a good fit for compact embedded control boards with dual 15V requirements?
It can fit compact embedded boards where the rail requirement is ±15V and total load stays inside the 2W limit. The 21.8 × 11.1 × 9.2 mm size is useful where board space is limited.
Can the DPAN02A-15 be used for low-power industrial sensor interface modules?
It is appropriate for low-power interface or conditioning modules that need constant-voltage ±15V output. The -40°C to +90°C operating range also makes it more suitable for industrial temperature conditions than converters limited to room-temperature use.
How does the DPAN02A-15 compare with the other DPAN02A models?
The DPAN02A-05, DPAN02A-12, and DPAN02A-15 all share 2W power, 9-18VAC input, and the same 21.8 × 11.1 × 9.2 mm dimensions. The difference is output: 5V on the DPAN02A-05, ±12V at 0.08A on the DPAN02A-12, and ±15V at 0.07A on the DPAN02A-15.
Can the DPAN02A-15 be used where temperatures vary widely?
Its specified operating range is -40°C to +90°C, which supports use in equipment exposed to broad temperature variation. No IP rating is listed, so the temperature spec is clear but outdoor dust or water exposure should be managed by the host enclosure.
