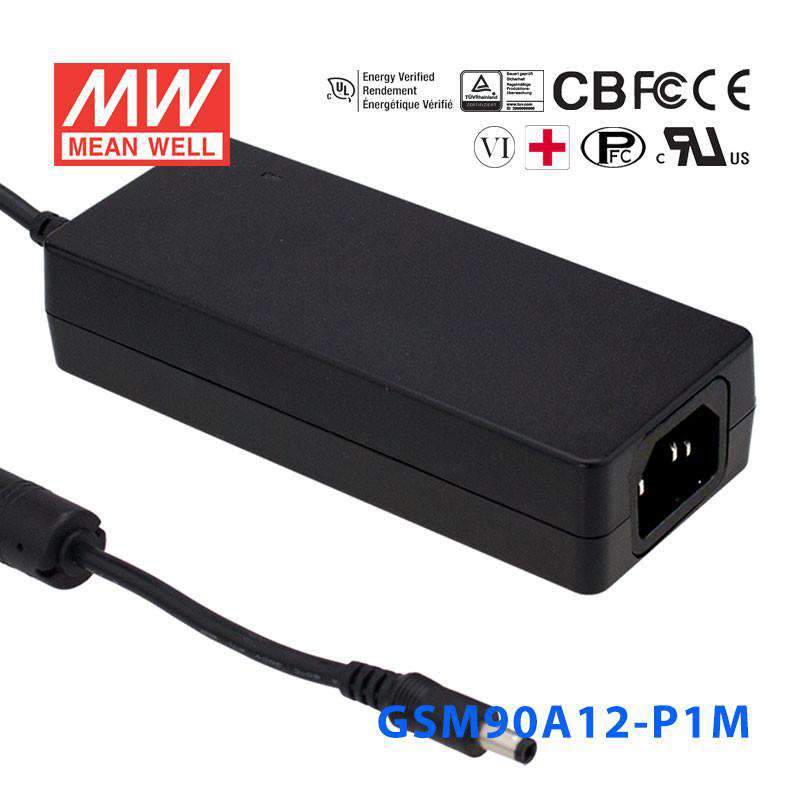

Mean Well GSM90A12-P1M Power Supply 90W 12V
Description
Description
Features
| Universal AC input / Full range |
| 3 pole AC inlet IEC320-C14 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG:SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V ; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32 mm |
| Standard DC plug | P1M: 2.5øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating80 Watt
-
Output Voltage12 Volt
-
Rated Current6.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM90A12-P1M for 12V industrial controllers or HMI accessories?
Yes, it provides constant 12V output at up to 6.67A. That suits 12V industrial control accessories, operator interface peripherals, or similar equipment that fits within its 80W output rating.
Is this a good fit for 12V embedded systems or test equipment?
It can be used for 12V embedded platforms or bench and test devices that need a constant 12V source. The load must stay at or below 6.67A and within the 80W power rating.
Can the GSM90A12-P1M power 12V automation sensors and small control loads?
It is appropriate for 12V automation-related loads when the total demand does not exceed 6.67A. With 80-264VAC input, it also supports use in installations that need broad AC input compatibility.
How can I tell whether this 12V power supply is correctly sized?
Your device should require constant 12V and draw no more than 6.67A. This model is specified for 80W output, so it should be matched only to loads within that 12V and 80W envelope.
Can this model be used in outdoor or temperature-variable locations?
The specified operating range is -30°C to +70°C, which supports use across a broad temperature span. The provided specs do not list an IP rating, so outdoor exposure or wet-area use is not confirmed by the available data.
