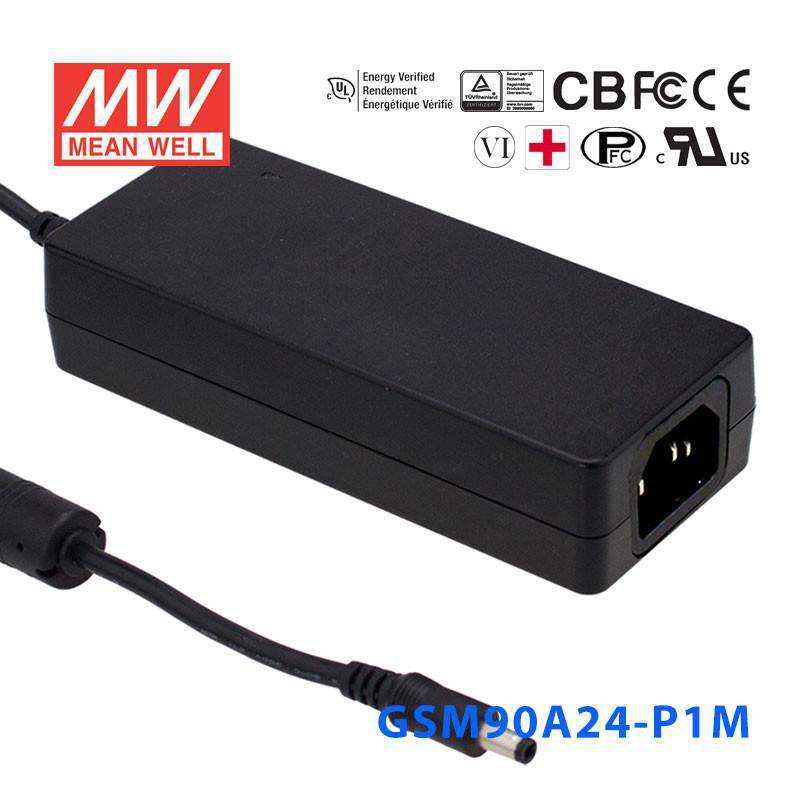

Mean Well GSM90A24-P1M Power Supply 90W 24V
Description
Description
Features
| Universal AC input / Full range |
| 3 pole AC inlet IEC320-C14 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG:SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V ; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32 mm |
| Standard DC plug | P1M: 2.5øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM90A24-P1M for 24V PLC accessories or automation devices?
Yes, it supplies constant 24V output at up to 3.75A. That makes it suitable for 24V automation devices or PLC-related accessories that stay within the 90W power limit.
Is this a good fit for 24V industrial sensors, gateways, or control modules?
It can fit 24V industrial electronics that need a constant voltage source. The connected load should not exceed 3.75A, and the total output demand must remain within 90W.
Can the GSM90A24-P1M power 24V embedded or machine-interface systems?
It is appropriate for 24V embedded or machine-interface systems that are designed for constant 24V input. The adapter also accepts 80-264VAC input, which supports use across a wide AC input range.
What is the difference between the GSM90A24-P1M and GSM90A24-P1J?
The provided sibling list shows GSM90A24-P1J as another model in the same series. For this GSM90A24-P1M, the listed specs are 90W, 24V, 3.75A, 80-264VAC input, 145.0 × 60.0 × 32.0 mm, 0.45 kg, and -30°C to +70°C operation.
Is the GSM90A24-P1M suitable for outdoor or difficult temperature conditions?
The operating temperature range is -30°C to +70°C, so it is specified for a wide temperature band. No IP rating is given in the provided specs, so outdoor exposure or wet-location use is not confirmed by this product data.
