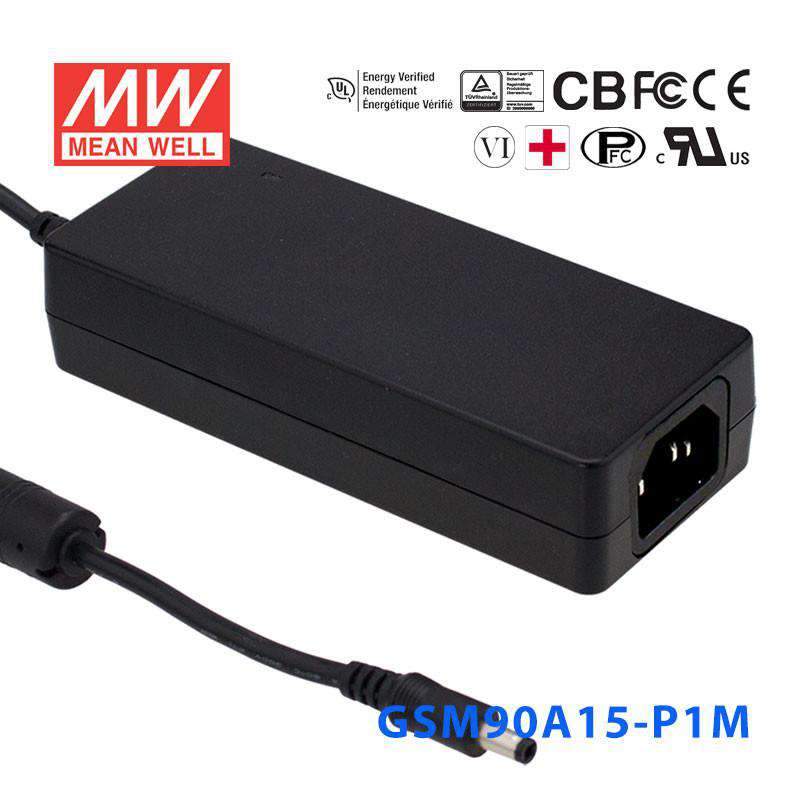

Mean Well GSM90A15-P1M Power Supply 90W 15V
Description
Description
Features
| Universal AC input / Full range |
| 3 pole AC inlet IEC320-C14 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG:SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V ; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32 mm |
| Standard DC plug | P1M: 2.5øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM90A15-P1M for 15V automation or industrial electronics?
Yes, it delivers constant 15V output at up to 6A. That makes it suitable for 15V automation or industrial electronic loads that stay within the 90W rating.
Is this power supply suitable for 15V embedded systems and instrument devices?
It can support 15V embedded hardware or instrument devices that need constant voltage power. The connected equipment should not exceed 6A draw or the 90W output limit.
Can the GSM90A15-P1M be used for 15V lab, monitoring, or control equipment?
It is appropriate for 15V monitoring or control equipment when the required input is constant 15V. The adapter accepts 80-264VAC input and provides up to 90W at 15V.
How do I check compatibility for a 15V load with this adapter?
Confirm that your equipment requires constant 15V and that the current draw does not go above 6A. This model is rated for 90W total output, so both voltage and power demand must remain within those specs.
Is the GSM90A15-P1M intended for outdoor use or extreme temperatures?
Its operating temperature range is -30°C to +70°C, so it is rated for wide temperature conditions. No IP rating appears in the provided specifications, so outdoor or water-exposed use is not established here.
