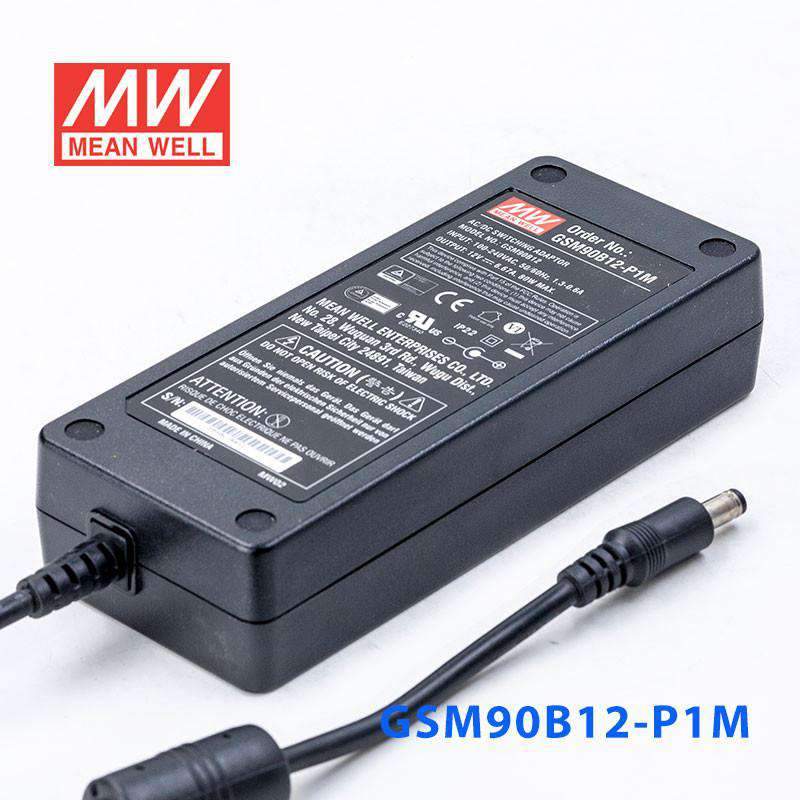

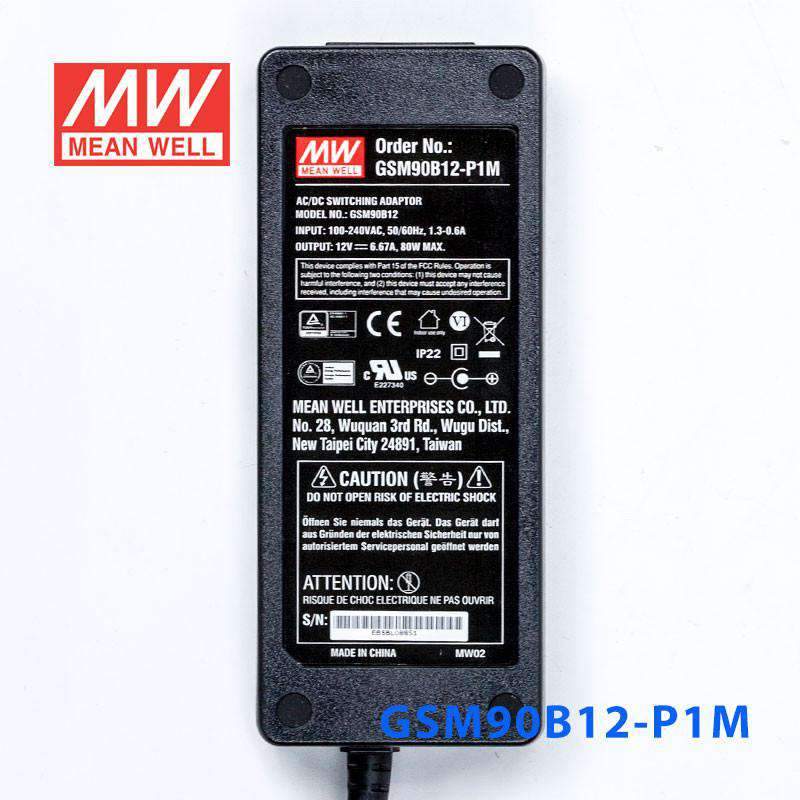

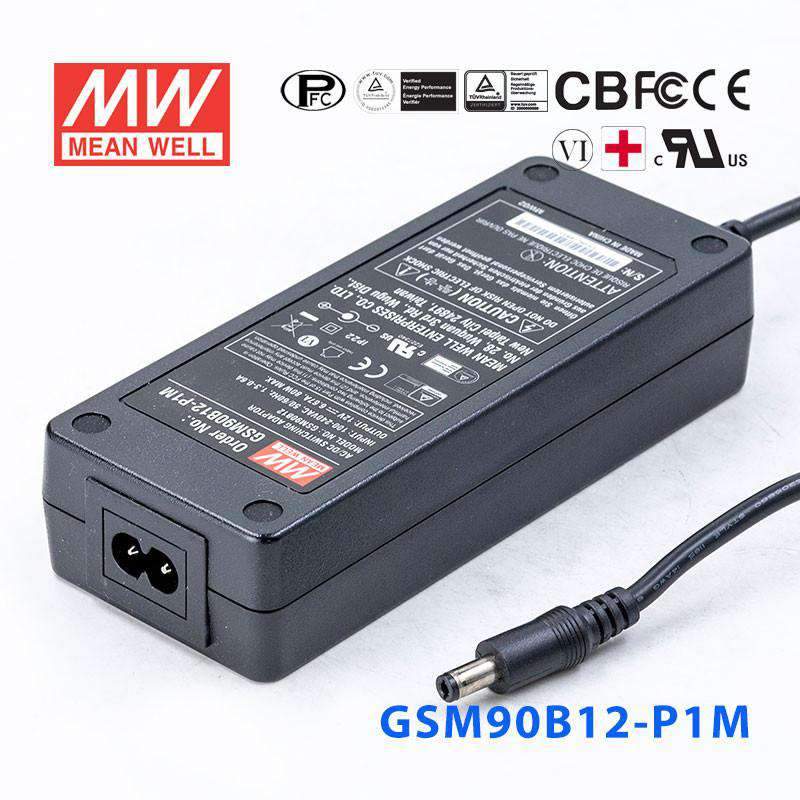

Mean Well GSM90B12-P1M Power Supply 80W 12V
Description
Description
Features
| Universal AC input / Full range |

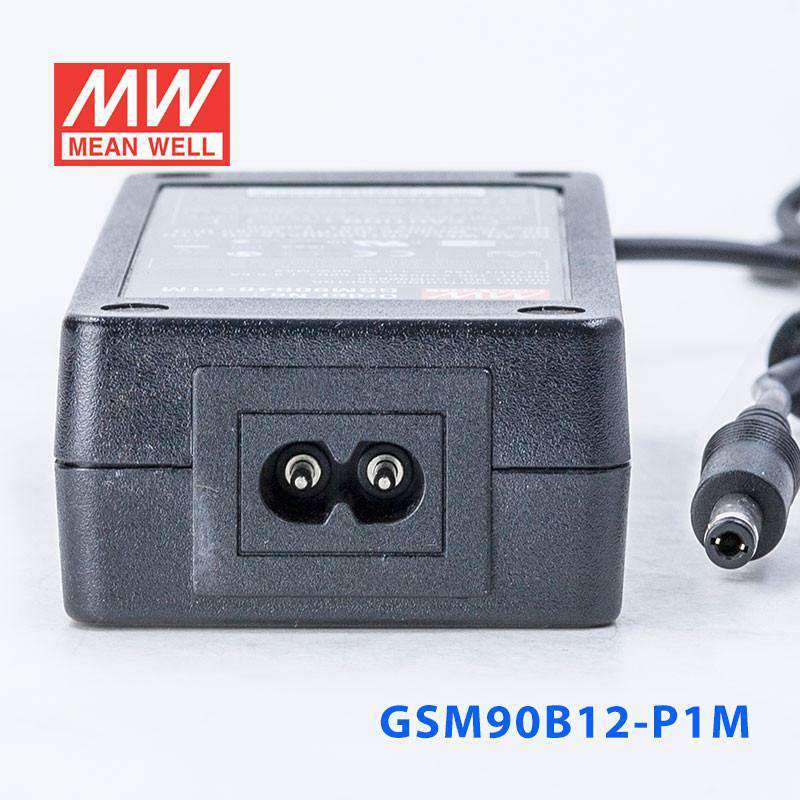

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |

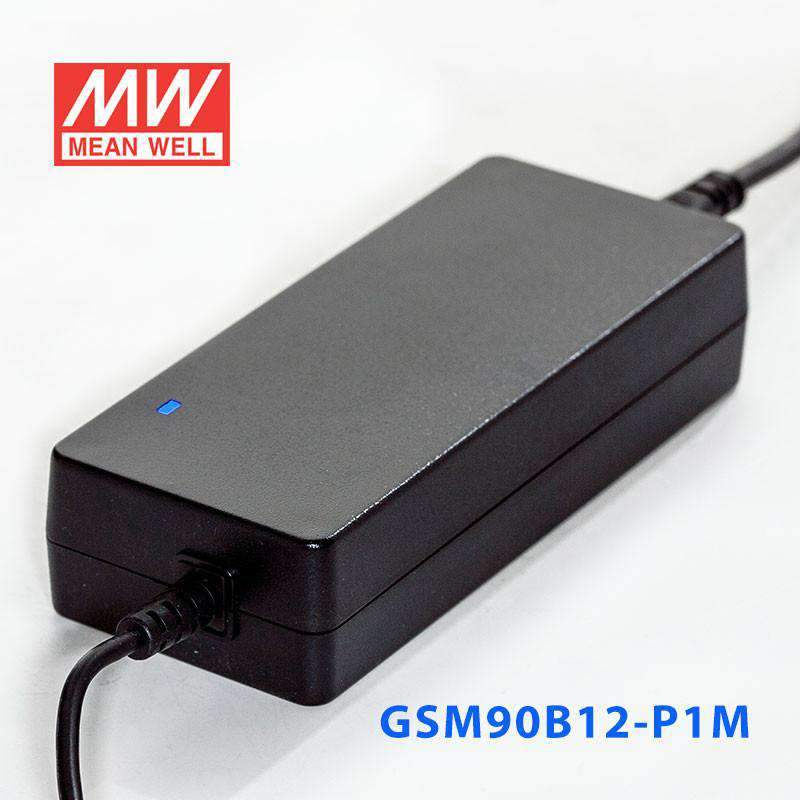

| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V ; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32 mm |
| Standard DC plug | P1M: 2.5øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating80 Watt
-
Output Voltage12 Volt
-
Rated Current6.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM90B12-P1M?
This model provides a regulated 12V DC output with an 80W power rating. Its rated output current is 6.67A, making it suitable for equipment that requires a stable 12V desktop power supply within that load range.
Is the GSM90B12-P1M suitable for medical or healthcare-related equipment?
Yes. The GSM90B12-P1M is medical safety approved and specifies 2 x MOPP isolation between primary and secondary. It also lists low leakage current under 100uA and compliance with medical safety standards including ANSI/AAMI ES60601-1 and EN60601-1-11.
What type of DC plug does the GSM90B12-P1M use?
This version uses the P1M standard DC plug. The listed plug size is 2.5 mm inner diameter by 5.5 mm outer diameter by 11 mm length, with center positive polarity.
What input voltage range does this power supply support?
The GSM90B12-P1M supports a universal AC input range of 80 to 264VAC. It also accepts 113 to 370VDC input, which helps it fit a wide range of global power environments.
How efficient is the Mean Well GSM90B12-P1M, and does it use much power at no load?
The unit is rated for efficiency up to 91%. It also has very low no-load power consumption of less than 0.15W, which can help reduce standby energy use.
What protection features are included in the GSM90B12-P1M?
This model includes protection against short circuit, overload, over voltage, and over temperature. Its overload protection is specified at 110% to 150% of rated output and uses hiccup mode with auto-recovery.
