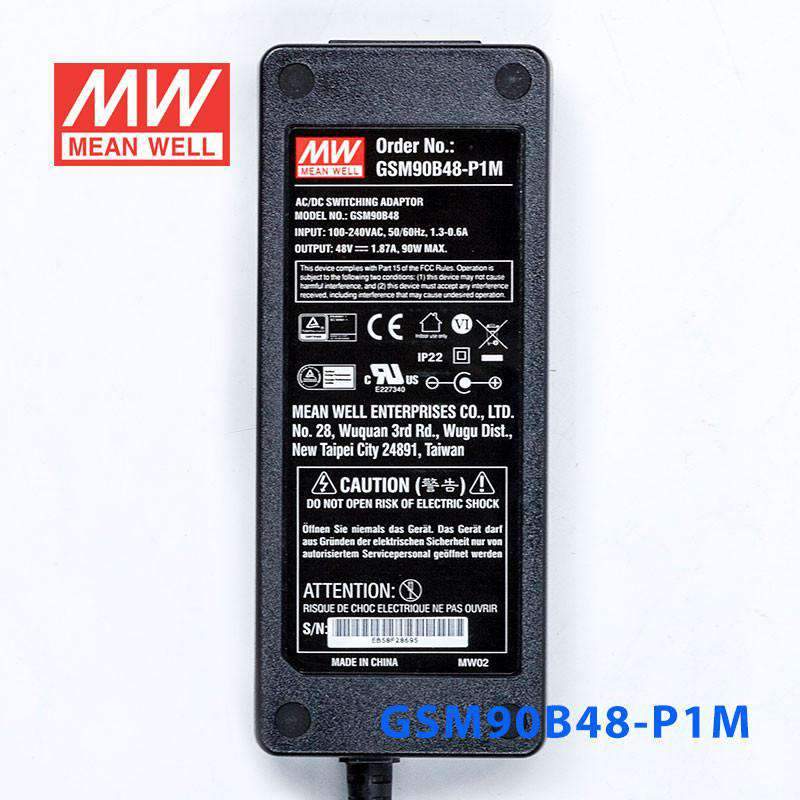

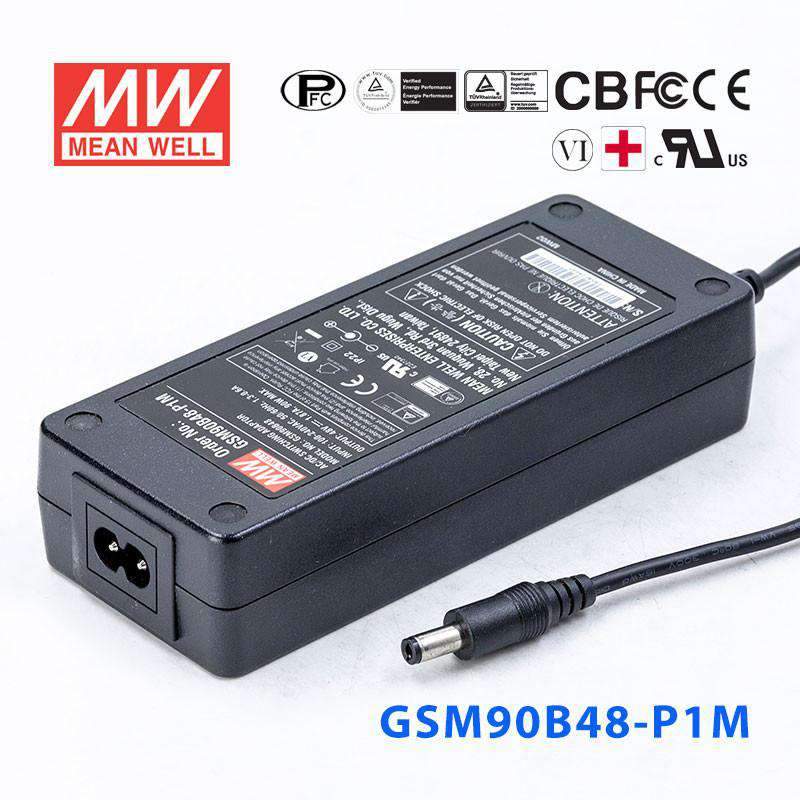

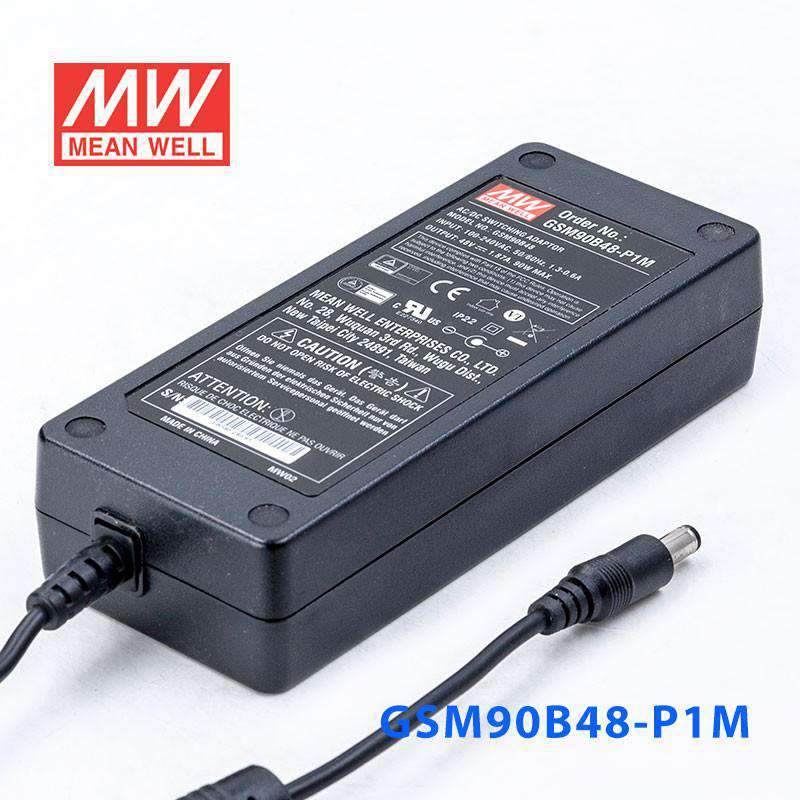

Mean Well GSM90B48-P1M Power Supply 90W 48V 1.87A
Overview
GSM90B48-P1M is the 48V output model of this series: rated current 1.87A, typical efficiency 91%.
GSM90B is a highly reliable, 90W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, GSM90B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM90B is approved with the international medical safety certificates.
Features

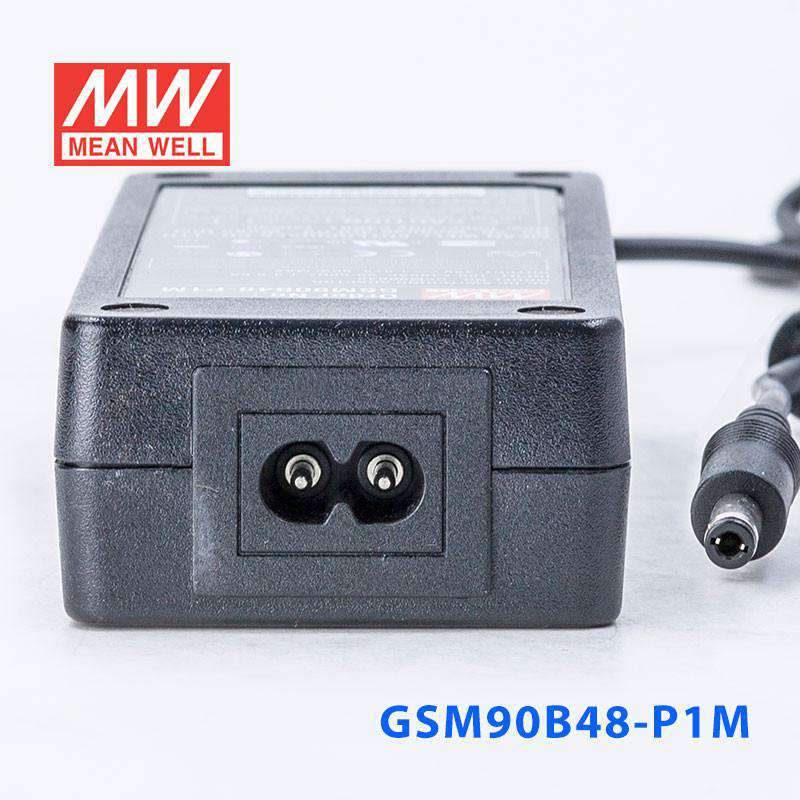

- 2 pole AC inlet IEC320-C8, Class Ⅱ power unit
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
- Extremely low leakage current
- No load power consumption<0.15W
- Energy efficiency level VI and meet CoC Version 5
- -30~+70℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature

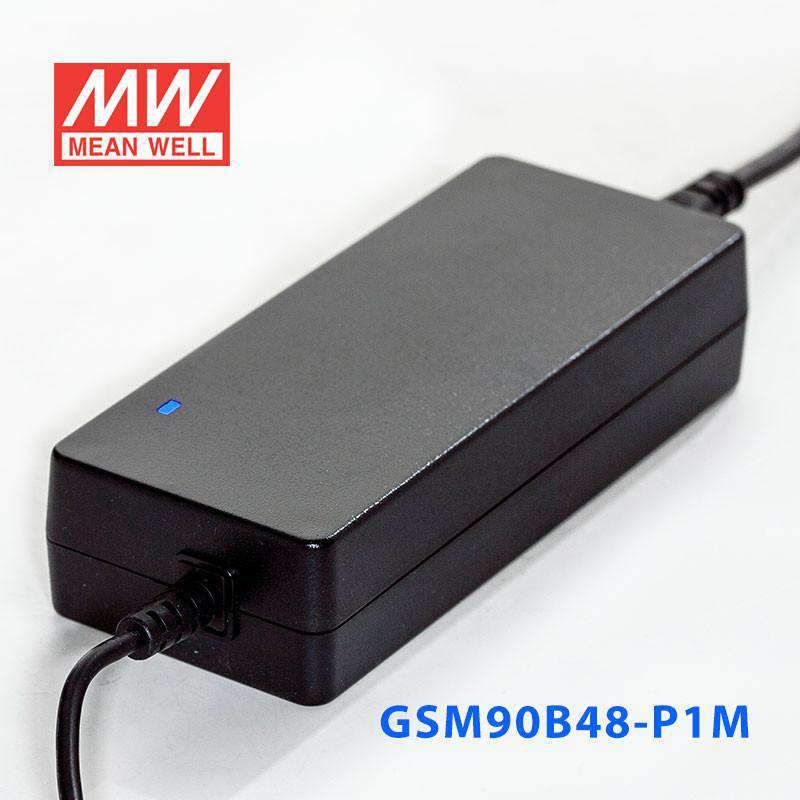

- LED indicator for power on
- Lifetime> 90 K hours
- Various DC plug quick adapter accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM90B48
- DC VOLTAGENote.2
- 48V
- RATED CURRENT
- 1.87A
- CURRENT RANGE
- 0 ~ 1.87A
- RATED POWER (max.)
- 90W
- RIPPLE & NOISE (max.)Note.3
- 200mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.5%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±2.5%
- SETUP, RISE TIMENote.6
- 1000ms, 50ms / 230VAC 1500ms, 50ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 30ms / 230VAC 20ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
- EFFICIENCY (Typ.)
- 91%
- AC CURRENT (Typ.)
- 1.3A / 115VAC 0.6A / 230VAC
- INRUSH CURRENT (Typ.)
- Cold start 30A / 115VAC 60A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 100μA/264VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.8
- 3000 meters
SAFETY & EMC
- SAFETY STANDARDSNote.9
- IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1 ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1,CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1 EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P: 4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN60601-1-2, BS EN/EN61204-3
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 2743.3K hrs min. Telcordia SR-332 (Bellcore) ; 353.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 145*60*32mm (L*W*H)
- PACKING
- 0.45Kg; 30pcs/14.5Kg/0.9CUFT
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes9
- 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Mobile clinical workstation
- Oral irrigator
- Portable hemodialysis machine
- Breath Machine
- Medical computer monitor
Downloads
Datasheet1
Certificates6
FAQ
Can I use the GSM90B48-P1M for 48V automation or motion-control accessories?
Yes, it can power 48V automation accessories that need constant-voltage output and stay within 1.87A and 90W. It is intended for applications that specifically call for a regulated 48V DC source.
Is this model suitable for 48V industrial communication or control devices?
It can be suitable for 48V industrial communication or control devices that accept constant 48V DC input. The load must remain within the rated 1.87A output current and 90W maximum power.
Can the GSM90B48-P1M power 48V embedded systems or instrumentation?
Yes, it is a fit for 48V embedded systems or instrumentation that are designed around constant-voltage operation. The electrical check is simple: the connected equipment must not exceed 48V, 1.87A, and 90W on the output side.
Would this power supply work for 48V telecom support equipment?
It can work for 48V telecom support equipment when the device requires constant 48V DC and the draw is within 1.87A. The 80-264VAC input range is also useful where incoming AC supply conditions vary.
Is the GSM90B48-P1M appropriate for outdoor deployment?
The unit is specified for operation from -30°C to +70°C, which covers a wide temperature range. However, no IP rating appears in the provided specifications, so the product data does not confirm suitability for outdoor or wet-environment exposure.
What kind of 48V load is this supply sized for?
It is sized for constant-voltage 48V loads up to 1.87A, with a total output limit of 90W. That makes it appropriate when the full connected load stays at or below those stated ratings.
