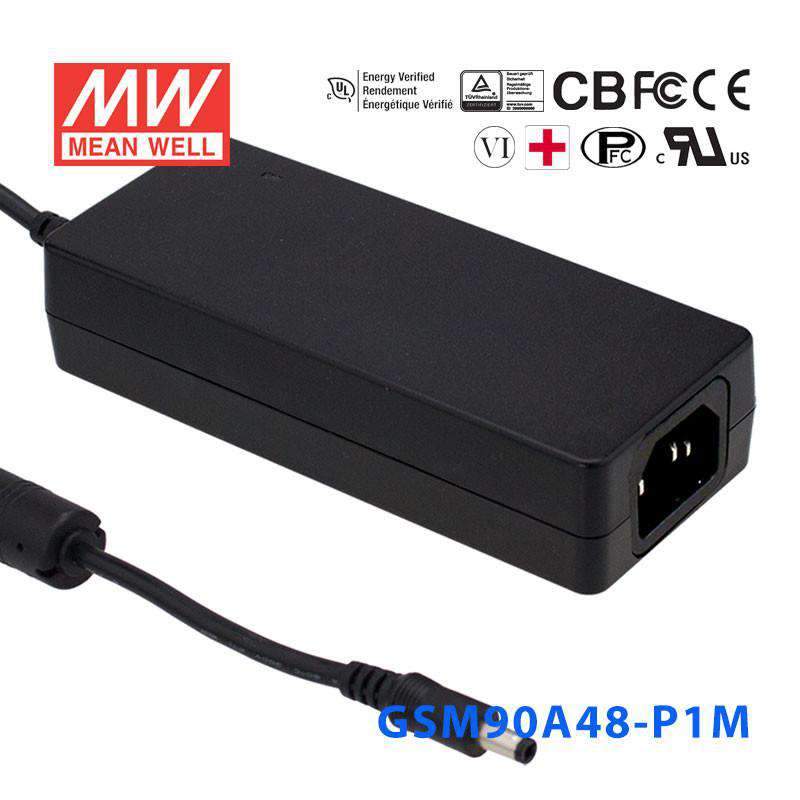

Mean Well GSM90A48-P1M Power Supply 90W 48V 1.87A
Overview
GSM90A48-P1M is the 48V output model of this series: rated current 1.87A, typical efficiency 91%.
GSM90A is a highly reliable, 90W desktop style single-output green medical adaptor series. This product is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, GSM90A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GSM90A is approved with the international medical safety certificates.
Features
- 3 pole AC inlet IEC320-C14, ClassⅠpower unit
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Extremely low leakage current
- No load power consumption<0.15W
- Energy efficiency level VI and meet CoC Version 5
- -30~+70℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- LED indicator for power on
- Lifetime> 130 K hours
- Various DC plug quick adaptor accessory available (Plug kit sold seperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM90A48
- DC VOLTAGENote.2
- 48V
- RATED CURRENT
- 1.87A
- CURRENT RANGE
- 0 ~ 1.87A
- RATED POWER (max.)
- 90W
- RIPPLE & NOISE (max.)Note.3
- 200mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.5%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±2.5%
- SETUP, RISE TIMENote.6
- 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 40ms / 230VAC 25ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
- EFFICIENCY (Typ.)
- 91%
- AC CURRENT (Typ.)
- 1.3A / 115VAC 0.6A / 230VAC
- INRUSH CURRENT (Typ.)
- Cold start 30A/115VAC 60A / 230VAC
- LEAKAGE CURRENT(max.)
- Earth leakage current < 125μA/264VAC , Touch current < 100μA/264VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ± 0.03% / ℃ (0~40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.8
- 3000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITYNote 9
-
BS EN/EN60601-1-2, BS EN/EN61204-3
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 2538.4K hrs min. Telcordia SR-332 (Bellcore) ; 387.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 145*60*32mm (L*W*H)
- PACKING
- 0.45Kg; 30pcs/14.5Kg/0.9CUFT
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes9
- 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Mobile clinical workstation
- Oral irrigator
- Portable hemodialysis machine
- Breath Machine
- Medical computer monitor
Downloads
Datasheet1
Certificates4
Test reports1
FAQ
Can I use the GSM90A48-P1M for 48V industrial control equipment?
Yes, this model is a constant-voltage 48V power supply rated for 90W and 1.87A. It fits 48V industrial control loads that require a steady 48V DC source and stay within the 1.87A / 90W output limit.
Is this power supply suitable for 48V telecom or network devices?
It can be used for 48V telecom or network equipment that accepts constant 48V DC input and draws no more than 1.87A. The wide 80-264VAC input also helps where AC mains conditions vary across sites or regions.
Can the GSM90A48-P1M support embedded or automation systems built around 48V DC?
Yes, it is appropriate for embedded and automation systems that are designed for constant 48V DC power. The key sizing check is that the total load remains within 90W and 1.87A.
Is this a good fit for 48V test, monitoring, or lab equipment?
It can be a fit for 48V bench, monitoring, or instrumentation devices that need constant-voltage output rather than constant-current operation. Buyers should confirm the equipment needs 48V DC and does not exceed 1.87A.
Can this power supply be used outdoors or in harsh environments?
The operating temperature range is -30°C to +70°C, with load derating at higher temperatures per the derating curve. However, no IP rating is listed in the provided specs, so these product details do not indicate protection for outdoor, wet, or washdown exposure.
How do I know if the GSM90A48-P1M is correctly sized for my 48V load?
It is correctly sized when your device requires constant 48V DC and the total demand stays at or below 1.87A and 90W. If the load exceeds either limit, this model is not the right match.
