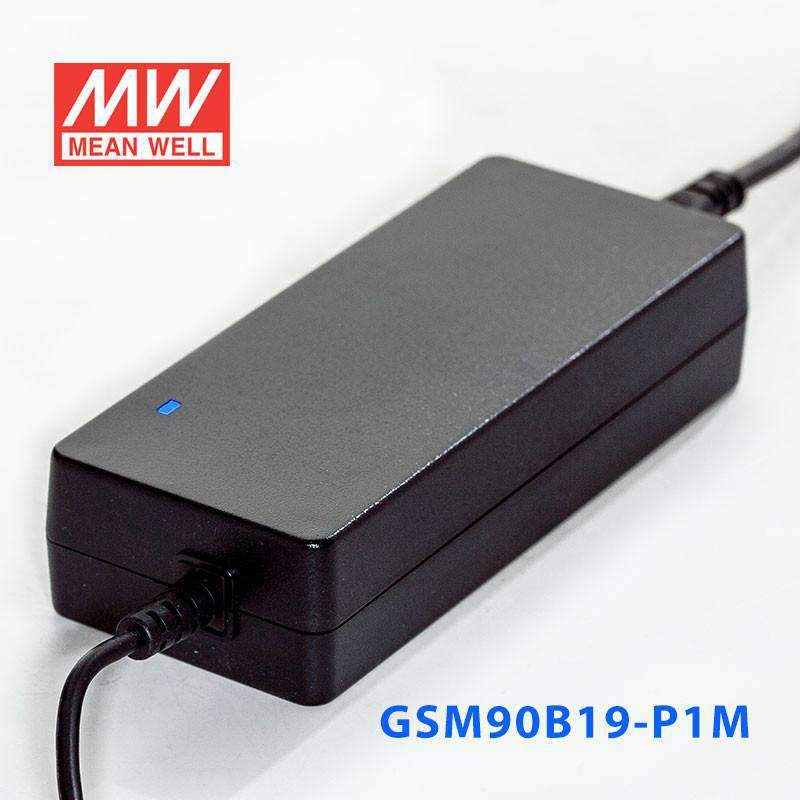

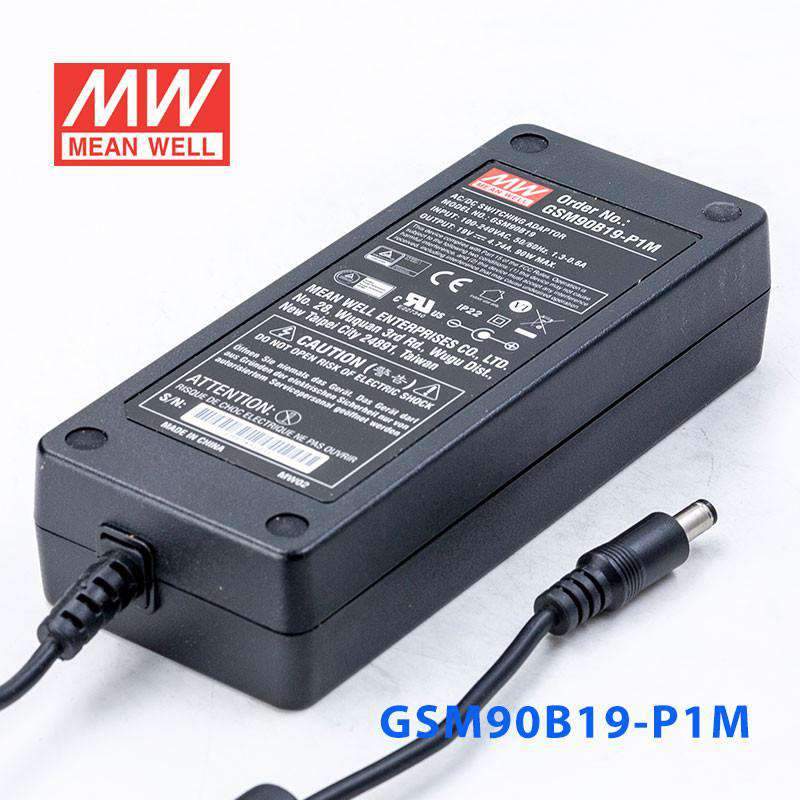

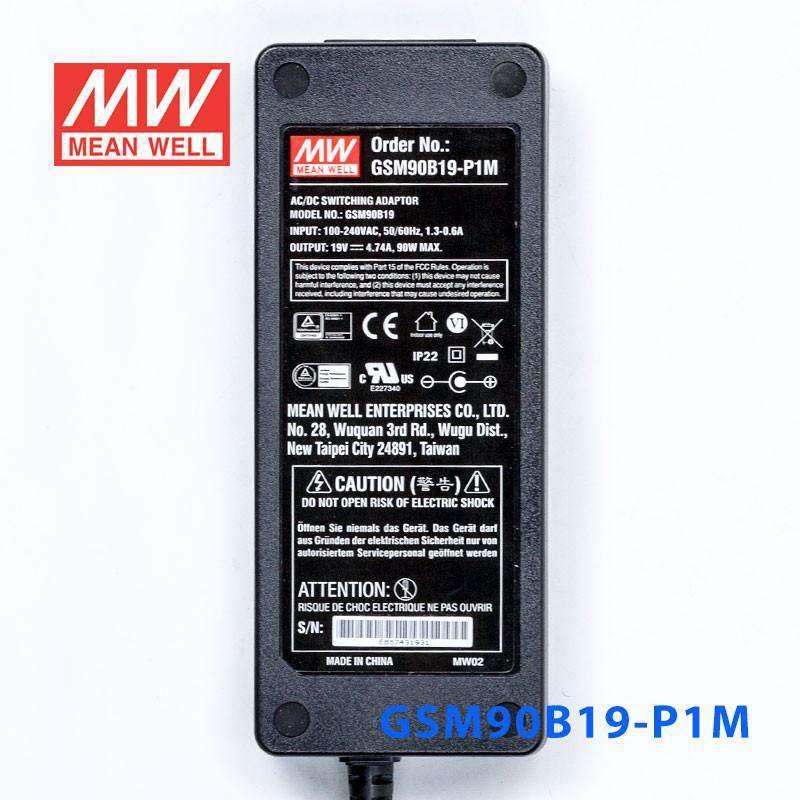

Mean Well GSM90B19-P1M Power Supply 90W 19V
Description
Description
Features
| Universal AC input / Full range |

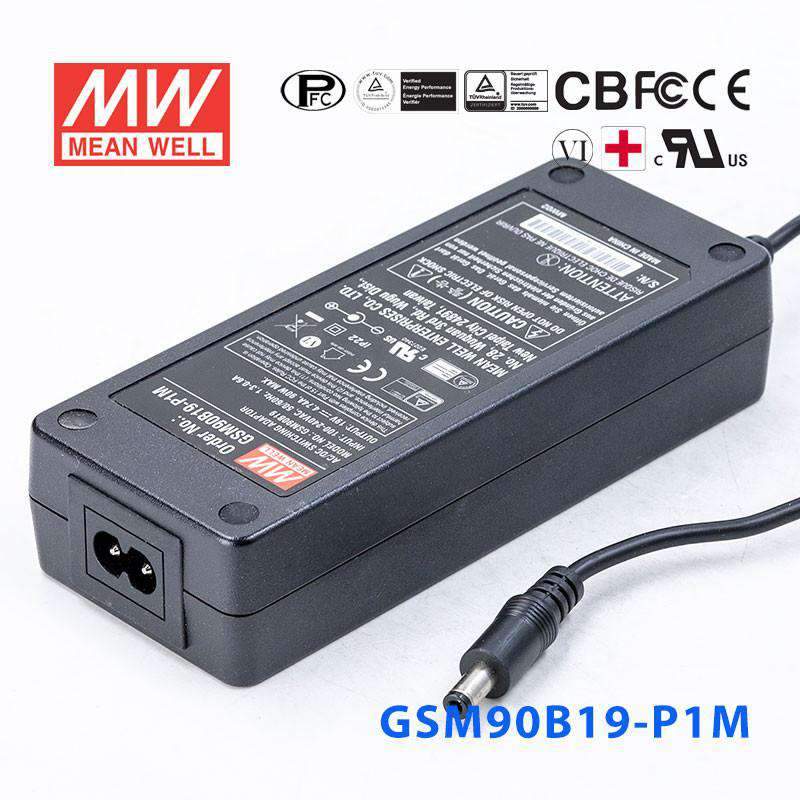

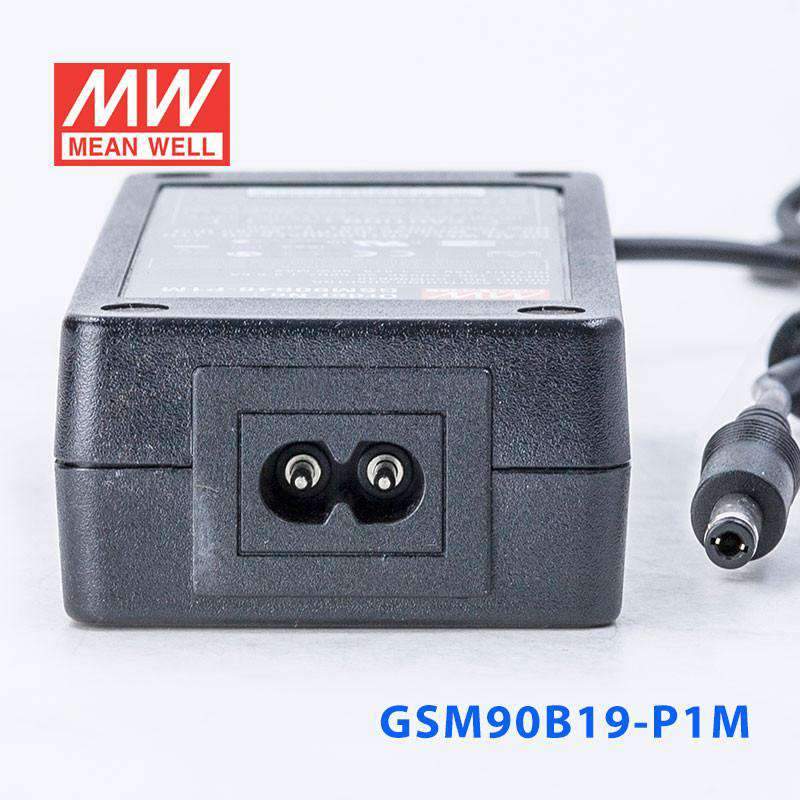

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V ; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32 mm |
| Standard DC plug | P1M: 2.5øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating90 Watt
-
Output Voltage19 Volt
-
Rated Current4.74 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the GSM90B19-P1M power 19V industrial PCs or embedded computing hardware?
Yes, it is suitable for 19V devices that require constant-voltage DC input and stay within 90W and 4.74A. That makes it relevant for many embedded computing and industrial PC applications built around 19V power.
Is this a good option for 19V display, HMI, or kiosk systems?
It can be used for 19V display, HMI, or kiosk hardware when the product requires a steady 19V DC supply. The combined load must remain at or below 4.74A and 90W.
Can I use the GSM90B19-P1M for 19V networking or IT peripherals?
Yes, if the networking or IT peripheral is specified for constant 19V DC input, this supply can be a fit. Buyers should confirm the device does not exceed the 4.74A output current or 90W power rating.
Would this work for 19V monitoring or control terminals in automation environments?
It can support 19V monitoring or control terminals that need regulated constant-voltage power. The application match depends on the terminal being designed for 19V DC and drawing no more than 4.74A.
Can this power supply handle cold or hot operating conditions?
The listed operating temperature range is -30°C to +70°C, so it is specified for both low and high ambient temperatures within that span. Since no IP rating is provided, the specs do not establish outdoor weather exposure or water-ingress protection.
How should I check if this 19V supply matches my equipment?
Match it to equipment that requires constant 19V DC and draws 4.74A or less, with total power demand up to 90W. Those are the key electrical limits given in the product specs.
