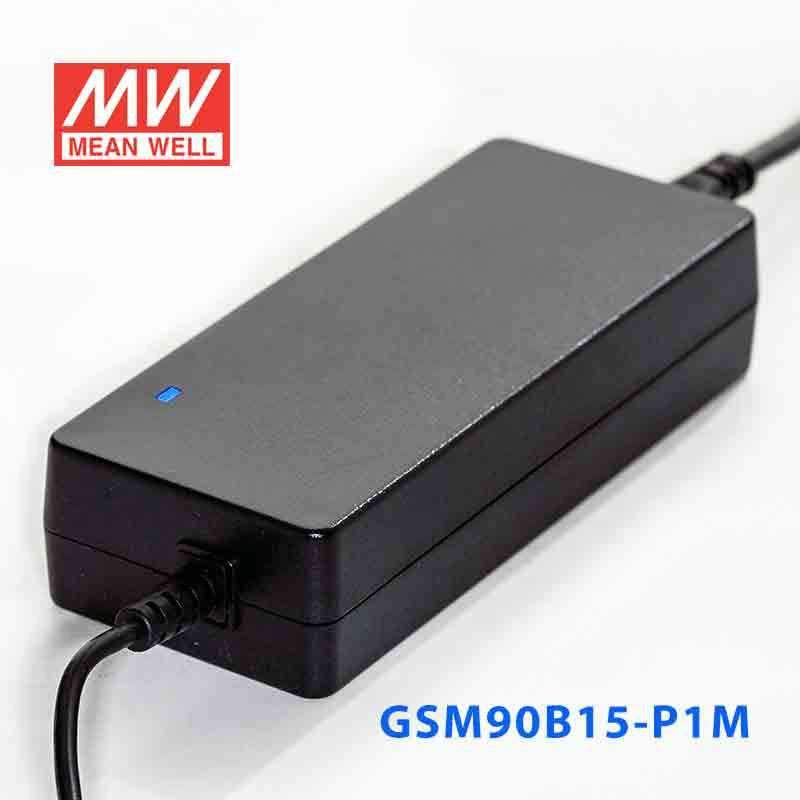

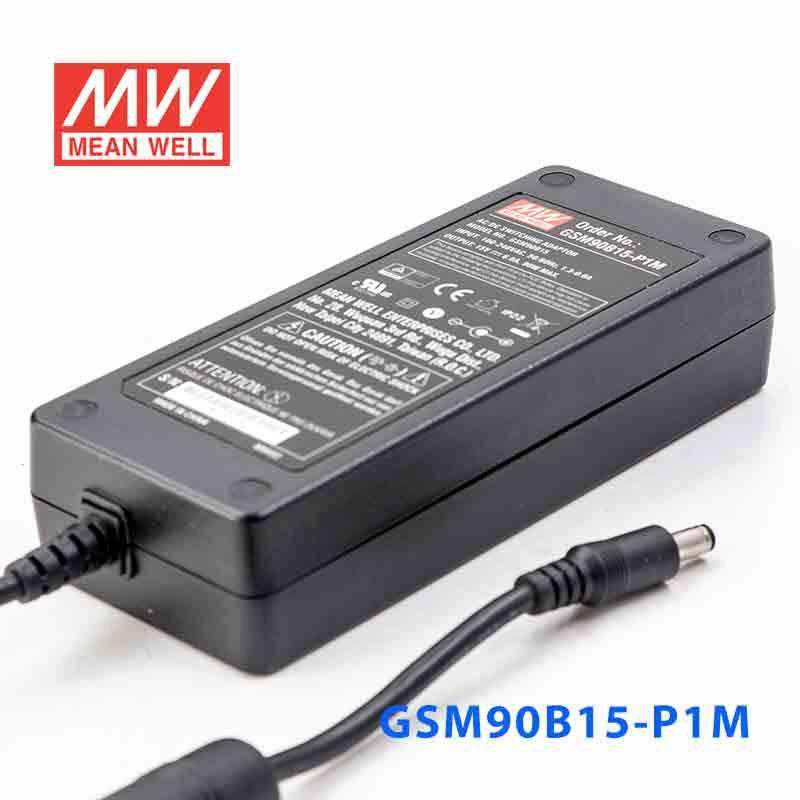

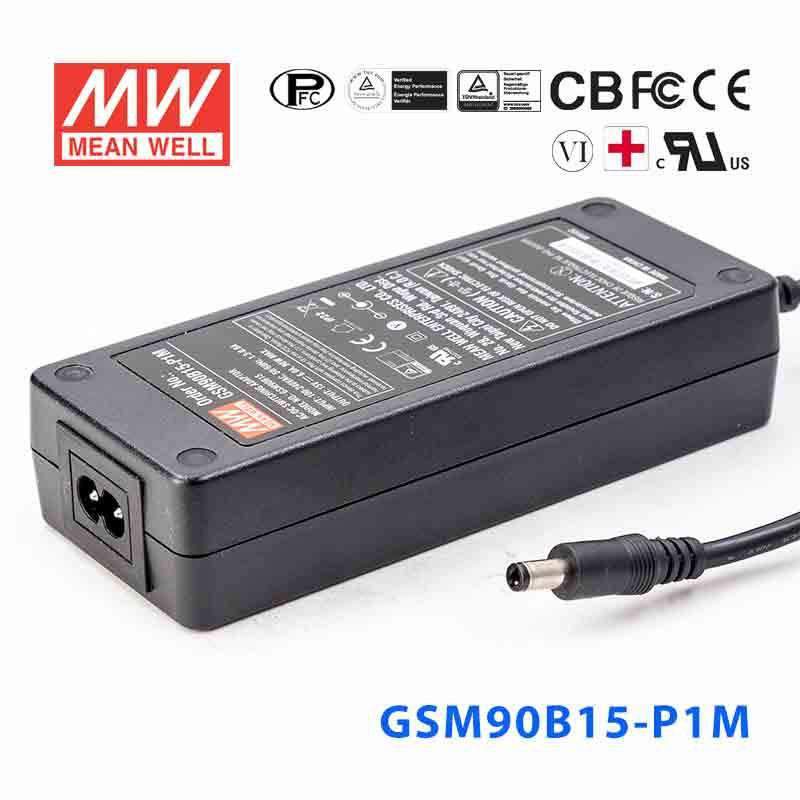

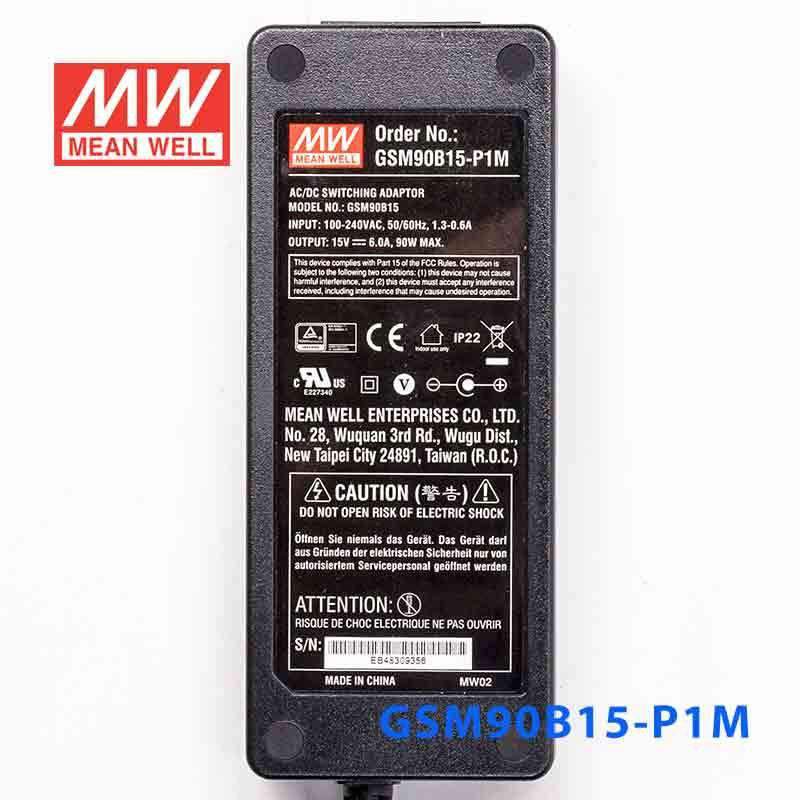

Mean Well GSM90B15-P1M Power Supply 90W 15V
Description
Description
Features
| Universal AC input / Full range |

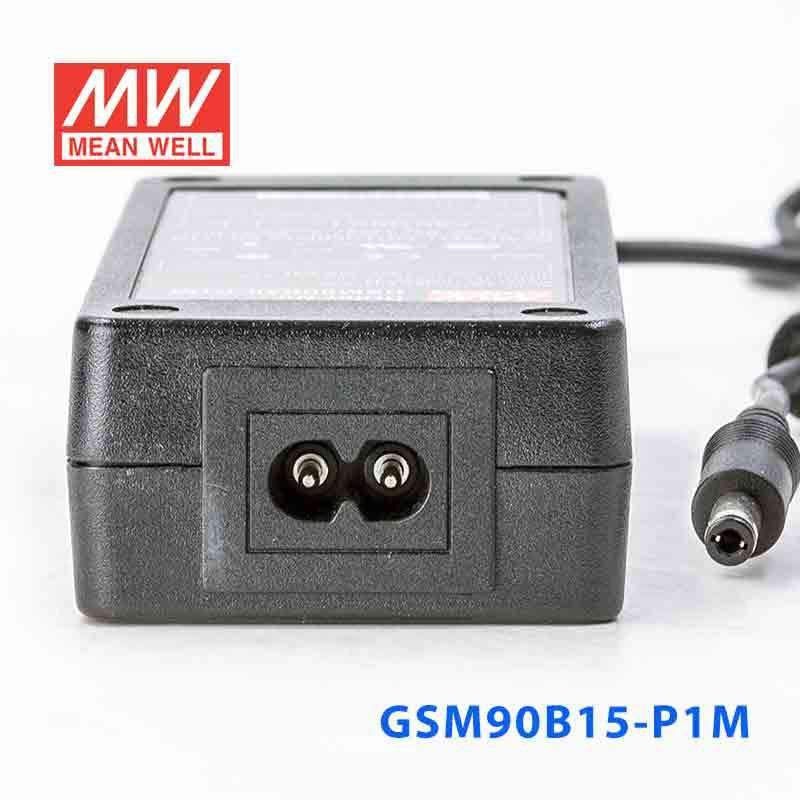

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V ; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32 mm |
| Standard DC plug | P1M: 2.5øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM90B15-P1M for 15V automation controllers or industrial electronics?
Yes, this unit provides constant 15V DC output and is rated for 90W and 6A. It suits 15V automation or industrial electronics that need regulated 15V power and remain within the 6A / 90W capacity.
Is the GSM90B15-P1M suitable for 15V embedded systems or edge devices?
It can be used for embedded systems, edge devices, or industrial computers that are specified for constant 15V DC input. The load still needs to stay within 6A and 90W.
Can this model power 15V HMI, sensing, or monitoring equipment?
Yes, it is a reasonable fit for 15V HMI, sensor, or monitoring equipment when the application requires constant-voltage output. The equipment should be rated for 15V DC and draw no more than 6A total.
Would this power supply work for 15V lab or test equipment?
It can work for 15V test and bench equipment that expects a constant 15V DC source rather than constant-current drive. Capacity should be checked against the 90W maximum and 6A output rating.
Is the GSM90B15-P1M intended for indoor or outdoor use?
The specified operating range is -30°C to +70°C, which supports use across a wide temperature span. But the provided specs do not list an IP rating, so these details do not confirm suitability for outdoor or exposed wet locations.
What is the main compatibility check before choosing this 15V model?
The main check is whether your equipment needs constant 15V DC and stays within 6A and 90W. If your device needs a different voltage or exceeds those limits, this model is not the correct fit.
