Mean Well

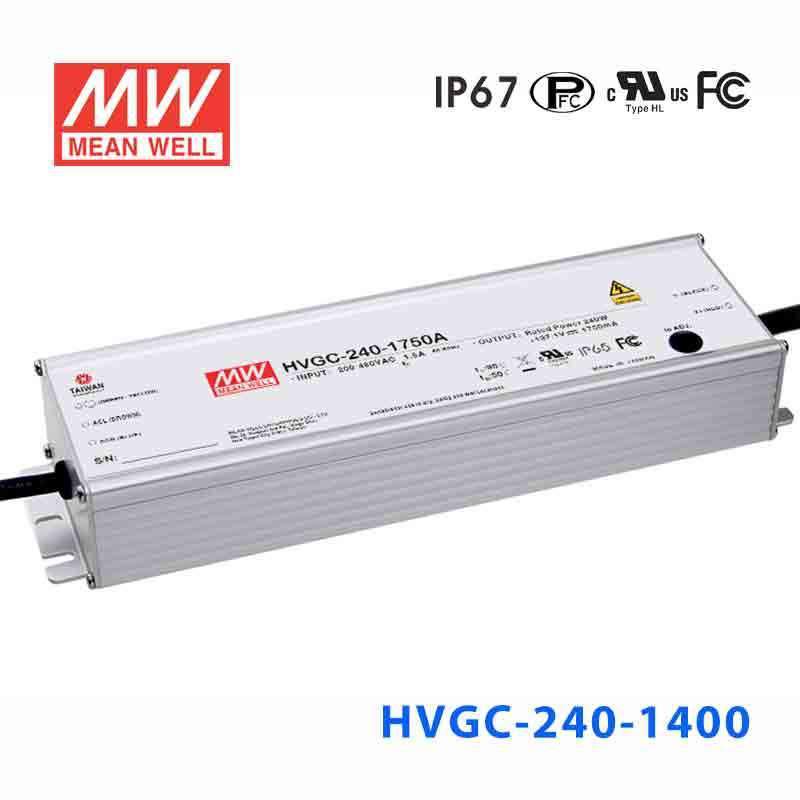

Mean Well HVGC-240-1400B Power Supply 240W 1400mA - Dimmable

Name: Mean Well HVGC-240-1400B Power Supply 240W 1400mA - Dimmable
Brand: Mean Well
SKU: HVGC-240-1400B
Price: 93.86 USD
Availability: InStock

Mean Well HVGC-240-1400B Power Supply 240W 1400mA - Dimmable

On Backorder

$93.86 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm
