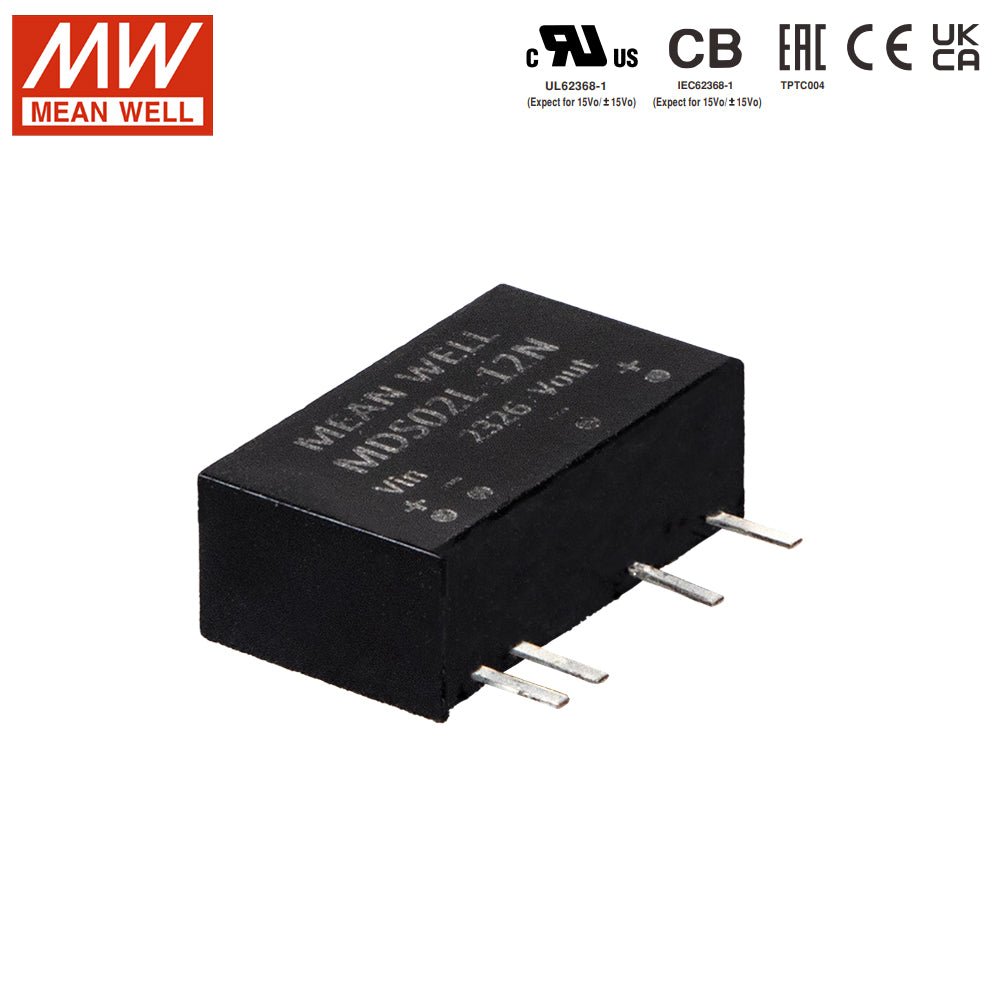

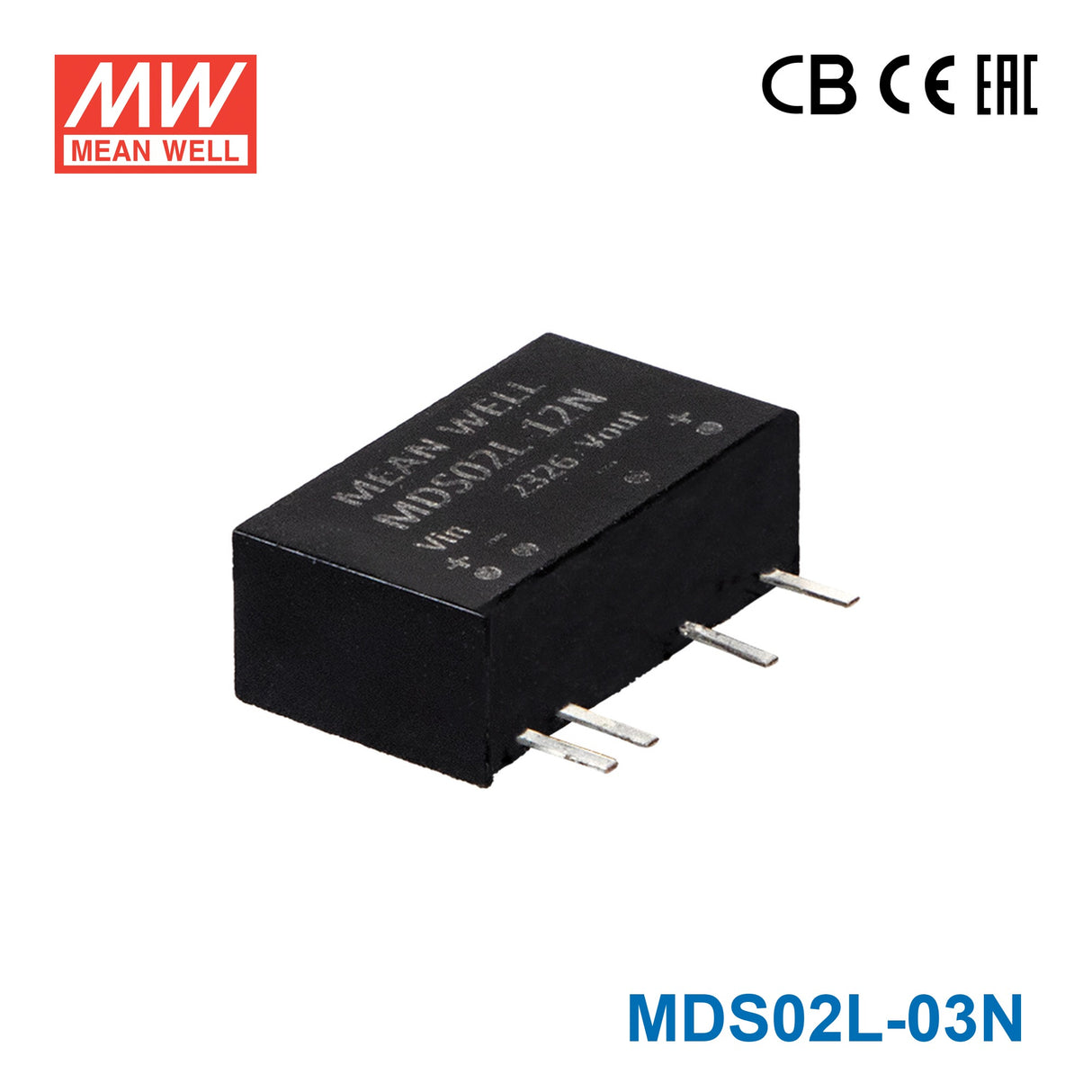

Mean Well MDS02L-03N SIP Package DC-DC Converter- 2W - 3.3V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02L-03N SIP Package DC-DC Converter- 2W - 3.3V out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.04 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02L-03N designed for?
The Mean Well MDS02L-03N is a 2W SIP package DC-DC converter for applications that need a regulated 3.3V DC output in a compact module format. It is suited to space-constrained electronic equipment where reinforced isolation and certified safety performance are important.
What are the key electrical specifications of the MDS02L-03N?
This model is rated for 2W output power and provides a 3.3V DC output. The listed rated current is 40 mA, and the product belongs to Mean Well's MDS02L series in a SIP7 package.
Is the MDS02L-03N suitable for medical or safety-sensitive equipment?
Yes. The product description states it is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP and has low patient leakage current below 2 microamps. It also complies with IEC/UL62368-1 and carries CB, UL, EAC, CE, and UKCA safety certifications.
How much isolation does the MDS02L-03N provide?
The MDS02L-03N is specified with 6KVDC input-to-output isolation. The description identifies this as reinforced insulation, which helps differentiate it from lower-isolation DC-DC converter modules.
What operating environment can the MDS02L-03N handle?
This converter is rated for an operating temperature range of -40°C to +95°C. That makes it suitable for demanding industrial and embedded environments where wide temperature tolerance is required.
Does the MDS02L-03N include built-in protection features?
Yes. It includes continuous short-circuit protection and overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers. These protections help support reliability in normal equipment operation.
