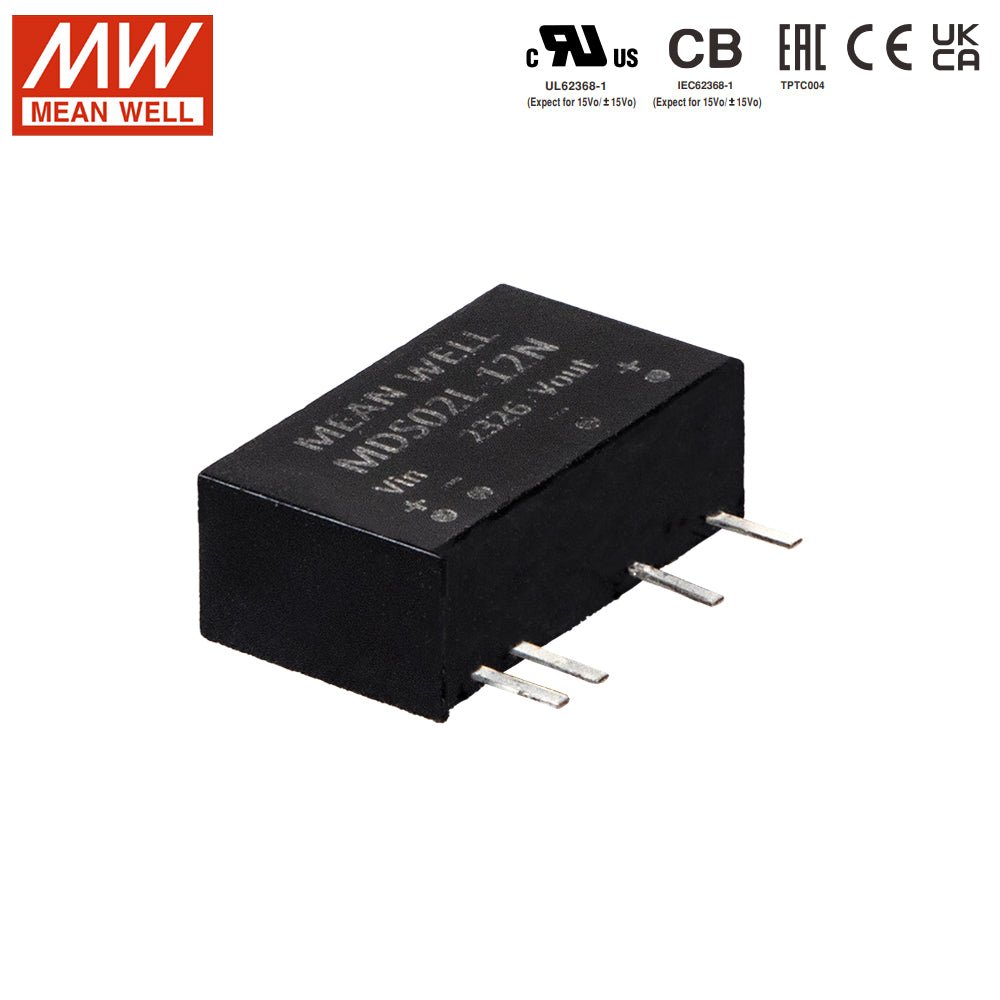

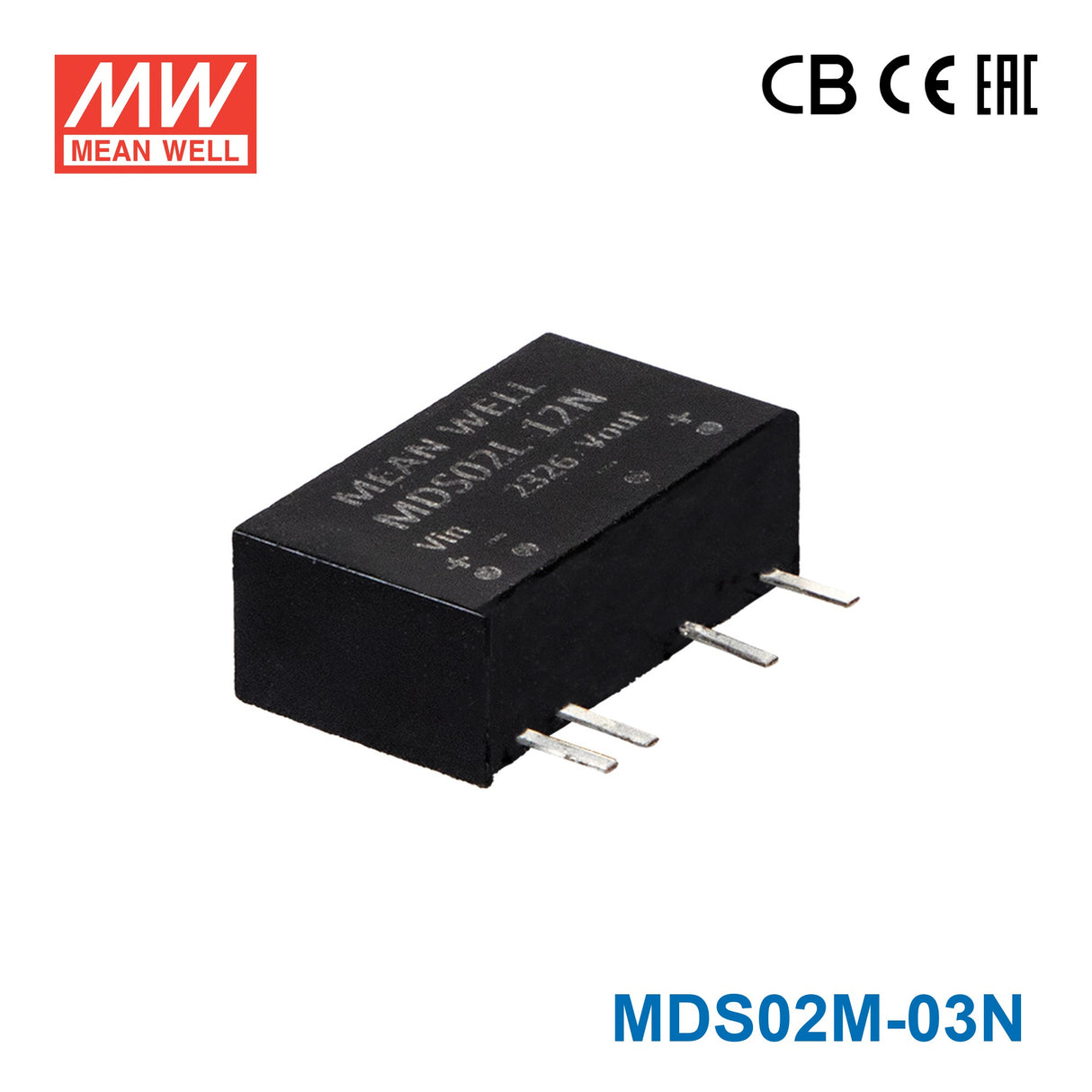

Mean Well MDS02M-03N SIP Package DC-DC Converter- 2W - 3.3V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02M-03N SIP Package DC-DC Converter- 2W - 3.3V out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.02 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02M-03N designed for?
The MDS02M-03N is a 2W SIP-package DC-DC converter intended for compact embedded power conversion in space-constrained equipment. This model provides a 3.3V output and is suited to B2B and industrial designs that need reinforced isolation and approved safety coverage.
What are the key electrical specifications of the MDS02M-03N?
This model is rated for 2W output power and provides a 3.3V output. The listed rated current is 28 mA, and the product is part of Mean Well's MDS-MDD SIP7 DC-DC converter family.
Is the MDS02M-03N suitable for medical or safety-sensitive equipment?
Yes. The series is described as medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP coverage, and it also complies with IEC/UL62368-1 except for the 15Vo and +/-15Vo versions. It also specifies low patient leakage current below 2 uA and 6KVDC input-to-output isolation with reinforced insulation.
How does the MDS02M-03N handle harsh operating environments?
The MDS02M-03N is specified for an operating temperature range of -40C to +95C, making it appropriate for demanding industrial environments. Its compact SIP7 form factor also supports use in dense assemblies where board space is limited.
What protection features does the MDS02M-03N include?
This model includes continuous short-circuit protection for long-duration fault conditions. The series also provides overload protection that shuts down the output when rated power reaches 102% or higher, then recovers automatically.
How compact is the MDS02M-03N compared with other isolated DC-DC converter formats?
The MDS02M-03N uses a SIP7 package with dimensions of 19.7 x 7.1 x 11.5 mm and a weight of 2.8 g. Compared with larger board-mount converter formats, this makes it a compact option for applications where isolation and small size both matter.
