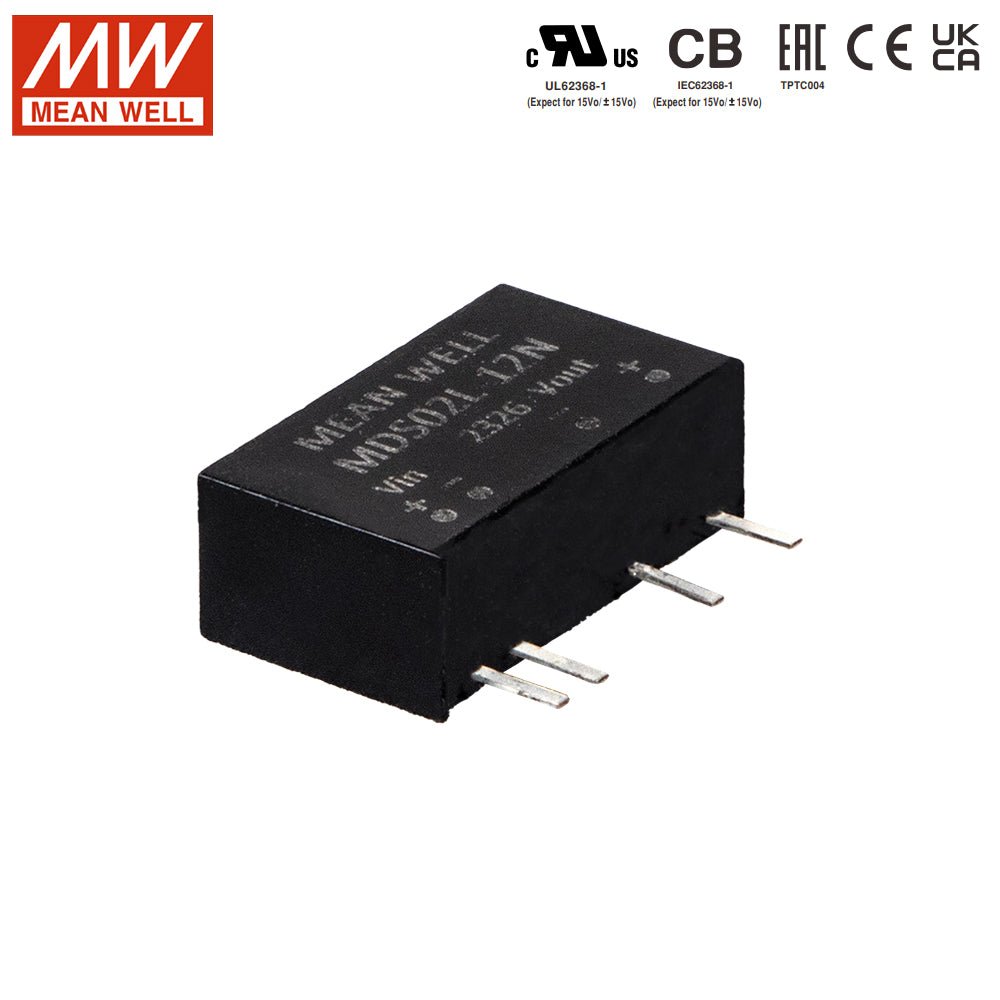

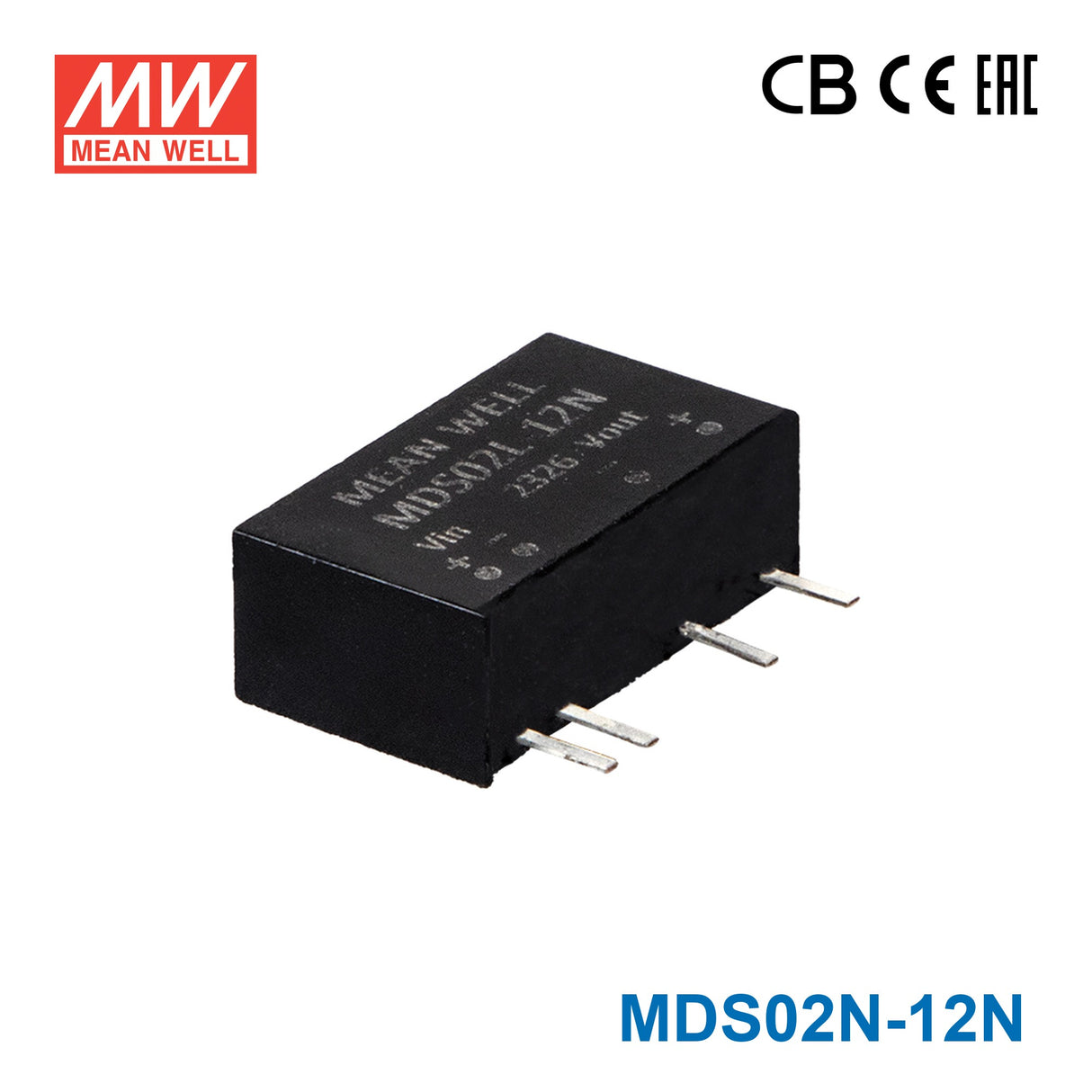

Mean Well MDS02N-12N SIP Package DC-DC Converter- 2W - 12V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS02N-12N SIP Package DC-DC Converter- 2W - 12V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS02N-12N used for?
The MDS02N-12N is a 2W SIP-package DC-DC converter intended for compact embedded power applications that need a regulated 12V output. Its reinforced 6KVDC input-to-output isolation and medical safety approvals make it relevant for industrial and medical-related equipment where isolation and safety matter.
What are the key electrical specifications of the MDS02N-12N?
This model is rated for 2W output power and provides a 12V DC output. The listed rated current is 12 mA, and the 12V input version operates over a 10.8 to 13.2V DC input range.
Is the MDS02N-12N suitable for medical or safety-sensitive equipment?
Yes, this series is described as medical safety approved to IEC60601-1 with 1xMOPP and 2xMOOP. It also lists low patient leakage current below 2 microamps and compliance with IEC/UL62368-1 and LVD IEC60601-1, which supports use in applications with stricter safety requirements.
How does the MDS02N-12N perform in harsh temperature conditions?
The MDS02N-12N has an operating temperature range of -40°C to +95°C. That wide range makes it a practical option for equipment exposed to cold starts, elevated internal enclosure temperatures, or other demanding operating environments.
What protection features does the MDS02N-12N include?
This converter includes continuous short-circuit protection for long-duration fault conditions. It also provides overload protection by shutting down the output when rated power reaches 102% or more, then recovering automatically.
Why would a buyer choose the MDS02N-12N over a non-isolated compact converter?
A main differentiator is its 6KVDC input-to-output isolation with reinforced insulation in a compact SIP7 package. Buyers comparing isolated versus non-isolated options may choose this model when safety approvals, isolation performance, and small size are more important than using a basic low-cost converter.
